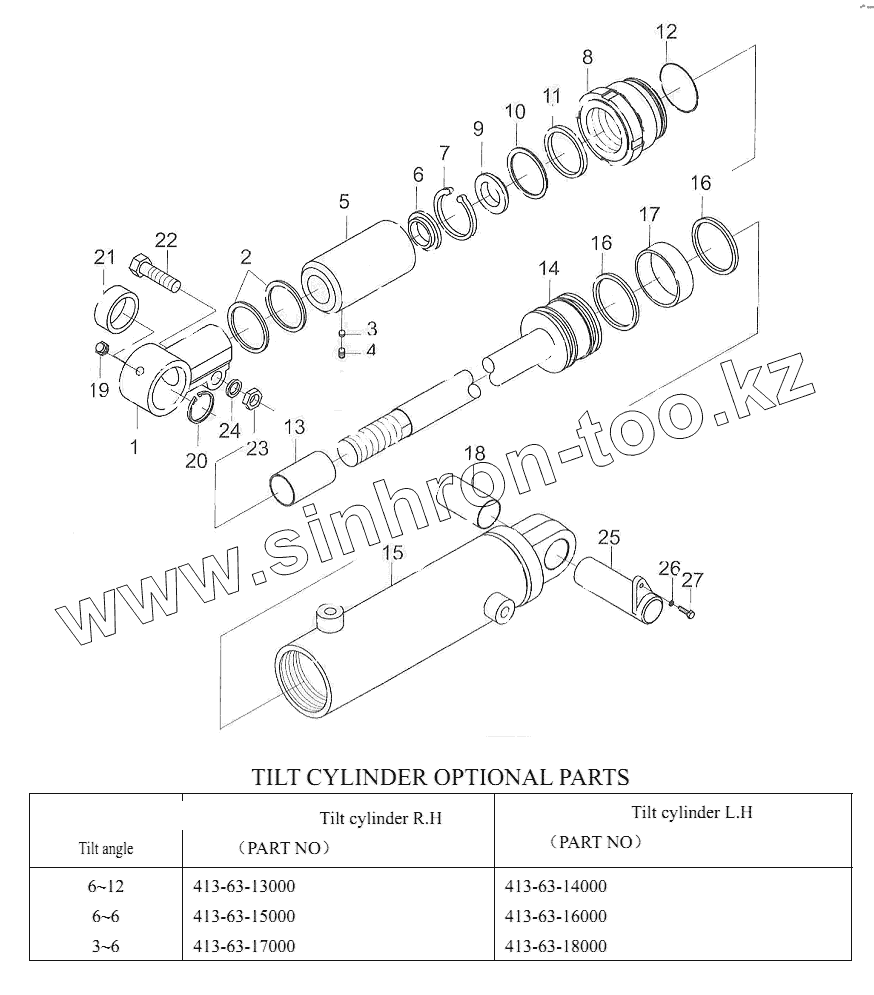

Каталог запасных частей к технике: Shantui Погрузчик вил. 2-2.5t. TILT CYLINDER
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
13
14
15
15
15
15
16
16
16
17
17
18
18
19
20
21
22
23
24
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | D20B8-52011 | Ear ring | |
| 2 | 23658-52101 | Shim | |
| 3 | 23658-52401 | Plug | |
| 4 | B1830-10010 | Screw | |
| 5 | HRD20B8502 | Spacer | |
| 6 | REF341310 | Seal, dust | |
| 7 | B6050-00052 | Ring, snap | |
| 8 | D20B8-52021 | Guide, sleeve | |
| 9 | 23678-54021 | Ring, snap | |
| 10 | REF340216 | Snap ring | |
| 10 | 23678-54001 | Shim | |
| 11 | REF340213 | Yx-ring seal | |
| 11 | 22228-50153A | U-ring | |
| 12 | Z6003-07003 | O-ring | |
| 13 | REF340270 | Bushing | |
| 13 | 23678-54012 | Bushing | |
| 14 | D20B8-50201 | Body, piston assy | |
| 15 | HRH22N8502 | Tube, cylinder | |
| 15 | H22N8-50221 | Tube, cylinder | |
| 15 | HRH22N8502 | Tube, cylinder | |
| 15 | H22N8-50231 | Tube, cylinder | |
| 16 | REF340214 | Yx-ring | |
| 16 | 23678-55001 | Yx-ring | |
| 17 | REF341311 | Wearing | |
| 17 | 23678-52051 | Wearing | |
| 18 | REF340270 | Bushing | |
| 18 | 63626-23071 | Bushing | |
| 19 | Q700B01 | Fitting grease | |
| 20 | B6050-00047 | Ring snap | |
| 21 | D20B8-50211 | Bushing | |
| 22 | B0230-14055 | Bolt | |
| 23 | B4123-00014 | Nut | |
| 24 | B5050-00014 | Washer |
