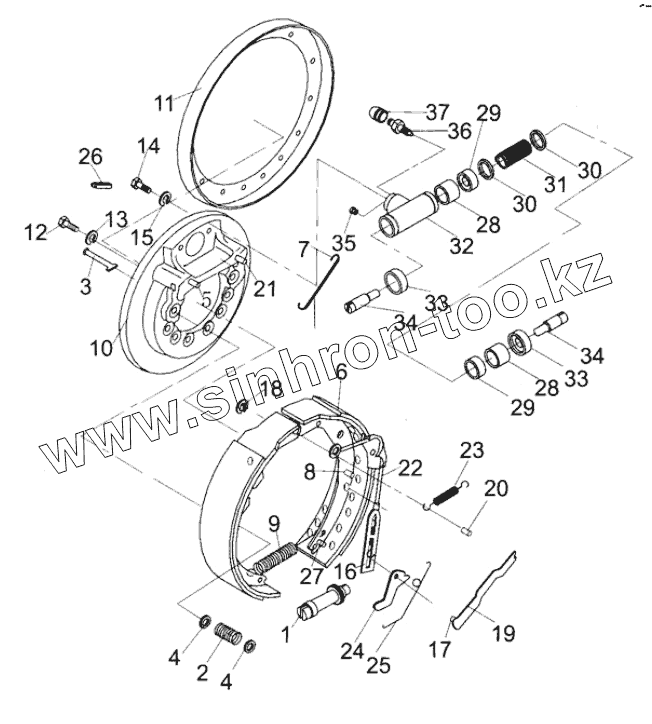

Каталог запасных частей к технике: Shantui Погрузчик SF50/SF60/SF70. WHEEL BRAKE
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 25783-71002 | 25783-71002 | Wheel brake r.h. Assy | |
| Spring | Spring | Spring | |
| Cup | Cup | Cup | |
| Washer | Washer | Washer | |
| Piston | Piston | Piston | |
| BrakingPump | BrakingPump | Dynamic braking points pump | |
| Pump | Pump | Steering pump | |
| 25783-71102 | 25783-71102 | Wheel brake l.h. Assy | |
| 1 | Q50KD005.01 | Adjuster assy | |
| 2 | Q50KD005.02 | Spring | |
| 3 | Q50KD005.03 | Pin,shoe hold down | |
| 4 | Q50KD005.04 | Cup,shoe hold down | |
| 5 | Q50KD005.05 | Pin | |
| 6 | Q50KD005.06 | Shoe pin&lining assy | |
| 7 | Q50KD005.07 | Spring | |
| 8 | Q50KD005.08 | Pin | |
| 9 | Q50KD005.09 | Spring | |
| 10 | Q50KD005.10 | Backboard,brake | |
| 11 | Q50KD005.11 | Sheald dust | |
| 12 | Q50KD005.12 | Bolt | |
| 13 | GB/T93-86 | Washer, lock | |
| 14 | GB/T5782-86 | Bolt | |
| 15 | GB/T93-86 | Washer, lock | |
| 16 | Q50KD005.13 | Spring joint unit | |
| 17 | GB/T91-86 | Pin | |
| 18 | Q50KD005.14 | Washer | |
| 19 | Q50KD005.15 | Link | |
| 20 | Q50KD005.16 | Pin | |
| 21 | Q50KD005.17 | Pin | |
| 22 | Q50KD005.18 | Lever | |
| 23 | Q50KD005.19 | Spring | |
| 24 | Q50KD005.20 | Lever | |
| 25 | Q50KD005.21 | Spring | |
| 26 | Q50KD005.22 | Cover, adjusting hole | |
| 27 | Q50KD005.23 | Pin | |
| 28 | Q50KD005.24 | Vacuum brake |
