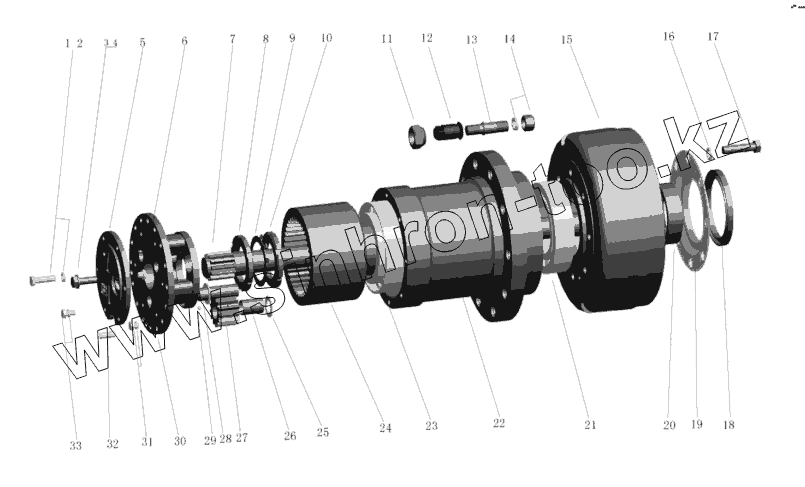

Каталог запасных частей к технике: Shantui Погрузчик SF50/SF60/SF70. The wheel assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| JB/T982-1977 | JB/T982-1977 | Combined washer | |
| JB982-1977 | JB982-1977 | Combined washer | |
| 1 | GB/T5783-2000 | Bolt | |
| 2 | GB/T93-1987 | Washer | |
| 3 | GB/T5785-2000 | Bolt | |
| 4 | GB/T93-1987 | Washer | |
| 5 | CCQ720.3-16 | Wheel cover | |
| 6 | CCQ720.3-10 | The planet wheel carrier | |
| 7 | CCQ730.3-3 | Semi axis | |
| 8 | CCQ720.3-6 | Lock nut | |
| 9 | CCQ720.3-7 | Thrust washer | |
| 10 | CCQ720.3-6 | Lock nut | |
| 11 | CCQ720-3/10 | The outer nut | |
| 12 | CCQ720-2/-9 | Inner nut | |
| 13 | CCQ720-1/-8 | Rim bolt | |
| 14 | GB/T6171-2000 | Nut | |
| 15 | CCQ730.3-1 | Brake hub | |
| 16 | GB/T93-1987 | Washer | |
| 17 | CCQ720.3-2 | Bolt | |
| 18 | GB/T9877.1-1988 | Ring | |
| 19 | CCQ720.3-3 | Oil baffle disc | |
| 20 | CCQ720.3-4 | Oil seal seat | |
| 21 | GB/T297-1994 | Bearing | |
| 22 | CCQ730.3-2 | Hub | |
| 23 | GB/T297-1994 | Bearing | |
| 24 | CCQ720.3-9 | The inner gear ring | |
| 25 | CCQ720.3-15 | Baffle | |
| 26 | CCQ720.3-12 | Bush | |
| 27 | CCQ720.3-14 | The planet wheel | |
| 28 | CCQ720.3-11 | Planet wheel axle | |
| 29 | GB/T308-2002 | Steel ball | |
| 30 | CCQ720.3-10 | The planet wheel carrier | |
| 31 | JB1000-1977 | Plug | |
| 32 | GB/T119.2-2000 | Pin | |
| 33 | 75500842 | Plug |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
