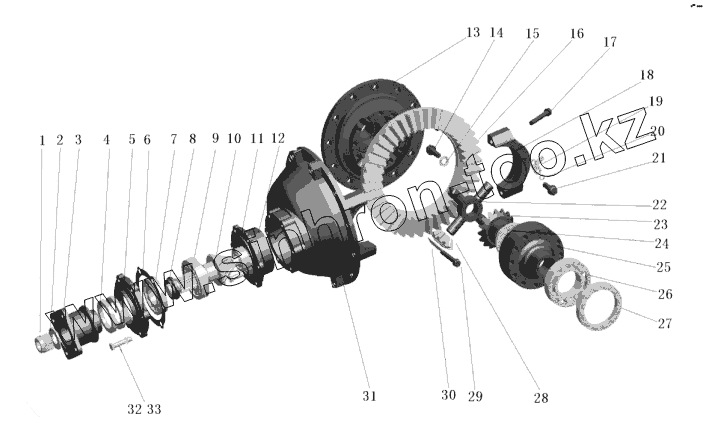

Каталог запасных частей к технике: Shantui Погрузчик SF50/SF60/SF70. Main reducer assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| CZQ1820.1-11 | CZQ1820.1-11 | Adjusting pad | |
| 1 | GB/T889.2-2000 | Nut | |
| 2 | ZL30-H.1-1 | Washer | |
| 3 | CCQ730.1.1 | Flange assembly | |
| 4 | GB/T9877.1-1988 | Ring | |
| 5 | CCQ730.1-1 | Oil seal seat | |
| 6 | CCQ720.1-13 | A seal | |
| 7 | GB/T297-1994 | Bearing | |
| 8 | CCQ720.1-4 | Bearing sleeve | |
| 9 | GB/T297-1994 | Bearing | |
| 10 | CCQ730.1-2 | Spiral bevel gear | |
| 11 | GB/T283-1994 | Bearing | |
| 12 | CCQ720.1-3 | The bearing seat | |
| 13 | CCQ720.1.1-1 | Differential shell | |
| 14 | CCQ720.1-11 | Bolt | |
| 15 | GB/T93-1987 | Washer | |
| 16 | CCQ720.1-10 | Passive spiral bevel gear | |
| 17 | CCQ720.1-9 | Bolt | |
| 18 | CCQ720.1-8 | Differential nut | |
| 19 | CCQ730.1-3 | The locking piece | |
| 20 | GB/T93-1987 | Washer | |
| 21 | GB/T32.1-1988 | Bolt | |
| 22 | CCQ720.1.1-3 | The cross shaft | |
| 23 | CCQ720.1.1-5 | Half axle gear | |
| 24 | CCQ720.1.1-7 | Half axle gear gasket | |
| 25 | CCQ720.1.1-8 | Differential shell | |
| 26 | GB/T297-1994 | Bearing | |
| 27 | CCQ720.1-8 | Differential nut | |
| 28 | CCQ720.1.1-4 | Bevel gear | |
| 29 | CCQ720.1.1-6 | Differential bolt | |
| 30 | CCQ720.1.1-2 | Bevel gear gasket | |
| 31 | CCQ720.1-6 | Bracket | |
| 32 | GB/T5782-2000 | Bolt | |
| 33 | GB/T93-1987 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
