Погрузчик SF30
WORKING PIPELINE ASSY (2/3)

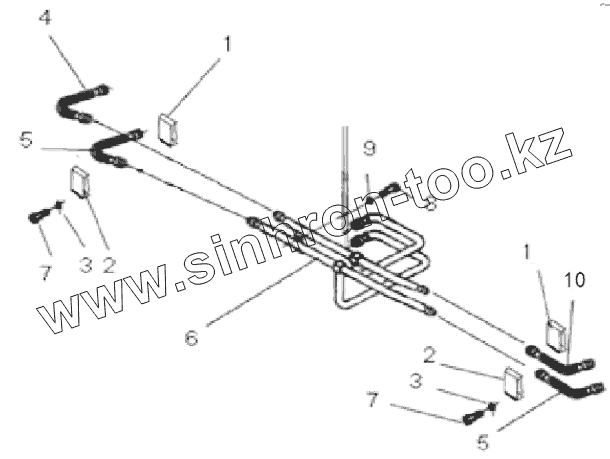

Каталог запасных частей к технике: Shantui Погрузчик SF30. WORKING PIPELINE ASSY (2/3)
