Каталог запасных частей к технике: Shantui Погрузчик SF30. TORQUE CONVERTER TRANSMISSION ASSY (9/9)
1
1
2
2
3
3
4
4
5
5
5
5
6
7
7
7
7
7
7
7
7
7
8
8
9
9
9
9
9
10
10
11
11
12
13
13
14
14
15
16
16
16
17
17
18
18
19
19
19
19
19
19
19
19
19
20
20
21
21
21
22
22
22
23
23

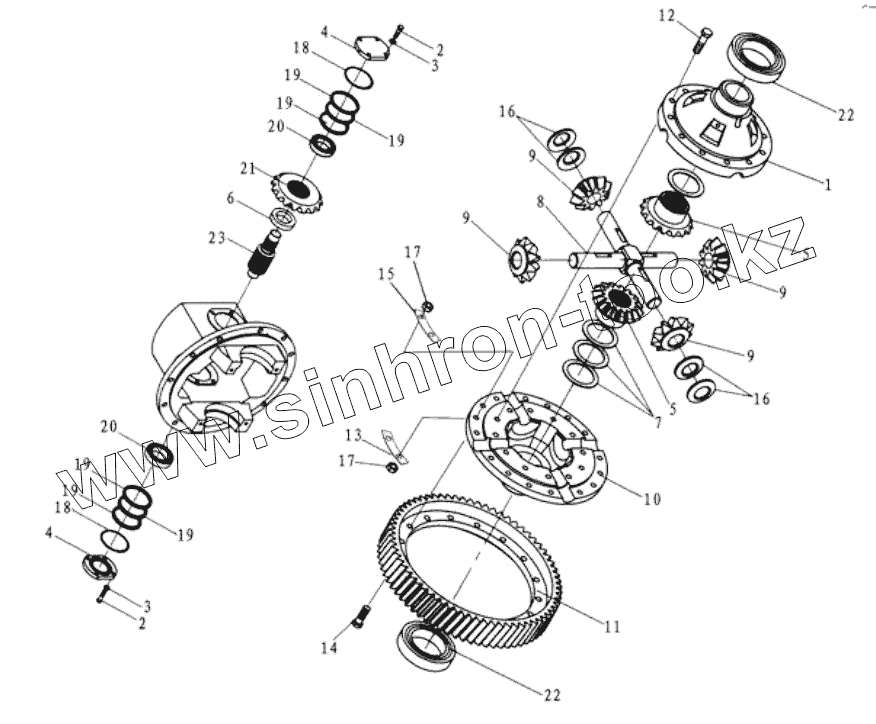

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Y30H-10002 | Case, cross l.h | |
| 1 | YQX25-10001 | Case, cross l.h | |
| 2 | GB5783-86 | Bolt | |
| 3 | GB93-87 | Washer | |
| 4 | Y30H-09001 | Cover, bearing | |
| 5 | YQX25-10007 | Gear, side | |
| 5 | Y30H-10007 | Gear, side | |
| 5 | Y30H-X10007 | Gear, side | |
| 6 | Y30H-09004 | Spacer | |
| 7 | Y30H-10006A | Washer, side | |
| 7 | Y30H-10006E | Washer, side | |
| 7 | Y30H-10006D | Washer, side | |
| 7 | Y30H-10006C | Washer, side | |
| 7 | Y30H-10006B | Washer, side | |
| 7 | YQX25-10006D | Washer, side | |
| 7 | YQX25-10006C | Washer, side | |
| 7 | YQX25-10006B | Washer, side | |
| 7 | YQX25-10006A | Washer, side | |
| 8 | YQX25-10003 | Shaft | |
| 8 | Y30H-10003 | Shaft | |
| 9 | YQX25-10005 | Gear, pinion | |
| 9 | Y30H-10005 | Gear, pinion | |
| 10 | YQX25-10002 | Case, cross r.h | |
| 10 | Y30H-10001 | Case, cross r.h | |
| 11 | YQX25-10010 | Gear, ring | |
| 11 | Y30H-10012 | Gear, ring | |
| 12 | Y30H-10008A | Bolt | |
| 13 | YQX25-10009 | Washer, lock | |
| 13 | Y30H-10011 | Plate, lock | |
| 14 | YQX25-10008A | Bolt | |
| 14 | Y30H-10010A | Bolt | |
| 15 | Y30H-10009 | Plate, lock | |
| 16 | YQX25-10004 | Washer, lock | |
| 16 | Y30H-10004 | Washer, thrust | |
| 17 | GB6171-86 | Nut | |
| 18 | GB1235-76 | O-ring | |
| 19 | Y30H-09002A | O-ring | |
| 19 | Y30H-09002D | Shim | |
| 19 | Y30H-09002C | Shim | |
| 19 | Y30H-09002B | Shim | |
| 20 | GB297-94 | Bearing taper roller | |
| 21 | YQX18-09005 | Bearing, taper roller | |
| 21 | YQX25-09005 | Gear, spiral bevel | |
| 21 | Y30H-09005 | Gear, spiral bevel | |
| 22 | GB276-94 | Bearing ball | |
| 22 | GB276-94 | Bearing ball | |
| 23 | YQX25-09003 | Bearing, ball | |
| 23 | Y30H-09003 | Shaft, gear |
