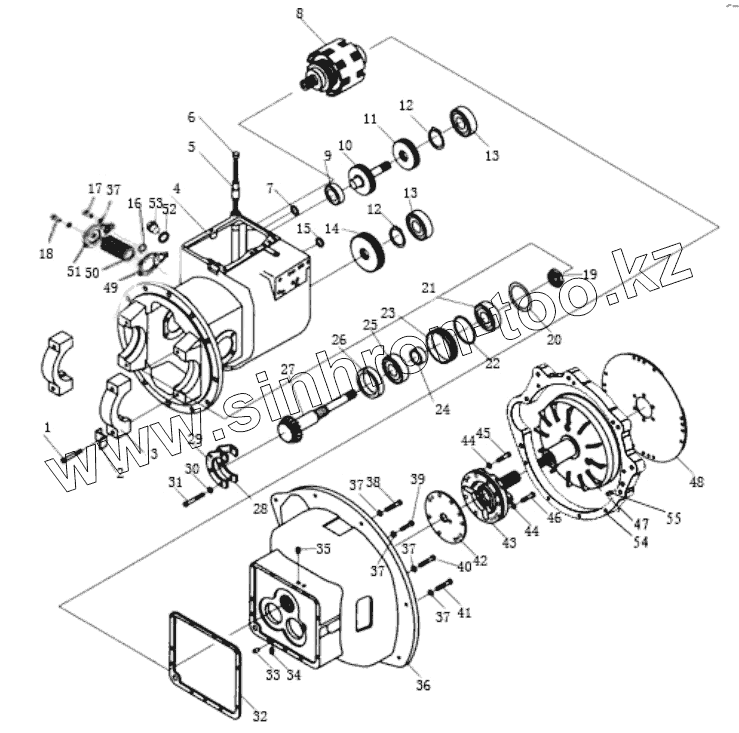

Каталог запасных частей к технике: Shantui Погрузчик SF30. TORQUE CONVERTER TRANSMISSION ASSY (1/9)
1
2
2
3
3
4
4
4
5
6
7
8
8
8
9
10
10
11
11
12
12
13
13
14
14
15
16
17
18
19
20
20
20
20
21
22
23
24
25
26
27
27
27
27
28
28
28
29
30
31
32
33
34
35
36
36
36
36
36
37
37
37
37
37
38
39
40
41
42
43
43
44
44
45
46
47
47
47
48
48
48
49
50
51
52
53
54
55
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Y30H-01010 | Bolt | |
| 2 | YQX25-01008 | Plate, lock | |
| 2 | Y30H-01008 | Plate, lock | |
| 3 | YQX25-01001 | Cap, bearing | |
| 3 | Y30H-01002 | Cap, bearing | |
| 4 | YQX25-01001 | Cap, bearing | |
| 4 | Y30H-01001-3 | Case, mission | |
| 4 | YQX37-01001 | Case, mission | |
| 5 | Y30H-01006A | Pipe oil fill | |
| 6 | Y30H-01007В | Cup | |
| 7 | GB1235-76 | O-ring | |
| 8 | Y30H-02000-2 | Clutch, assy | |
| 8 | Y30H-02000-1 | Clutch, assy | |
| 8 | YQX18-02000 | Clutch, assy | |
| 9 | GB276-94 | Bearing ball | |
| 10 | Y30H-04001 | Shaft, idler | |
| 10 | YQX37-04001 | Shaft, idler | |
| 11 | Y30H-04002 | Gear, idler | |
| 11 | YQX37-04002 | Gear, idler | |
| 12 | GB893.1-86 | Washer | |
| 13 | GB276-94 | Bearing ball | |
| 14 | Y30H-03002 | Gear, output | |
| 14 | YQX37-03002 | Gear, output | |
| 15 | GB1235-76 | O-ring | |
| 16 | GB1235-76 | O-ring | |
| 17 | GB/T70.1 | Screw | |
| 18 | GB/T70.1 | Screw | |
| 19 | Y30H-03009 | Nut | |
| 20 | Y30H-03006D | Shim | |
| 20 | Y30H-03006C | Shim | |
| 20 | Y30H-03006B | Shim | |
| 20 | Y30H-03006A | Shim | |
| 21 | GB297-94 | Bearing taper roller | |
| 22 | GB1235-76 | O-ring | |
| 23 | Y30H-03003 | Retainer, oil seal | |
| 24 | Y30H-03007 | Seal, oil | |
| 25 | GB297-94 | Bearing taper roller | |
| 26 | Y30H-03008 | Collar | |
| 27 | Y30H-03001A | Shaft, output | |
| 27 | Y30H-03001 | Shaft, output | |
| 27 | YQX18-03001 | Shaft, output | |
| 27 | YQX25-03001 | Shaft, output | |
| 28 | Y30H-03005B | Shim | |
| 28 | Y30H-03005C | Shim | |
| 28 | Y30H-03005A | Shim | |
| 29 | Y30H-03004 | Plate, bearing support | |
| 30 | GB93-87 | Washer | |
| 31 | GB5783-86 | Bolt | |
| 32 | Y30H-01004A | Gasket | |
| 33 | GB119-76 | pin | |
| 34 | JB/ZQ4446 | Plug | |
| 35 | JB/ZQ4446 | Plug | |
| 36 | Y30H-01003 | Case, tor-con | |
| 36 | Y30H-01003-1 | Case, tor-con | |
| 36 | Y30H-01003-2 | Case, tor-con | |
| 36 | Y30H-01003J | Case, tor-con | |
| 36 | Y30H-01003G | Case, tor-con | |
| 37 | GB93-87 | Washer | |
| 38 | GB5782-86 | Bolt | |
| 39 | GB5783-86 | Bolt | |
| 40 | GB5782-86 | Bolt | |
| 41 | GB5782-86 | Bolt | |
| 42 | Y30H-05002 | Gasket | |
| 43 | Y30H-05000 | Oil pump assy | |
| 43 | YQX37-05000 | Oil pump assy | |
| 44 | Y30H-07007 | Gasket | |
| 45 | GB5783-86 | Bolt | |
| 46 | GB5783-86 | Bolt | |
| 47 | Y30H-06100 | Tor-con assy | |
| 47 | Y30H-06100-1 | Tor-con assy | |
| 47 | Y30H-06100-2 | Tor-con assy | |
| 48 | Y30H-06200 | Plate | |
| 48 | Y30H-06200-2 | Plate | |
| 48 | Y30H-06200-1 | Plate | |
| 49 | Y30H-01013 | Strainer spacer | |
| 50 | Y30H-01102A | Screen assembly | |
| 51 | Y30H-01101A | Outlay strainer | |
| 52 | JB982 | Combined washer | |
| 53 | Y30H-01011 | Plug | |
| 54 | Y30H-01016 | Flywheel housing | |
| 55 | GB/T119.1 | Pin parallel |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
