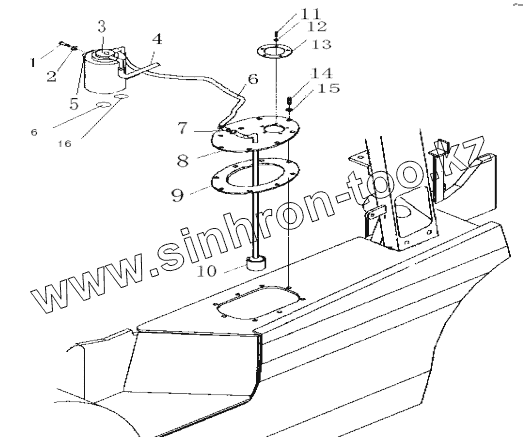

Fuel system
1
01010-50810
Bolt
2
01641-20812
Шайба
3
401-04-07000
Leachier
4
07270-00880
Hose
5
401-04-09000
Bracket
6
01580-10605
Гайка
7
07280-01620
Хомут
8
401-04-06000
Plate
9
411-04-00003
Packing
10
411-04-02000
Oil filter
11
01235-40512
Bolt
12
01641-20508
Прокладка
13
411-04-00002
packing
14
01010-51025
Болт
15
01643-31032
Шайба
16
01010-50620
Bolt
