Каталог запасных частей к технике: Shantui Погрузчик SF30. AIR CLEANER ASSY SF30/30TC490

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано SD16 (2010) SD16 (вариант) (2014) SD16E (2010) SD16L (2010) SD22 (вариант) (2013) SD32 (вариант) (2011) Shantui SD10YE (2015) Shantui SD16 (2008) Shantui SD22 (2008) Shantui SD23 (2003) Shantui SD23 (вариант) (2013) Shantui SD32 (2005) Shantui SD42-3 (2008) Shantui SG16-3 (2014) Shantui SG18-3 (2014) SL-30W (2010) SL-50W (2013) Каток SR12-5 (2013) Каток SR14M-2 (2012) Каток SR16 (2014) Каток SR18 (2011) Каток SR18M (2010) Каток SR20M (2014) Погрузчик SF15, SF18 (2010) Погрузчик SF30 (2013) Погрузчик SF45T (2013) Погрузчик SF50/SF60/SF70 (2013) Погрузчик вил. 2-2.5t (2010)

Схема > Не выбрано ENGINE MOUNT ENGINE MOUNT ENGINE MOUNT AIR CLEANER ASSY S-SF30/30T (C490, WP2.7, QC490), SF35(490BPG) AIR CLEANER ASSY S-SF30/30T (A495, A498), SF35/35T(495BPG-67), SF38( 495BPG-67) AIR CLEANER ASSY I-SF30(HFC4DA1-G) AIR CLEANER ASSY SF30/30T(4TNE98), SF35(4TNE98) AIR CLEANER ASSY I-SF30/30T (4JG2) AIR CLEANER ASSY S-SF30 (C240) AIR CLEANER ASSY SF38/38T (CA498-97) AIR CLEANER ASSY I-SF30 (25) AIR CLEANER ASSY I-SF30Y, SF35Y (К25, GQ491GP) AIR CLEANER ASSY SF30/30TC490 EXHAUST SYSTEM I-SF30/30T (490BPG-229, 495BPG-512, A498BPG, WP2.7, QC490) EXHAUST SYSTEM I-SF30/30T(HFC4DA1, 4JG2) EXHAUST SYSTEM SF30/30T 4TNE98, SF35 EXHAUST SYSTEM I-SF30/30T (К25), I-SF30Y (К25), SF35Y (К25) EXHAUST SYSTEM I-SF30Y (GQ491GP) EXHAUST SYSTEM I-SF30Y S-SF30/30T (С240) COOLING SYSTEM (DIESEL) S-SF30 (C490BPG-229, A495BPG-512, A498BPG, WP2.7, QC490) COOLING SYSTEM (DIESEL) S-SF30T (490BPG-229, A495BPG-512, A498BPG, WP2.7, QC490) COOLING SYSTEM (DIESEL) S-SF30 (C240) COOLING SYSTEM (DIESEL) S-SF30T (С240) COOLING SYSTEM (DIESEL) I-SF30 (C490, А495, A498BPG, WP2.7, QC490) COOLING SYSTEM (DIESEL) I-SF30T (С490, А495, A498BPG, WP2.7, QC490) COOLING SYSTEM (DIESEL) S-SF30 (CA498-97), SF38 COOLING SYSTEM (DIESEL) СА498-97 S-SF30T, SF38T COOLING SYSTEM (DIESEL) HFC4DA1-G I-SF30 COOLING SYSTEM (DIESEL) 4TNE98 I-SF30, S-SF30, SF35 COOLING SYSTEM (DIESEL) S-SF30T (4TNE98) COOLING SYSTEM (DIESEL) I-SF30, I-SF30Y (К25), SF35Y (К25) COOLING SYSTEM (DIESEL) I-SF30Y (GQ491GP) FUEL SYSTEM I-SF30/30T (495BPG-512, A498BPG, WP2.7, QC490) FUEL SYSTEM I-SF30/30T (HFC4DA1) FUEL SYSTEM I-SF30/30T (4TNE98), I-SF30/30T (4JG2), S-SF30/30T (С420), S-SF30/30T (4TNE98), SF35 FUEL SYSTEM S-SF30/30T(CA498-97), S-SF35/35T(CA498), S-SF38/38T (CA498) FUEL SYSTEM I-SF30/30T (K25) FUEL SYSTEM (LIQUEFIED PETROLEUM GAS) I-SF30Y/30TY (K25, GQ491GP), SF35Y ACCELERATOR PEDAL SF30/30T (C490BPG, A495BPG, A498BPG, WP2.7, QC490) ACCELERATOR PEDAL SF30/30T (4TNE98), S-SF30/30T (C240), SF35, SF38/38T ACCELERATOR PEDAL I-SF30 (HFC4DA1-G), I-SF30/30T/(4JG2) ACCELERATOR PEDAL I-SF30 (К25), I-SF30Y (К25, GQ491GP), SF35Y (К25) CLUTCH TYPE TRANSMISSION ASSY (C490BPG, A495BPG-512,A498BPG, WP2.7, QC490 I-SF30T, S-SF30T CA498 S-SF30T) CLUTCH TYPE TRANSMISSION ASSY (4TNE98, C240 S-SF30T) CLUTCH TYPE TRANSMISSION ASSY (1/5) CLUTCH TYPE TRANSMISSION ASSY (2/5) CLUTCH TYPE TRANSMISSION ASSY (4/5) CLUTCH TYPE TRANSMISSION ASSY (5/5) CLUTCH TYPE TRANSMISSION ASSY (1/4) CLUTCH TYPE TRANSMISSION ASSY (2/4) CLUTCH TYPE TRANSMISSION ASSY (3/4) CLUTCH TYPE TRANSMISSION ASSY (4/4) TORQUE CONVERTER TRANSMISSION ASSY SF30 (C490BPG, A495BPG-512, A498BPG, WP2.7, QC490 ), S-SF30 (CA498) TORQUE CONVERTER TRANSMISSION ASSY I-SF30 (HFC4DA1-G, 4JG2, C240, K25), I-SF30Y (K25), S-SF30 (4TNE98) TORQUE CONVERTER TRANSMISSION ASSY I-SF30 (4TNE98, C240) ,SF30 (CA498) TORQUE CONVERTER TRANSMISSION ASSY I-SF30Y (GQ491GP) TORQUE CONVERTER TRANSMISSION ASSY (1/8) TORQUE CONVERTER TRANSMISSION ASSY (2/8) TORQUE CONVERTER TRANSMISSION ASSY (3/8) TORQUE CONVERTER TRANSMISSION ASSY (4/8) TORQUE CONVERTER TRANSMISSION ASSY (5/8) TORQUE CONVERTER TRANSMISSION ASSY (6/8) TORQUE CONVERTER TRANSMISSION ASSY (7/8) TORQUE CONVERTER TRANSMISSION ASSY (8/8) TORQUE CONVERTER TRANSMISSION ASSY (1/9) TORQUE CONVERTER TRANSMISSION ASSY (2/9) TORQUE CONVERTER TRANSMISSION ASSY (3/9) TORQUE CONVERTER TRANSMISSION ASSY (4/9) TORQUE CONVERTER TRANSMISSION ASSY (5/9) TORQUE CONVERTER TRANSMISSION ASSY (6/9) TORQUE CONVERTER TRANSMISSION ASSY (7/9) TORQUE CONVERTER TRANSMISSION ASSY (8/9) TORQUE CONVERTER TRANSMISSION ASSY (9/9) FRAME ASSY S-SF30/30T (C490BPG-229, A495BPG-512, A498BPG, WP2.7, QC490) FRAME ASSY S-SF30/S-SF30T (C240), SF35/35T(C240), SF38(C240) FRAME ASSY S-SF30/30T (CA498-97, 4TNE98) FRAME ASSY I-SF30 (HFC4DA1-G), I-SF30/30T (4JG2) FRAME ASSY 4TNE98 I-SF30, SF35 FRAME ASSY I-SF30 (К25), I-SF30, I-SF30Y (К25, GQ491GPX SF35Y (K25), SF38T (СА498-97) FRAME ASSY I-SF30, I-SF30T (C490BPG) DRIVE AXLE DRIVE AXLE DRIVE AXLE WHEEL BRAKE DRIVE WHEEL STEERING WHEEL STEERING AXLE STEERING AXLE STEERING CYLINDER ASSY STEERING SYSTEM SPEED CONTROL TRANSMISSION CONTROL ASSY STOPPING BAKING CONTROL ASSY BRAKE & CLUTCH CONTROL ASSY BRAKE & INCHING CONTROL ASSY WORK EQUIPMENT CONTROL ASSY ENGINEHOOD ASSY ENGINEHOOD ASSY OIL TANK OIL TANK I-SF30Y/30TY (GQ491GP) WORKING PIPELINE ASSY I-SF30/30T(495, A498, WP2.7, QC490) WORKING PIPELINE ASSY I-SF30/30T(4JG2, HFC4DA1-G, C240, K25) WORKING PIPELINE ASSY SF38/38T (495) WORKING PIPELINE ASSY I-SF30/30T (4TNE), SF35 WORKING PIPELINE ASSY (1/3) WORKING PIPELINE ASSY (2/3) WORKING PIPELINE ASSY (3/3) TOR/CON OIL COOLING SYSTEM I-SF30 (495, A498, WP2.7, QC490,HFC4DA-G, 4TNE, 4JG2) TOR/CON OIL COOLING SYSTEM I-SF30 (К25), I-SF30Y(K25, GQ491GP) STEERING SYSTEM ASSY HYDRAULIC SYSTEM MAST SF30 HYDRAULIC SYSTEM MAST SF30 HYDRAULIC SYSTEM MAST SF30 HYDRAULIC SYSTEM MAST SF35 HYDRAULIC SYSTEM MAST SF35 FORK ASSY SF30 LIFT BRACKET SF30 LIFT BRACKET SF30 LIFT BRACKET SF30 MAST SF30 MAST SF30 MAST LIFT CYLINDER SF30 FRONT LIFT CLINDER SF30 REAR LIFT CYLINDER FRONT LIFT CYLINDER REAR LIFT CYLINDER TILT CYLINDER SF30 FORK ASSY 3.5TSTD SF35 FORK ASSY 3.5TSTD SF35 LIFT BRACKET SF35 LIFT BRACKET SF35 MAST SF35 MAST SF35 LIFT CYLINDER SF35 FRONT LIFT CYLINDER SF35 REAR LIFT CYLINDER SF35 TILT CYLINDER SF35 ELECTRICAL SYSTEM (1/4) Применимо к SF30 (с Xinchai C490, A495, A498, WP2.7, Quanchai QC490) ELECTRICAL SYSTEM (1/4) Применимо к S-SF30T (Dai Chai CA498-97, Yanmar 4TNE98), I-SF30 (HFC4DA1-G) ELECTRICAL SYSTEM (1/4) Применимо к S-SF30/30T (Isuzu C240), I-SF30 / 30T (Isuzu 4JG2). ELECTRICAL SYSTEM (1/4) Применимо к I-SF30/30Y (Nissan K25), I-SF30Y (Guangqing GQ491GP), SF35Y ELECTRICAL SYSTEM (2/4) Применимо к SF30 (с Xinchai C490, A495, A498, Yangchai WP2.7, Quanchai QC490) ELECTRICAL SYSTEM (3/4) ELECTRICAL SYSTEM (4/4) DRIVE CANOPY DRIVE CANOPY DRIVE CANOPY DRIVE CANOPY DRIVE CANOPY DRIVE CANOPY DRIVE CANOPY DRIVE CANOPY OPERATOR’S SEAT COUNTER WEIGHT MARKS AND PLATES

1

2

3

4

4

5

6

7

7

8

8

9

10

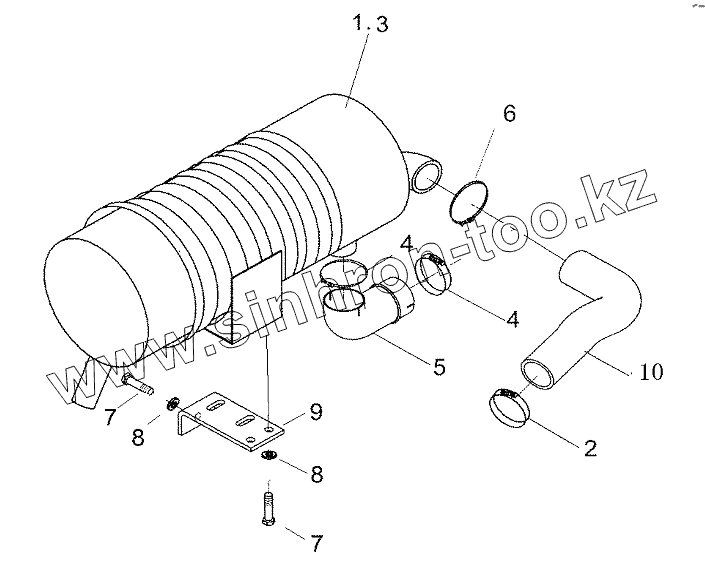

Позиция на иллюстрации	Заводской номер детали		Название детали
1	411-01-01000		air cleaner
2	07280-08029		Зажим трубы
3	K1025S-0100		Filter
4	07280-07229		Clamp
5	411-01-00030		Hose
6	07280-07429		Хомут
7	01010-50816		Болт
8	01643-30823		Шайба
9	411-01-00003		Bracket
10	411-01-00027		Hose
