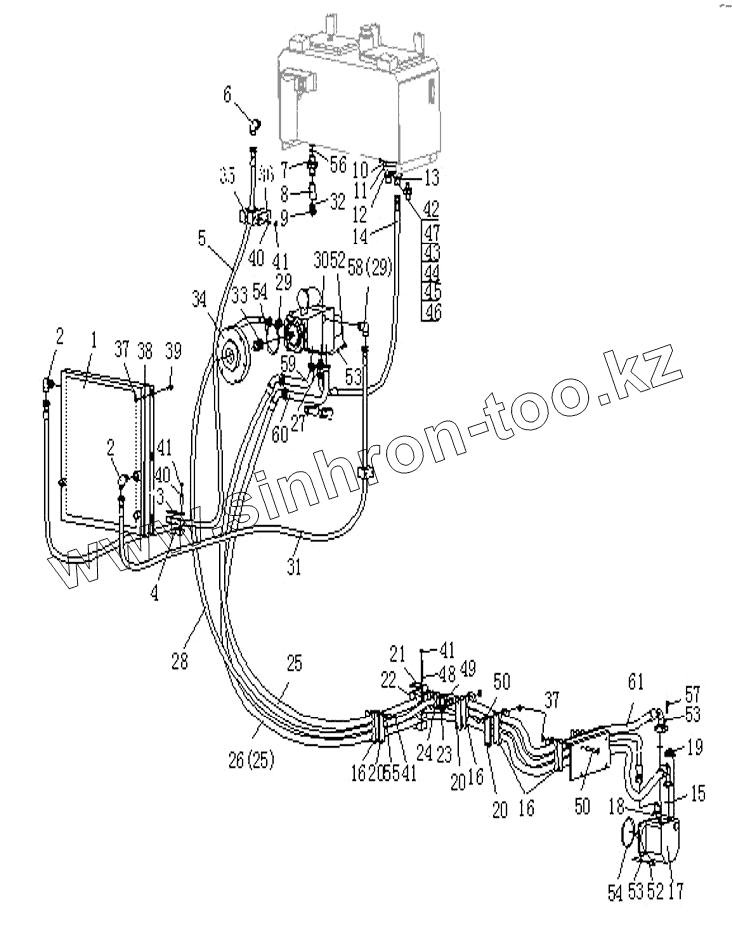

Каталог запасных частей к технике: Shantui Каток SR20M. HYDRAULIC VIBRATORY SYSTEM (SHANCHAI,WEICHAI)
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
16
17
18
19
20
20
20
21
22
23
24
25
25
26
27
28
29
29
30
31
32
33
34
35
36
37
37
38
39
40
40
41
41
41
41
42
43
44
45
46
47
48
49
50
50
52
52
53
53
53
54
54
55
56
57
58
59
60
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 263-65-00002 | Oil cooler | |
| 2 | 263-65-00001 | Nipple | |
| 3 | 263-75-00010 | Plate | |
| 4 | 263-75-00011 | Rubber plate | |
| 5 | 263-65-00004 | Hose assy | |
| 6 | 263-65-00007 | Adapter | |
| 7 | 263-65-00025 | Adapter | |
| 8 | 263-65-04000 | Valve | |
| 9 | 263-65-00026 | Plug | |
| 10 | 263-65-02000 | Oil filter | |
| 11 | 263-65-00008 | Flange | |
| 12 | 263-65-00009 | Flange | |
| 13 | 263-65-00010 | Adapter | |
| 14 | 263-65-00011 | Hose | |
| 15 | 07000-13032 | Кольцо | |
| 16 | 263-65-00012 | Rubber-plate | |
| 17 | 263-65-03000 | Vibration motor | |
| 18 | 263-65-00022 | Adapter | |
| 19 | 263-65-00021 | Flange | |
| 20 | 263-65-00013 | Plate | |
| 21 | 263-65-00014 | Plate | |
| 22 | 263-65-00015 | Rubber-plate | |
| 23 | 263-65-00016 | Plate | |
| 24 | 263-65-00017 | Rubber plate | |
| 25 | 263-65-00018 | Hose assy | |
| 26 | 263-65-00019 | Hose assy | |
| 27 | 263-65-00029 | Adapter | |
| 28 | 263-65-00020 | Hose assy | |
| 29 | 263-65-00028 | Adapter | |
| 30 | 263-65-01000 | Vibration and steering pump | |
| 31 | 263-65-00003 | Hose assy | |
| 32 | 263-65-00027 | Washer | |
| 33 | 263-65-00005 | Spline housing | |
| 34 | 263-65-00006 | Mounting plate | |
| 35 | 263-65-00023 | Rubber plate | |
| 36 | 263-65-00024 | Plate | |
| 37 | 01580-11008 | Гайка | |
| 38 | 01643-31032 | Шайба | |
| 39 | 01010-51025 | Болт | |
| 40 | 01120-51060 | Double end bolt | |
| 41 | 01582-11008 | Гайка | |
| 42 | 01643-30623 | Прокладка | |
| 43 | 01010-50616 | Болт | |
| 44 | 01010-50820 | Болт | |
| 45 | 01643-30823 | Шайба | |
| 46 | 07000-12120 | O-ring | |
| 47 | 07000-12085 | Кольцо круглого сечения | |
| 48 | 01141-51035 | Double end bolt | |
| 49 | 01010-50855 | Bolt | |
| 50 | 01010-51085 | Болт | |
| 52 | 01010-51235 | Болт | |
| 53 | 01643-31232 | Шайба | |
| 54 | 07000-12125 | O-ring | |
| 55 | 01140-51085 | Double end bolt | |
| 56 | 07005-02416 | Уплотнительная прокладка | |
| 57 | 02010-70744 | Bolt | |
| 58 | 263-65-00030 | Nipple | |
| 59 | 263-65-05000 | Tube | |
| 60 | 263-65-06000 | Tube | |
| 61 | 222-62-00004 | Protect ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
