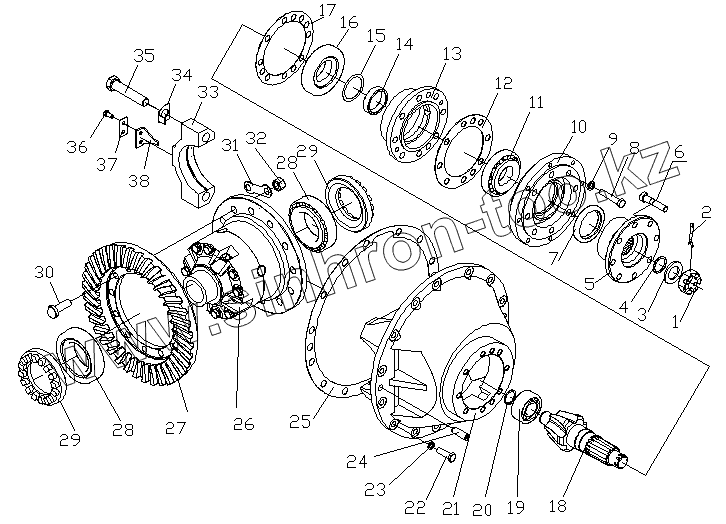

Каталог запасных частей к технике: Shantui Каток SR18M. MAIN DRIVE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
30
31
32
33
34
35
36
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 263-18-02101 | Lock | |
| 2 | GB/T91-570 | Cotter pin | |
| 3 | 263-18-02102 | Washer | |
| 4 | GB3452.1 | O-ring | |
| 5 | 253-18-02101 | Input flange unit | |
| 6 | 253-18-02102 | Bolt | |
| 7 | GB13871 | Oil seal | |
| 8 | GB/T5782 | Bolt | |
| 9 | GB/T93-14 | Washer | |
| 10 | 263-18-02104 | End –frame | |
| 11 | GB/T297-31310 | Bearing | |
| 12 | 263-18-02105 | Washer | |
| 13 | 263-18-02106 | Bearing block | |
| 14 | 263-18-02107 | Spacer | |
| 15 | 263-18-02108 | Adjusting shim | |
| 16 | GB/T297-31311 | Bearing | |
| 17 | 263-18-02109 | Adjusting shim | |
| 18 | 263-18-02110 | Initiative bevel gear | |
| 19 | GB/T283 | Bearing | |
| 20 | GB/T894-30 | Retaining ring | |
| 21 | 263-18-02111 | Bevel bear support | |
| 22 | BoltM12x40 | Bolt | |
| 23 | GB/T93-12 | Washer | |
| 24 | GB/T120.1 | Column pin | |
| 25 | 263-18-02112 | Paper washer | |
| 26 | 263-18-02600 | Different assy | |
| 27 | 263-18-02113 | Gear | |
| 28 | GB/T297-32215 | Bearing | |
| 29 | 263-18-02114 | Adjusting nut | |
| 30 | 263-18-02115 | Bolt | |
| 31 | 263-18-02116 | Check washer | |
| 32 | GB/T6176 | Nut | |
| 33 | 263-18-02119 | Shell | |
| 34 | 263-18-02120 | Check washer | |
| 35 | GB/T5785 | Bolt | |
| 36 | GB/T5783 | Bolt | |
| 37 | 263-18-02118 | Check washer | |
| 38 | 263-18-02117 | Check washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
