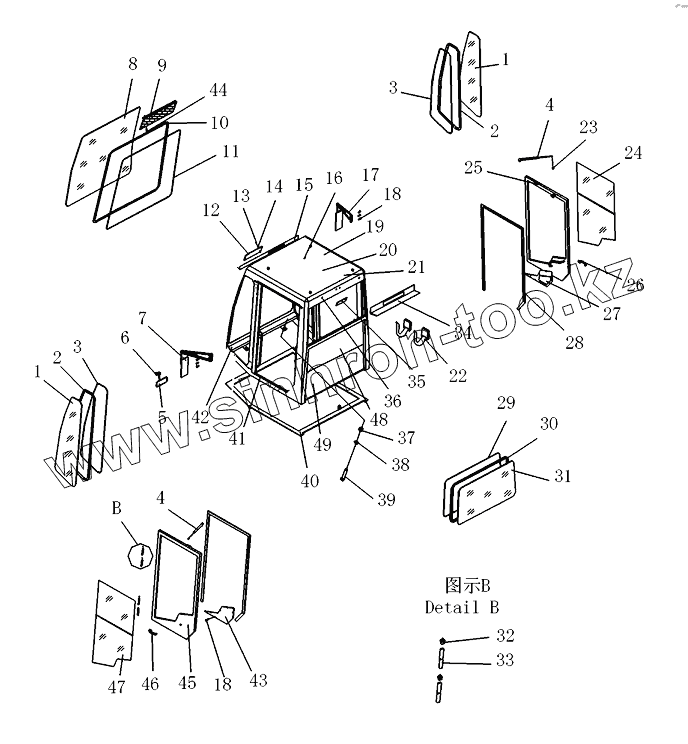

Каталог запасных частей к технике: Shantui Каток SR16. CAB ASSY
1
1
2
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
39
40
41
42
43
44
45
46
47
48
49
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 263-56-00006 | Glass | |
| 2 | 263-56-00004 | Pressure strip | |
| 3 | 263-56-00005 | Pressure strip | |
| 4 | 263-56-14000 | Support | |
| 5 | 263-56-12000 | Reflector mirror | |
| 6 | 01235-40520 | Bolt | |
| 7 | 263-56-01000 | Rearview mirror | |
| 8 | 263-56-00007 | Glass | |
| 9 | 263-56-11000 | Cover | |
| 10 | 263-56-00008 | Pressure strip | |
| 11 | 263-56-00009 | Pressure strip | |
| 12 | 263-56-00013 | Cover | |
| 13 | 01010-50825 | Болт | |
| 14 | 01643-30823 | Шайба | |
| 15 | 263-56-13000 | Font-cover | |
| 16 | 09416-10200 | Bolt | |
| 17 | 263-56-03000 | Rearview mirror | |
| 18 | 01010-50630 | Bolt | |
| 19 | 263-56-02000 | Frame | |
| 20 | 263-56-00015 | Up-cover | |
| 21 | 263-56-00014 | Adiabatic-cover | |
| 22 | 263-56-16000 | Hook | |
| 23 | 01580-10806 | Гайка | |
| 24 | 263-56-08000 | Door | |
| 25 | 263-56-06000 | Door | |
| 26 | 263-56-10000 | Lock | |
| 27 | 263-56-18000 | Box | |
| 28 | 263-56-00017 | Seal | |
| 29 | 263-56-00003 | Pressure strip | |
| 30 | 263-56-00002 | Pressure strip | |
| 31 | 263-56-00001 | Glass | |
| 32 | 07021-01021 | Oil-cup | |
| 33 | 263-56-04000 | Hinge | |
| 34 | 263-56-15000 | Rear-cover | |
| 35 | 263-56-00016 | Cover | |
| 36 | 263-56-00012 | Cover | |
| 37 | 01580-11613 | nut | |
| 38 | 01643-31645 | Шайба | |
| 38 | 01643-31643 | Washer | |
| 39 | 01010-51690 | Bolt | |
| 40 | 263-56-00010 | Plank | |
| 41 | 263-56-00018 | Cover | |
| 42 | 263-56-00019 | Cover | |
| 43 | 263-56-17000 | Box | |
| 44 | 01235-40512 | Bolt | |
| 45 | 263-56-05000 | Door | |
| 46 | 263-56-09000 | Lock | |
| 47 | 263-56-07000 | Door.l.h | |
| 48 | 263-56-00021 | Heat-insulation course | |
| 49 | 263-56-00022 | Heat-insulation course |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
