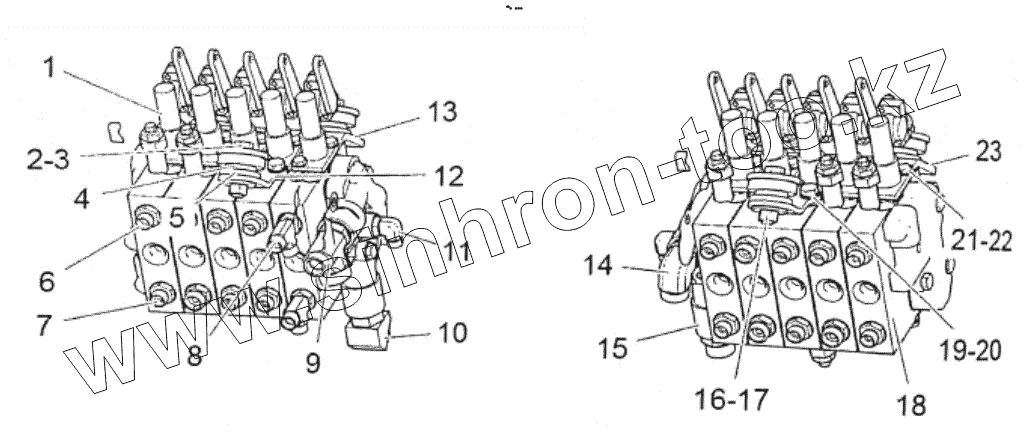

Каталог запасных частей к технике: SEM921. Valve Group
1
2
3
4
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 5522589 | 5522589 | Right valve | |
| 5362350 | 5362350 | Right valve | |
| 5364481 | 5364481 | Right valve | |
| 5522576 | 5522576 | Right valve | |
| 5522590 | 5522590 | Left valve | |
| 5522591 | 5522591 | Left valve | |
| 5522592 | 5522592 | Left valve | |
| 5483680 | 5483680 | Left valve | |
| 5522577 | 5522577 | Left valve | |
| 1 | 3701262 | Implement valve | |
| 2 | 5383107 | Bolt | |
| 3 | 5184418 | Washer | |
| 4 | 5404627 | Gasket | |
| 5 | 5404631 | Shock absorber | |
| 6 | 5559419 | Transition joints | |
| 7 | 5190341 | Transition joints | |
| 8 | 5559420 | Transition joints | |
| 9 | 5564664 | Transition joints | |
| 10 | 5326352 | Transition joints | |
| 11 | 5209536 | Transition joints | |
| 12 | 5559193 | Retaining plate | |
| 13 | 5559195 | Valve bracket assembly | |
| 14 | 5190351 | Transition joints | |
| 15 | 5326352 | Transition joints | |
| 16 | 5186586 | Nut | |
| 17 | 5189738 | Washer | |
| 18 | W42022000 | Implement valve | |
| 19 | B040911025 | Bolt | |
| 20 | MG19014007 | Spacer sleeve | |
| 21 | B040911020 | Bolt | |
| 22 | B060461002 | Washer | |
| 23 | 5559191 | Valve bracket assembly |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
