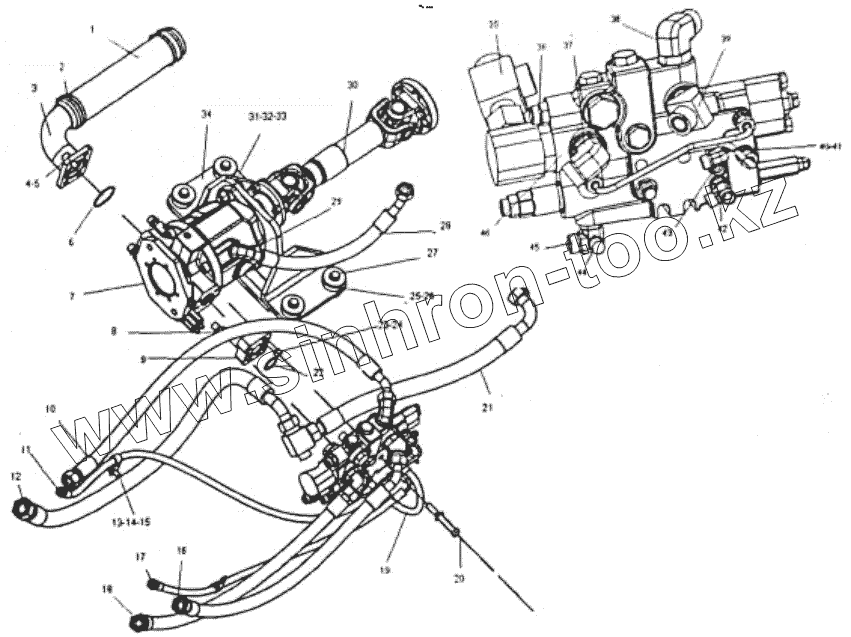

Каталог запасных частей к технике: SEM919. Working Device Hydraulic System

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
44
45
46
Позиция на иллюстрации Заводской номер детали Название детали
1 5338908 Implement pump suction oil pipe
2 5201140 Hose clamp
3 5404620 Working pump oil suction plate
4 5182319 Bolt
5 5184418 Washer
6 5201132 O-ring
7 5337988 Piston pump
8 5559430 Transition joints
9 5404621 Oil block
10 5572943 High pressure hose as
11 5338904 High pressure hose as
12 5572885 High pressure hose as
13 5190429 One-pipe clip
14 5182309 Bolt
15 5184417 Washer
16 5572866 High pressure hose as
17 5572423 High pressure hose as
18 5572719 High pressure hose as
19 5572341 High pressure hose as
20 5246908 Bolt
21 5572822 High pressure hose assembly
22 5383140 O-ring
23 5649631 Threaded screw
24 5189731 Washer
25 5404627 Gasket
26 5190398 Shock absorber
27 5189597 Bolt
28 5572623 High pressure hose as
29 5209531 Transition joints
30 MG19013001 Front transfer shaft
31 5383098 Bolt
32 5186588 Nut
33 5184420 Washer
34 5559177 Working pump bracket
35 5564660 Transition joints
36 5564670 Transition joints
37 5190351 Transition joints
38 5564654 Transition joints
39 5564655 Transition joints
40 5564657 Transition joints
41 5564658 Transition joints
42 5564659 Transition joints
43 5190333 Connection fitting
44 5190336 Pressure tap
44 5190318 Adapter
45 5190368 Transition joints
46 3701290 Combination valve
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
