Каталог запасных частей к технике: SEM919. Working Device Hydraulic System

Тип техники

Марка

Модель

Схема

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

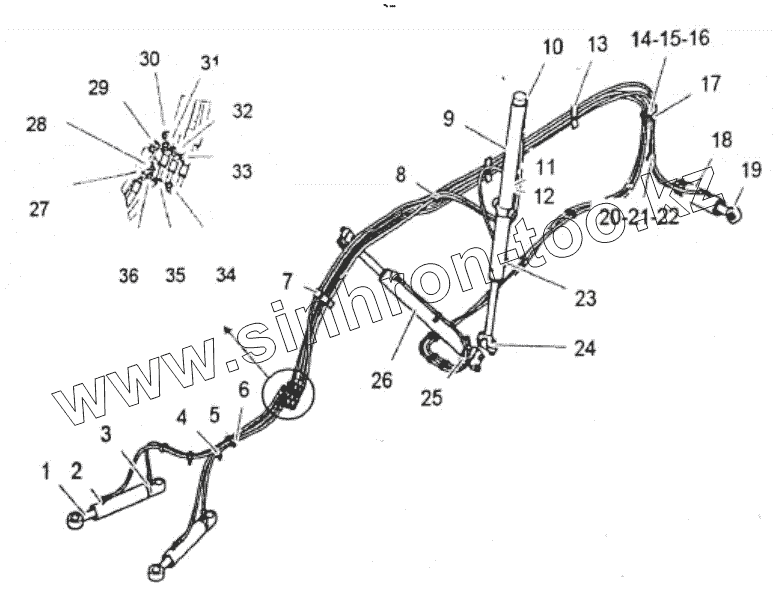

Позиция на иллюстрации	Заводской номер детали		Название детали
1	5338009		Articulation cylinder
2	5559427		Transition joints
3	5559422		Transition joint
4	5649635		Bolt
5	5182310		Bolt
6	5189848		Dual hose clip
7	5572510		Platen
8	5182311		Bolt
9	5337985		Lifting cylinder
10	5559415		Transition joints
11	5573327		Single slip
12	5210479		Single slip
13	5572462		Clamping plate
14	5246918		Bolt
15	5559175		Fixed clip
16	5404617		Sleeve
17	5404622		Boot
18	5564767		Cylinder-wheel lean
19	4314613		Oil cup
20	5182309		Bolt
21	5186585		Nut
22	5184417		Washer
23	5559421		Transition joints
24	5216759		Oil cup
25	5404618		Sleeve
26	5564763		Cylinder-centershift
27	5572753		High pressure hosa as
28	5572622		High pressure hosa as
29	5572725		High pressure hosa as
30	5572705		High pressure hosa as
31	5573139		High pressure hosa as
32	5573077		High pressure hosa as
33	5338881		High pressure hose as
34	5338877		High pressure hose as
35	5338885		High pressure hosa as
36	5573150		High pressure hosa as

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
