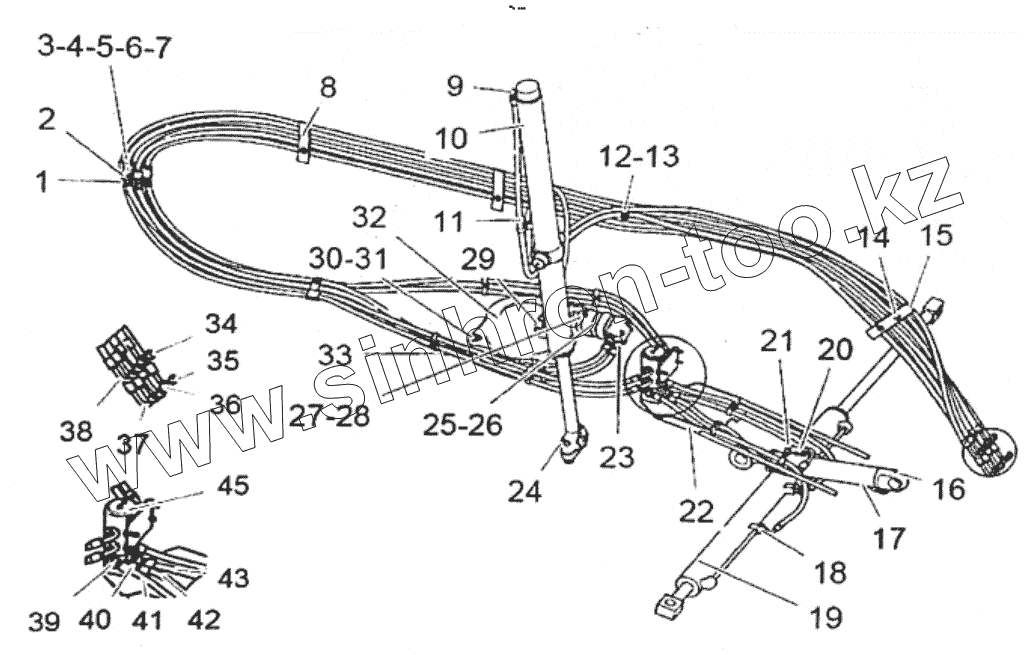

Каталог запасных частей к технике: SEM919. Working Device Hydraulic System

Тип техники

Марка

Модель

Схема

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

45

Позиция на иллюстрации	Заводской номер детали		Название детали
1	5559187		Boot
2	5404622		Boot
3	B040811075		Bolt
4	5337885		Fixed clip
5	5404618		Sleeve
6	5559175		Fixed clip
7	5404617		Sleeve
8	5572453		Clamping plate
9	5559415		Transition joints
10	5337985		Lifting cylinder
11	5573327		Single slip
12	5182311		Bolt
13	5186585		Nut
14	5182309		Bolt
15	5572509		Clamping plate
16	4314613		Oil cup
17	5564764		Cylinder-blade tip
18	5564665		Transition joints
19	5338026		Blade sideshift cylinder
20	5559428		Transition joints
21	5559427		Transition joints
22	5573174		Bracket gp
23	5564671		Transition joints
24	5216759		Oil cup
25	5337926		Motor
26	5383095		O-ring
27	5649631		Threaded screw
28	5184417		Washer
29	5559421		Transition joints
30	5531347		Threaded screw
31	5184422		Washer
32	W43003000		Rotary worm gear box
33	5210479		Single slip
34	5338895		High pressure hose as
35	5338892		High pressure hose as
36	5338888		High pressure hose as
37	5338877		High pressure hose as
38	5338881		High pressure hose as
39	5190344		Transition joints
40	5407448		Transition joints
41	5338900		High pressure hose as
42	5572492		High pressure hose as
43	5572565		High pressure hose as
45	5564757		Swivel fitting

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
