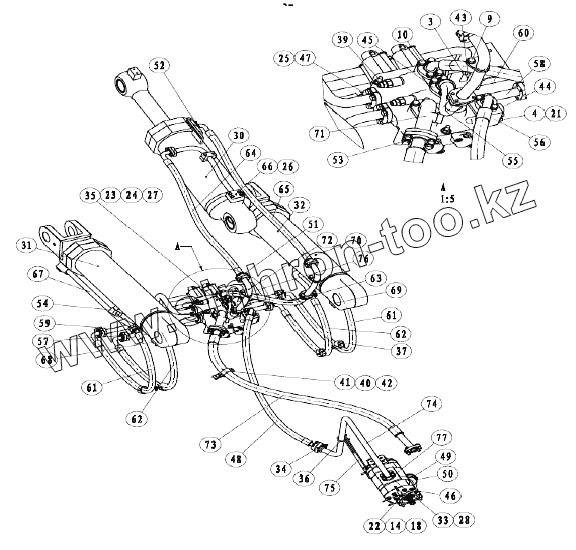

Каталог запасных частей к технике: SEM669C. WORKING DEVICE HYDRAULIC SYSTEM

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
3
4
9
10
14
18
21
22
23
24
25
26
27
28
30
31
32
33
34
35
36
37
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
62
63
63
64
65
66
67
68
69
70
72
73
74
77
Позиция на иллюстрации Заводской номер детали Название детали
3 B040811250 Bolt
4 B040811295 Bolt M12x95
9 B040911225 Bolt
10 B040911235 Bolt
14 B050331211 Nut
18 B060331203 Washer
21 B060461203 Washer
22 B100111235 Stud
23 B160130300 O-ring
24 B160130329 O-ring
25 B160130375 O-ring
26 B160130412 O-ring 41.2x3.55
27 B160130450 O-ring 45x3.55
28 B160130690 O-ring 69x3.55
29 B190120800 Clip
30 W050700003 Tilt cylinder ф21 ox566
31 W051800001 Left lift cylinder 180x759
32 W051900001 Right lift cylinder 180x759
33 W067900000B Gear pump
34 W152200000 Pressure tap
35 W271300000B Working valve 312-2704
36 Z3B20024000 U bolt
37 Z520190070 Clip
38 Z520520480 Bolt 142
39 Z520520490 Bolt
40 Z520522490 Clip i
41 Z520522500 Clip
42 Z520522600 Clip
43 Z5205229100 Clip
44 Z5A20001600 Connection fitting
45 Z5A20004100 Split flange
46 Z5A20202700 Gasket
47 Z5B01901000 Split flange
48 Z5B20001300 High pressure hose assembly
49 Z5B222007 Lower pressure hose
50 Z5B222008 Connection fitting
51 Z610200060 Split flange
52 Z610200080 Split flange
53 Z610200090 Split flange
54 Z610210050 Hose сlip i
55 Z6B01900800 High pressure hose assembly
56 Z6B01901100 Block
57 Z6B01901200 Implement valve big chamber joint tube
58 Z6B01901400 Pipe i
59 Z6B01901600 Implement valve small chamber joint tube
60 Z6B01901800 Pipe ii
61 Z6B01902000 High pressure hose assembly
62 Z6B01902200 High pressure hose assembly
63 Z6B01902400 High pressure hose assembly
64 Z6B01902600 High pressure hose assembly
65 Z6B019078C0 High pressure hose assembly
66 Z6B01903000 Tube
67 Z6B01903200 Left lift cylinder small chamber joint tube
68 Z6B01903400 Left lift cylinder big chamber joint tube
69 Z6B01903600 Right iift cylinder big chamber joint tube
70 Z6B01903800 Right lift cylinder small chamber joint tube
71 Z6B01904000 Working valve fuel return fitting assemblу
72 Z6B019042 Connection fitting
73 Z6B01904500 Oil inlet pipe
74 Z6B207002 Tube assembly
77 Z6B207006 Spl it flange
