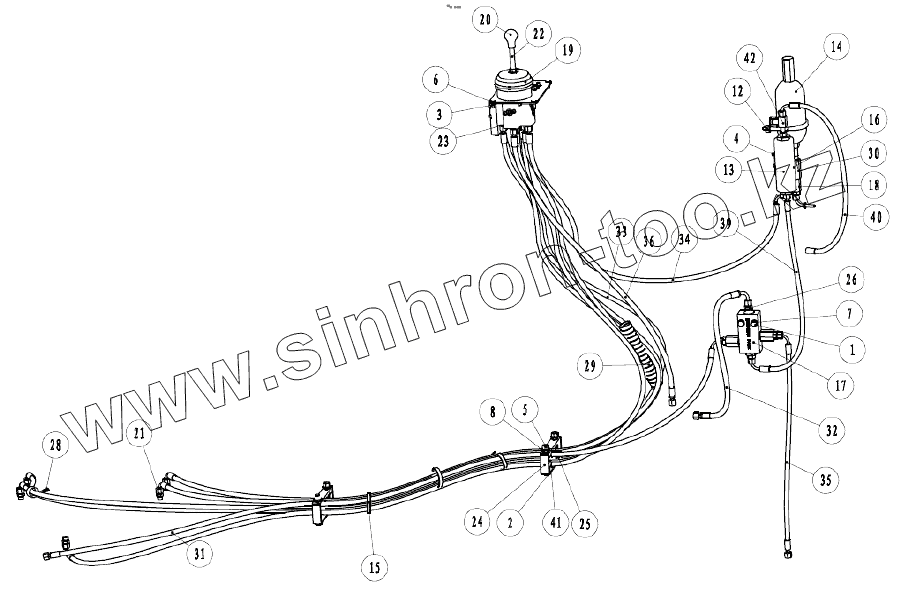

Каталог запасных частей к технике: SEM669C. PILOT HYDRAULIC SYSTEM

Тип техники

Марка

Модель

Схема

1

2

3

4

5

6

7

8

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

28

29

30

31

32

33

34

35

36

39

40

41

42

Позиция на иллюстрации	Заводской номер детали		Название детали
W110015510A	W110015510A		Filter
1	B040811055		Bolt
2	B040811285		Bolt
3	B040910820		Bolt
4	B040911020		Bolt
5	B050331211		Nut
6	B060410802		Washer
7	B060461002		Washer
8	B060461203		Washer
9	B160120112		O- ring
10	B160120265		O-ring
11	B161610080		O-ring 8 x1.5
12	B500151013		Lock nut
13	W110015500A		Pressure filter
14	W110021000		Accumulator
15	W150001370		Clip
16	W152200000		Pressure tap
17	W272400000B		Selection valve
18	W272400010B		Check valve
19	W272600000B		Pilot valve
20	Z010140010		Handle
21	Z3A20001600		Joint
22	Z3A20003300		Pilot valve control rod
23	Z3A20004500		Joint
24	Z520520800		Bracket
25	Z520520810		Sleeve
26	Z520520920		Connetion fitting
27	Z520520930		U bolt
28	Z5A01701900		Clip
29	Z5A052008		Hose cover
30	Z6B031025		Four-way adapter assembly
31	Z6B03100100		Pilot oil hose
32	Z5B03100300		Pilot hose assembly
33	Z6B03100500		Pilot oil hose
34	Z6B03100900		Pilot oil hose
35	Z5224500400		Pilot oil hose
36	Z5B031009		Pilot hose assembly
37	Z6B03101600		Pilot oil hose
38	Z6B03101900		Pilot oil hose
39	Z6B03102100		Pilot oil hose
40	Z5A20000100		Pilot hose
41	Z6B03102400		Pi ot hose fixed clip
42	Z6B03102600		Tee connection

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
