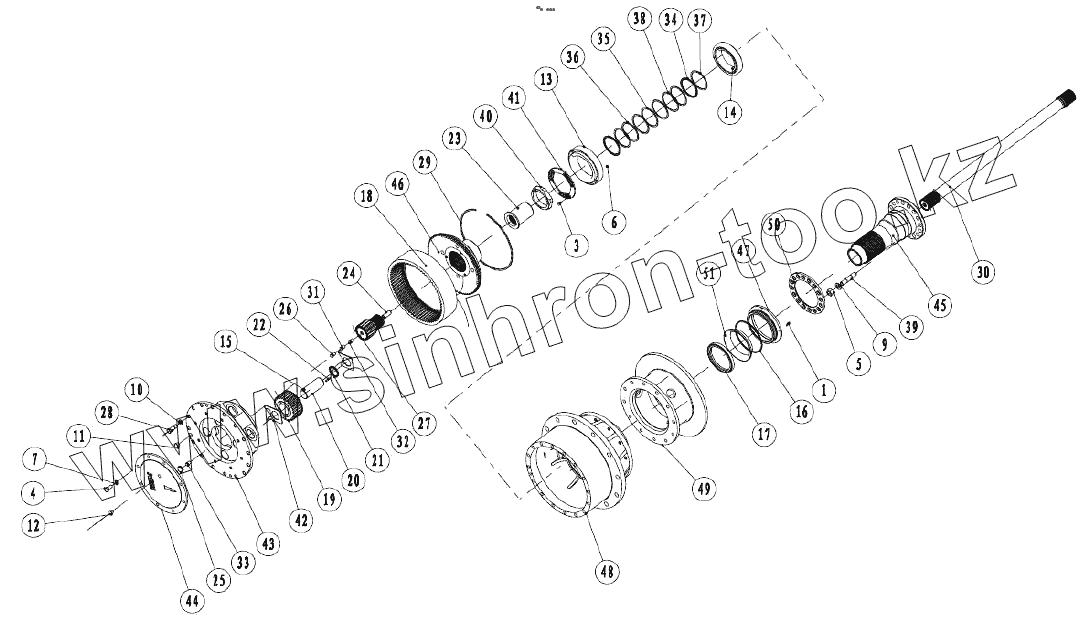

Каталог запасных частей к технике: SEM669C. FINAL REDUCER

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
3
4
5
6
7
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
Позиция на иллюстрации Заводской номер детали Название детали
B041691645 B041691645 Bolt
1 B040910620 Bolt
2 B040911645 Bolt
3 B040960816 Bolt
4 B041111430 Bolt
5 B050462017 Nut
6 B060110602 Lock washer
7 B060111404 Washer
8 B060111604 Washer
9 B060462003 Washer
10 B060511603 Washer
11 B110500102 Plug
12 B110500304 Plug
13 B120400015 Bearing 2007128e
14 B120400033 Bearing
15 B120710953 Steal ball
16 B160141751 O-ring
17 W044100550 Seal ring
18 Z610240111 Ring gear
19 Z610240121 Planet gear
20 Z610240151 Planet gear shaft
21 Z610240160 Partition harness
22 Z610240170 Needle
23 Z610240200 Joint sleeve
24 Z610240210 Screw
25 Z610240221 Block
26 Z610240230 Adjusting column
27 Z610240241 Sun gear
28 Z610240290 Bolt
29 Z610240300 Snap ring
30 Z610240320 Shaft
31 Z610241120 Adjusting pin
32 Z610241130 Adjusting pin
33 Z610241140 Adjusting pin
34 Z620590180 Adjust washer
35 Z620590190 Adjust washer
36 Z620590200 Adjust washer
37 Z620590210 Adjust washer
38 Z620590220 Adjust washer
39 Z620590230 Bolt
40 Z620590240 Lock nut
41 Z620590250 Lock ring
42 Z620590260 Planet gear spacer
43 Z6205904100 Planet carrier
44 Z62059045 End cap
45 Z62059047 Sleeve pipe
46 Z62059048 Ring gear support
47 Z62059091 Oil seal seat
48 Z62059112 Hub
49 Z62059113 Brake disc
50 Z62059116 Sleeve pipe gasket
51 Z62059119 Dust boot
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
