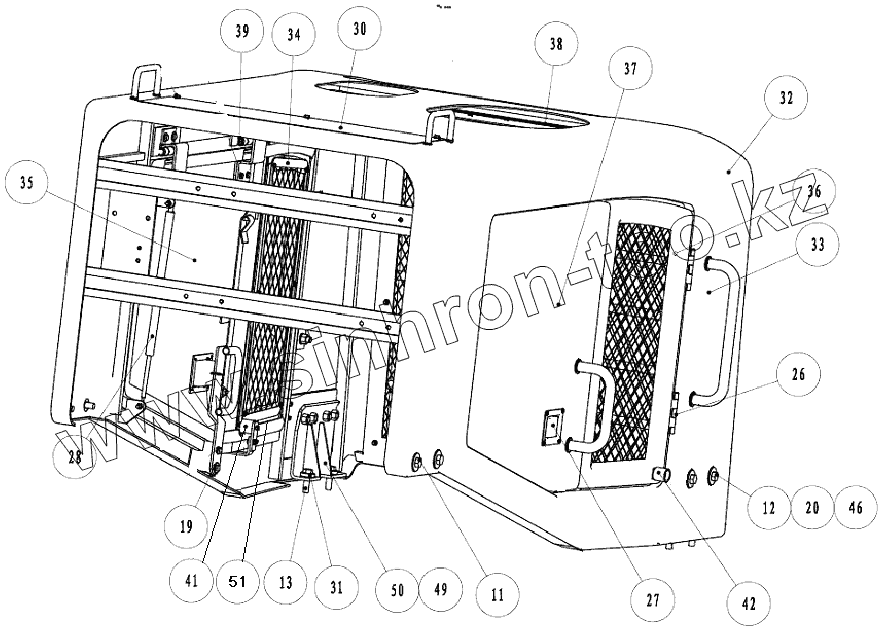

Каталог запасных частей к технике: SEM669C. ENGINE HOOD ASSEMBLY
11
12
13
20
26
27
28
30
31
33
34
35
36
37
38
39
41
42
46
49
50
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| NZ6B53200020 | NZ6B53200020 | 60 engine hood assembly | |
| 11 | B040911635 | Bolt | |
| 12 | B040911640 | Bolt | |
| 13 | B040911655 | Bolt | |
| 20 | B060331602 | Washer | |
| 26 | B240110001 | Hinge | |
| 27 | W110002390 | Lock | |
| 28 | W110021260 | Spring | |
| 30 | Z522070230 | Front cover | |
| 31 | Z5B513010 | Washer | |
| 33 | Z6B01201200 | Rear grill assembly | |
| 34 | Z6B01202000 | Rear right side door assembly | |
| 35 | Z6B01202100 | Right side door assembly | |
| 36 | Z6B01202200 | Rear left side door assembly | |
| 37 | Z6B01202300 | Left side door assembly | |
| 38 | Z6B01203100 | Upper grill assembly | |
| 39 | Z6B01203800 | Hinge assembly | |
| 41 | Z6B012056 | Mounting connecting assembly | |
| 42 | Z6B012057 | Rubber seat assembly | |
| 46 | Z6B012074 | Mounting seat | |
| 49 | Z6B501007 | Left side bracket assembly | |
| 50 | Z6B501011 | Right side bracket assembly | |
| 51 | Z6B012086 | Lock lever assembly |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
