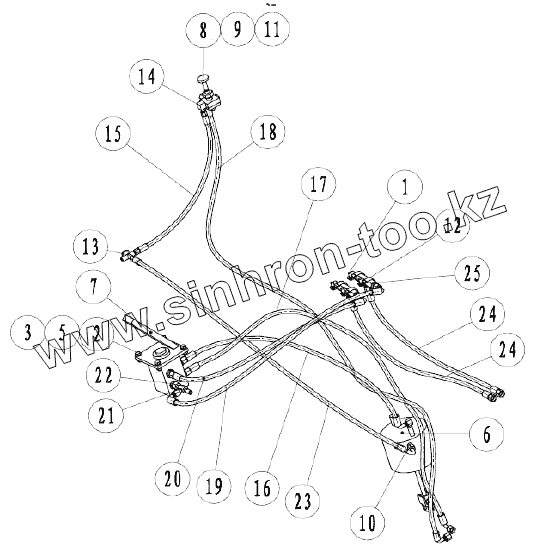

Каталог запасных частей к технике: SEM669C. CAB BRAKING SYSTEM
1
2
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | B040911020 | Bolt | |
| 2 | B040911030 | Bolt | |
| 3 | B050331008 | Nut | |
| 5 | B060331003 | Washer | |
| 6 | W085200000 | Parking brake air chamber | |
| 7 | W083700000B | Braking valve | |
| 8 | W110000090 | Unpowered braking valve | |
| 9 | Z310340220 | Connection fitting | |
| 10 | Z320220020 | Fitting | |
| 11 | Z320220060 | Unpowered braking valve Plug | |
| 12 | Z520171200 | Pipe clamp | |
| 13 | Z530220220 | Tee connection | |
| 14 | Z530220250 | Connection fitt ing | |
| 15 | Z5B02203800 | Brake hose | |
| 16 | Z5B361014 | M18 brake hose assembly | |
| 17 | Z5B361016 | M18 brake hose assembly | |
| 18 | Z5B361019 | M14 brake hose assembly | |
| 19 | Z5B361021 | M18 brake hose assembly | |
| 20 | Z5B361022 | M18 brake hose assembly | |
| 21 | Z5B361025 | Tee connection assembly | |
| 22 | Z5B361032 | Connection fitting | |
| 23 | Z5B361034 | M14 brake hose assembly | |
| 24 | Z5B371002 | Brake hose assembly | |
| 25 | Z5B376003 | Tee connection assembly |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
