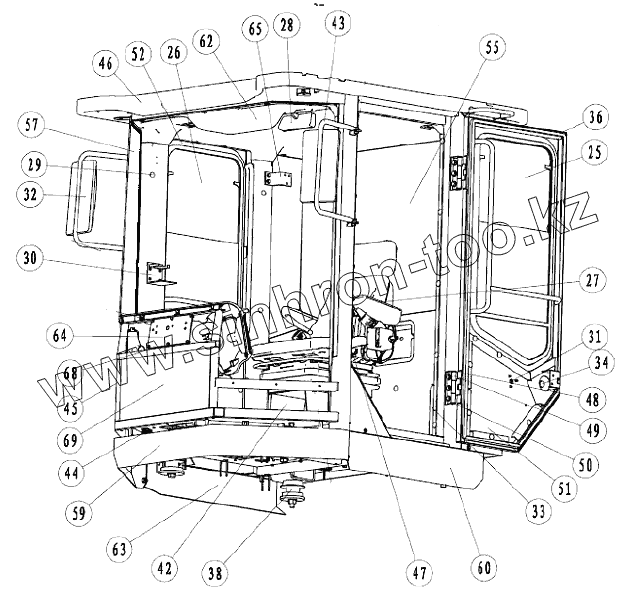

Каталог запасных частей к технике: SEM669C. CAB ASSEMBLY
25
26
27
28
29
30
31
32
33
34
36
38
42
43
44
45
46
47
48
49
50
51
52
55
57
59
60
62
63
64
65
68
69
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| NZ5B7100960010 | NZ5B7100960010 | Right door assembly | |
| NZ5B7100760010 | NZ5B7100760010 | Left door assembly | |
| NZ5B7100010020 | NZ5B7100010020 | Cab assembly | |
| 1 | B010710420 | Screw | |
| 2 | B010710520 | Screw | |
| 5 | B040910616 | Bolt | |
| 6 | B040910620 | Bolt | |
| 8 | B040910820 | Bolt | |
| 9 | B040911025 | Bolt | |
| 11 | B040911640 | Bolt | |
| 13 | B050331008 | Nut | |
| 14 | B050332018 | Nut | |
| 18 | B060311602 | Washer | |
| 19 | B060410501 | Washer | |
| 20 | B060410602 | Washer | |
| 21 | B060410802 | Washer | |
| 23 | B060412003 | Washer | |
| 24 | B060421002 | Washer | |
| 25 | W100000340B | Window | |
| 26 | W100000350B | Window | |
| 27 | W100000710B | Seat | |
| 28 | W101400000A | Inner mirror | |
| 29 | W101500000A | Lamp | |
| 30 | W101800000A | Cup hold | |
| 31 | W102200000A | Door hold back | |
| 32 | W110000370 | Rearview mirror | |
| 33 | W110022310 | Fire extinguisher | |
| 34 | W110022600 | Left lock | |
| 35 | W110022610 | Right lock | |
| 36 | Z010201030 | Door seal | |
| 37 | Z320041090 | Coat hook | |
| 38 | W105000000A | Cab mount | |
| 39 | Z3A00401800 | Rubber cover | |
| 40 | Z3A00403300 | Rubber cover iii | |
| 41 | Z3A00403900 | Buffer | |
| 42 | Z3A00404400 | Seat support | |
| 43 | Z3A00413200 | Blacket of rearview mirror | |
| 44 | Z3A00422300 | Gear lever seal sleeve | |
| 45 | Z5B71000100 | Cab assembly | |
| 46 | Z5B71000800 | Cab roof | |
| 47 | Z5B71007000 | Lock shaft assembly | |
| 48 | Z5B71007200 | Hinge shaft | |
| 49 | Z5B71007300 | Hinge i | |
| 50 | Z5B71007500 | Plate | |
| 51 | Z5B71007600 | Door assembly | |
| 52 | Z5B71009600 | Door assembly | |
| 53 | Z5B71010600 | Rear glass | |
| 54 | Z5B71010700 | Rear glass | |
| 55 | Z5B71010800 | Rear glass | |
| 56 | Z5B71010900 | Front glass | |
| 57 | Z5B71011000 | Front glass | |
| 58 | Z5B71011100 | Front glass | |
| 59 | Z5B71011200 | Board assembly | |
| 60 | Z5B71011500 | Left board assembly | |
| 61 | Z5B716001 | Floor gasket | |
| 62 | Z5B71012300 | Rad io bracket | |
| 63 | Z5B71012700 | Right board assembly | |
| 64 | Z5B71013000 | Windshield wiper blade engine retaining plate | |
| 65 | Z5B71013300 | Fan bracket | |
| 66 | Z5B71013600 | Seat | |
| 67 | Z5B71015000 | Decoration assembly | |
| 68 | Z5B71016100 | Front gasket | |
| 69 | Z5B71016200 | Front sponge |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
