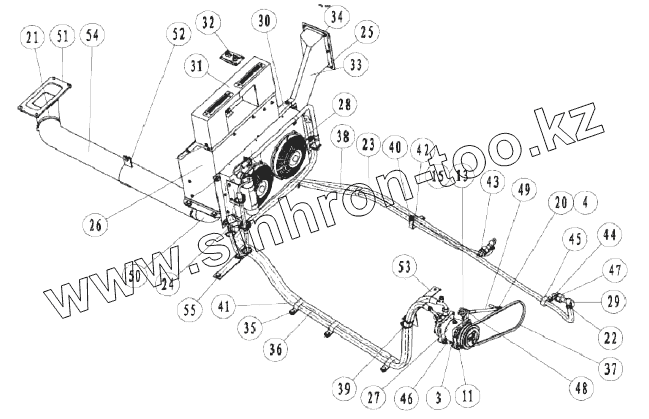

Каталог запасных частей к технике: SEM669C. AIR CONDITIONER
3
4
13
15
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 3 | B040810010 | Bolt | |
| 4 | B040861260 | Bolt M12x60 | |
| 13 | B050331211 | Nut | |
| 15 | B060311203 | Washer | |
| 20 | B060411203 | Washer | |
| 21 | B190111100 | Hose clamp | |
| 22 | B190120250 | Hose clamp | |
| 23 | W300600200B | Hose | |
| 24 | W300600400B | High pressure hose | |
| 25 | W300600700B | Window shade | |
| 26 | W300600800B | Evaporator | |
| 27 | W300600900B | Compressor | |
| 28 | W300601000B | Condenser | |
| 29 | W300601200B | Manul water Valve | |
| 30 | W300601300B | Wind path I | |
| 31 | W300601400B | Rear defrosting louver assembly | |
| 32 | W300601500B | Control panel | |
| 33 | W300601600B | Wind path II | |
| 34 | W300601700B | Wind fiiter | |
| 35 | W300700100B | High pressure hose | |
| 36 | W300700200B | Lower pressure hose | |
| 37 | W300700300B | Compressor belt | |
| 38 | W300700500B | Hose | |
| 39 | W300700370A | Clip | |
| 40 | Z3A02700500 | Tube bracketed | |
| 41 | Z3A02700700 | Clip | |
| 42 | Z520180870 | Clip | |
| 43 | Z520290240 | Connection fitting | |
| 44 | Z520290250 | Air conditioner inlet coupler | |
| 45 | Z5A02701000 | Clip | |
| 46 | Z5B02700400 | Compressor plate | |
| 47 | Z5B02700700 | Coupling | |
| 48 | Z5B02701000 | Linkage block | |
| 49 | Z4B02701100 | Compressor adjusting bolt | |
| 50 | Z5B71200100 | Connection fitting | |
| 51 | Z5B71200200 | Connection fitting | |
| 52 | Z5B71200300 | Clip | |
| 53 | Z5B712005 | Tube bracket | |
| 54 | Z5B712008 | Hose | |
| 55 | Z5B712009 | Bracket assembly |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
