Каталог запасных частей к технике: SEM656D. E&E System
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
22
23
25
26
27
28
29
31
32
33
34
35
36
37
38
39
40

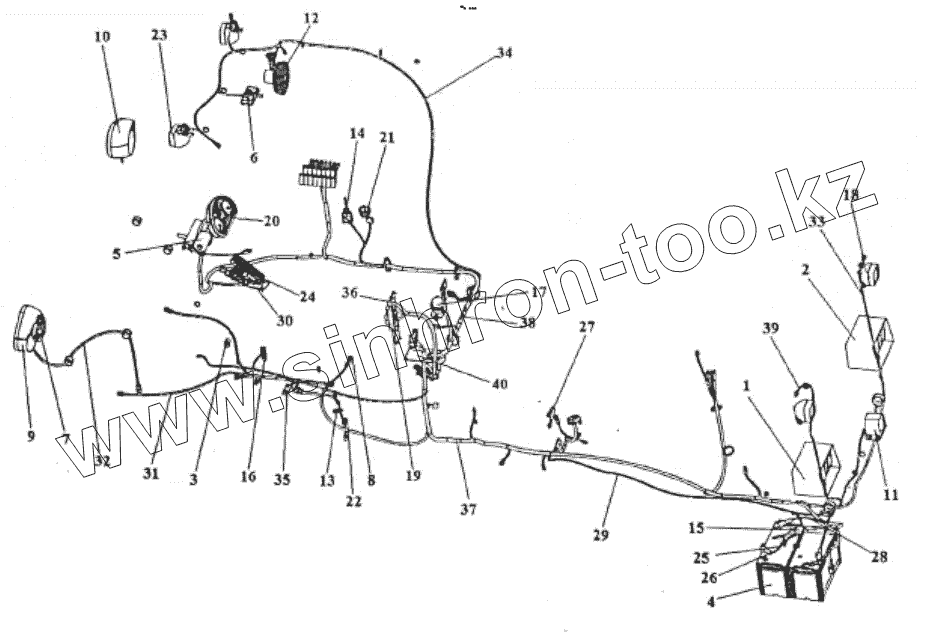

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 5384877 | Left rear combined lamp | |
| 2 | 5384878 | Right rear combined lamp | |
| 3 | 5386477 | Brack lamp switch | |
| 4 | 5191543 | Battery | |
| 5 | 5211193 | Wiper | |
| 6 | 5192422 | Dome lamp | |
| 7 | 5189628 | Monotone horn | |
| 8 | 5241604 | Switch of reverse lamp pressure | |
| 9 | 5241608 | Front combined lamp | |
| 10 | 5241609 | Front combined lamp | |
| 11 | 5241614 | Backup alarm | |
| 12 | 5241616 | Fan | |
| 13 | 5211185 | Tempraturc sensor | |
| 14 | 5242220 | Key switch | |
| 15 | 5189634 | Main power fuse | |
| 16 | 5242225 | Low air pressure sw | |
| 17 | 5252594 | Main power relay | |
| 18 | 5189640 | Work lamp | |
| 19 | 5549813 | Control box | |
| 20 | 5242219 | Dashboard | |
| 22 | 5252585 | Tc oil pressure switch | |
| 23 | 5252599 | Work lamp | |
| 25 | 5189650 | Battery negative wire | |
| 26 | 5189651 | Battery negative wire | |
| 27 | 5252605 | Grounding cable | |
| 28 | 5189652 | Battery connection wire | |
| 29 | 5252611 | Battery wire for starter | |
| 31 | 5244474 | Neef harness | |
| 32 | 5244475 | Left front harness | |
| 33 | 5244477 | Right rear harness | |
| 34 | 524447 | Cab harness | |
| 35 | 5244484 | Harness fix panel | |
| 36 | 5545857 | Plate | |
| 37 | 5546142 | Rear frame harness assembly | |
| 38 | 5546143 | Floor harness assembly | |
| 39 | 5546129 | Left rear lamp harness assembly | |
| 40 | 5546130 | Plate | |
| 41 | 5190901 | Cover | |
| 42 | 5190902 | Side bracket |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
