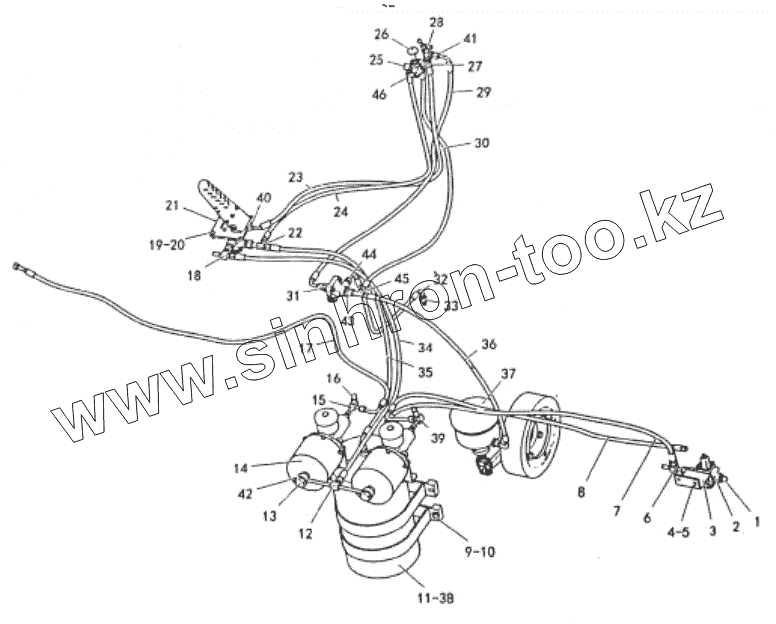

Каталог запасных частей к технике: SEM656D. Braking System
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 5217543 | Connect for oil pipe | |
| 2 | 5217534 | Oil and water separate valve | |
| 3 | 5219704 | Bracket | |
| 4 | 5182310 | Bolt | |
| 5 | 5189745 | Washer | |
| 6 | 5219692 | T tube | |
| 7 | 5219695 | Hose | |
| 8 | 5228143 | Hose | |
| 9 | 5246918 | Bolt | |
| 10 | 5189737 | Washer | |
| 11 | 5217545 | Airbox | |
| 12 | 5219683 | T adapter | |
| 13 | 5209836 | Bolt | |
| 14 | 5217528 | Соmргessor | |
| 15 | 5219671 | T adapter | |
| 16 | 5190318 | Adapter | |
| 17 | 5219696 | Pipe | |
| 18 | 5225759 | T adapter | |
| 19 | 5188388 | Bolt | |
| 20 | 5189744 | Washer | |
| 21 | 5217532 | Brake valve | |
| 22 | 5219680 | T adapter | |
| 23 | 5217521 | Pipc | |
| 24 | 5217560 | Park brake outair hose | |
| 25 | 5217552 | Adapter | |
| 26 | 5217547 | Park brake valve | |
| 27 | 5219673 | Right angle adapter | |
| 28 | 5217539 | Switch valve | |
| 29 | 5228144 | Hose | |
| 30 | 5217520 | Hose | |
| 31 | 5217533 | Air control valve | |
| 32 | 5228156 | Hose | |
| 33 | 5217562 | Adapter | |
| 34 | 5219658 | Hose | |
| 35 | 5219705 | Hose | |
| 36 | 5219676 | Hose | |
| 37 | 5217527 | Park brake assistor | |
| 38 | 5217544 | Tire inflation valve | |
| 39 | 5219669 | T adapter | |
| 40 | 5217543 | Connect for oil pipe | |
| 41 | 5219665 | Adapter | |
| 42 | 5243204 | Combination seal-washer | |
| 43 | 5184427 | Combine seal gasket | |
| 44 | 5217549 | Fitting | |
| 45 | 5217556 | T-adapter | |
| 46 | 5217563 | Manual controlled brake valve plug |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
