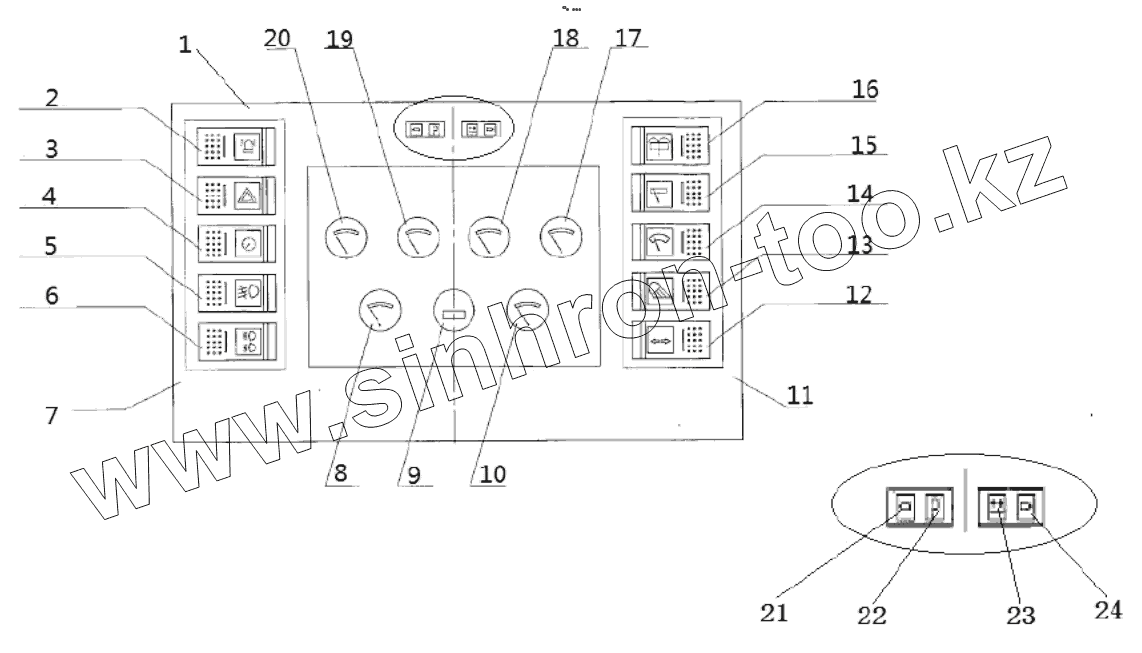

Каталог запасных частей к технике: SEM655D. Gauge panel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| W370200100A | W370200100A | Fuse | |
| W370200090A | W370200090A | Fuse | |
| W370200080A | W370200080A | Fuse | |
| 1 | W370200110A | Dash panel shell | |
| 2 | W46000135 | Warn light switch | |
| 3 | W370000490B | Urgent light switch | |
| 4 | W46000136 | Panel lamp switch | |
| 5 | W46000138 | Anti-fog lamp switch | |
| 6 | W46000139 | Head lamp switch | |
| 7 | W370200010A | Fuse box | |
| 8 | W110002810 | Enging coolant thermometer | |
| 9 | W110023670 | Hourmeter | |
| 10 | W110002830 | Oil thermomter | |
| 11 | W370200040A | Electric lock | |
| 12 | W46000140 | Turn light switch | |
| 13 | W46000141 | Rear lamp switch | |
| 14 | W46000142 | Windshield wiper switch | |
| 15 | W370000460B | Rear windshield wiper switch | |
| 16 | W370000470B | Washing switch | |
| 17 | W110002780 | Air pressure | |
| 18 | W110023651 | Oil pressure gauge | |
| 19 | W110009000 | Enging oil pressure | |
| 20 | W370000080A | Valtage | |
| 21 | W370200030A | Steering indicating light | |
| 22 | W370200030A | Steering indicating light | |
| 23 | W370200020A | Steering indicating light | |
| 24 | W370200020A | Steering indicating light |
