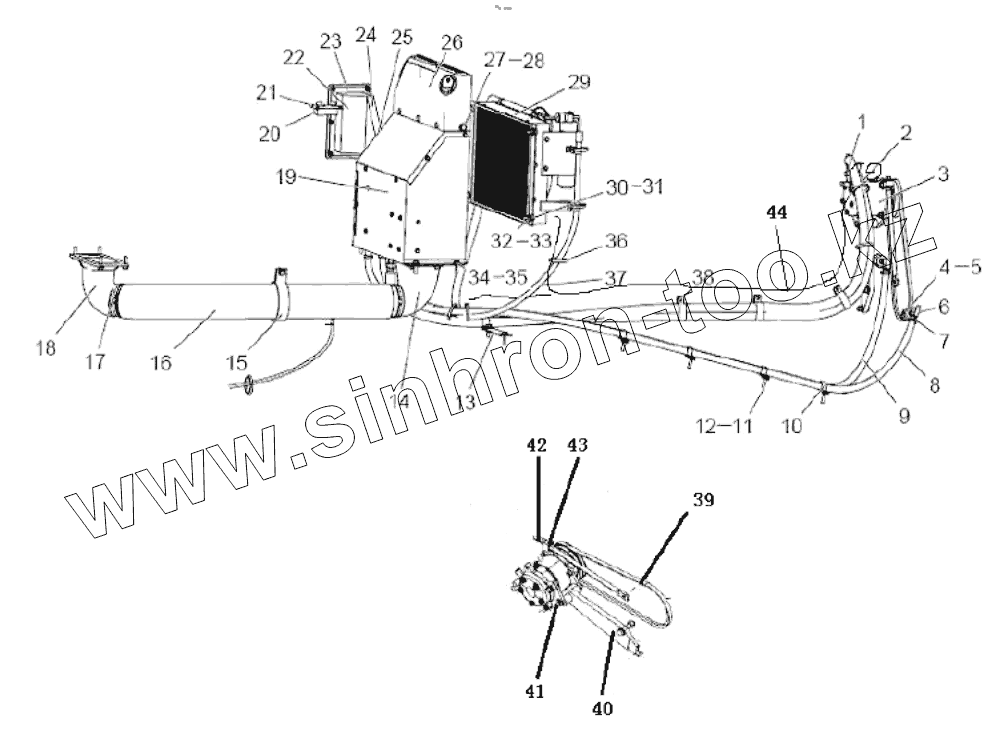

Каталог запасных частей к технике: SEM655D. Air Condition System (WDEC)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
32
34
36
36
36
37
38
39
40
41
42
43
44
Позиция на иллюстрации Заводской номер детали Название детали
1 W300600500B Air conditioner hose
2 W300600600B Air conditioner hose
3 W300600900B Compressor
4 Z5A02700700 Inlet coupler
5 Z5B02700700 Coupling
6 W300601200B Manul water Valve
7 B190120250 Hose clamp
8 W300600200B Hose
9 W300600300B Heating hose
10 Z520180870 Clip
11 B040911020 Bolt
12 B060411002 Washer
12 B060411002 Washer
12 B060411002 Washer
13 Z5B712009 Bracket assembly
14 Z5B71200100 Connection fitting
15 Z5B71200300 Clip
16 Z5B712008 Hose
17 B190111100 Hose clamp
18 Z5B71200200 Connection fitting
19 W48000139 Evaporator
20 W300601500B Control panel
21 B020514210 Screw
22 W300601700B Wind fiiter
23 W300600700B Window shade
24 W300601600B Wind path II
25 W300601300B Wind path I
26 W48000152 After defrosting duct assembly
27 B040910616 Bolt
28 B060310601 Washer
29 W300601000B Condenser
30 B040911045 Bolt
31 B060331003 Washer
31 B060331003 Washer
32 B050331008 Nut
32 B050331008 Nut
34 B040911025 Bolt
36 W370000370A Clip
36 W370000370A Clip
36 W370000370A Clip
37 W300600400B High pressure hose
38 Z3A02700700 Clip
39 W300601100B Compressor belt
40 Z5B02700100 Compressor bracket
41 Z5B02700400 Compressor plate
42 Z5B02700600 Compressor adjusting bolt
43 Z5B02700500 Compressor joint
44 W46000356 Hvac harness
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
