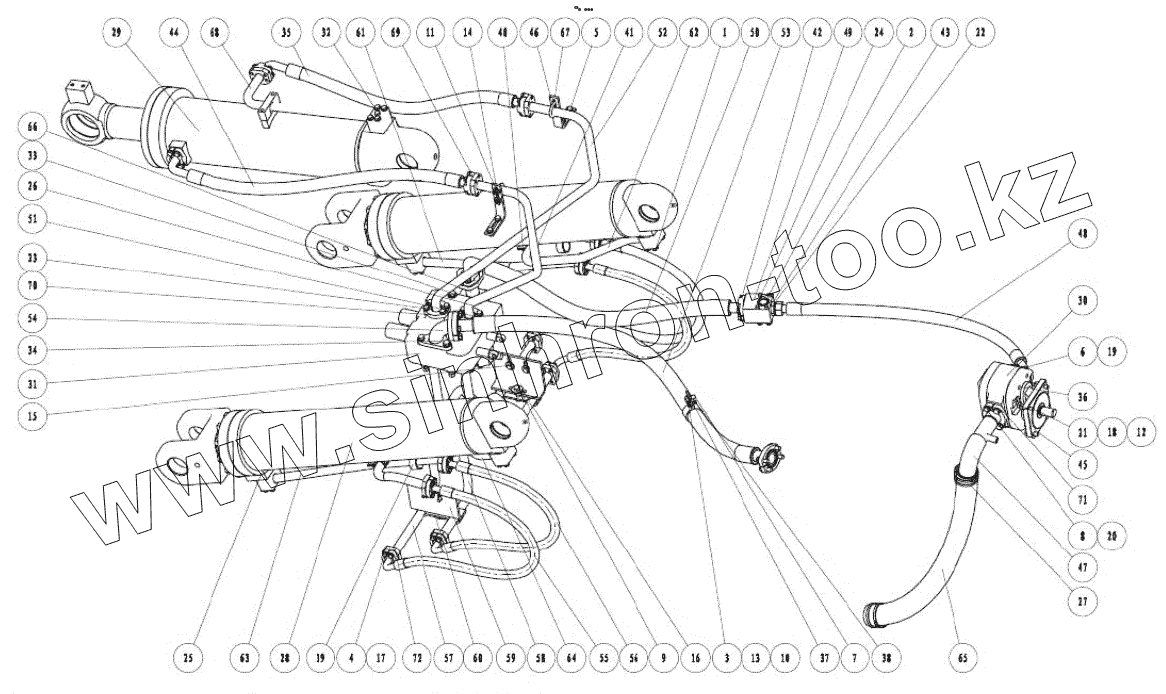

Каталог запасных частей к технике: SEM652B. Working device hydraulic system

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
38
40
41
42
43
44
45
46
47
48
49
51
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
Позиция на иллюстрации Заводской номер детали Название детали
1 B040811065 Bolt
2 B040811070 Bolt
3 B040910625 Bolt
4 B040910830 Bole
5 B040911020 Bolt
6 B040911030 Bolt
7 B040911225 Bolt
8 B040911235 Bolt
9 B040911240 Bolt
10 B050330605 Nut
11 B050330807 Nut
12 B050331211 Nut
13 B060310601 Washer
14 B060310802 Washer
15 B060331003 Washer
16 B060331203 Washer
17 B060410802 Washer
18 B060411203 Washer
19 B060461002 Washer
20 B060461203 Washer
21 B101111240 Bolt
22 B160130300 O-ring
23 B160130315 O ring
24 B160130329 O-ring
25 B160130335 O- ring
26 B160130375 O-ring
27 B190120800 Clip
28 W051600000B Lift cylinder
29 W054300000B Tilt cylinder
30 W067400000B Gear pump
31 W073500000 Impiement valve
32 W152200000 Pressure tap
33 Z310100010 Implement valve Bolt
34 Z310100110 Valve fixing bolt
35 Z3A20006900 Hose as.
36 Z520180060 Split flange
37 Z520522490 Clip i
38 Z520522500 Clip
39 Z520522610 Clip
40 Z5205226200 Upper clip
41 Z5205226300 Lower clip
42 Z5301905900 Split flange
43 Z5A20001600 Connection fitting
44 Z5A20002100 Hose as.
45 Z5A20202700 Gasket
46 Z5B01900900 U bolt
47 Z5B06800100 Suction tube
48 Z5B06800400 Hose as.
49 Z5B06800600 Oil block
50 Z5B06800700 Hose as.
51 Z5B06801000 Tube as.
52 Z5B06801300 Tube as.
53 Z5B06801500 Hose as.
54 Z5B06801700 Adapter as.
55 Z5B06801800 Hose as.
56 Z5B06802000 Hose as.
57 Z5B06802200 Tube as.
58 Z5B06802500 Tube as.
59 Z5B06802700 Fixed plate
60 Z5B06802800 Clip
61 Z5B06802900 Tube as.
62 Z5B06803100 Tube as.
63 Z5B06803200 Tube as.
64 Z5B06803400 Tube as.
65 Z5B06803600 Implement suction hose
66 Z5B06803700 Inlet adapter
67 Z5B06804100 Bracket
68 Z5B20006400 Tilt cylinder big chamber joint tube
69 Z610200060 Split flange
70 Z610200080 Split flange
71 Z610200090 Split flange
72 Z610200100 Split flange
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
