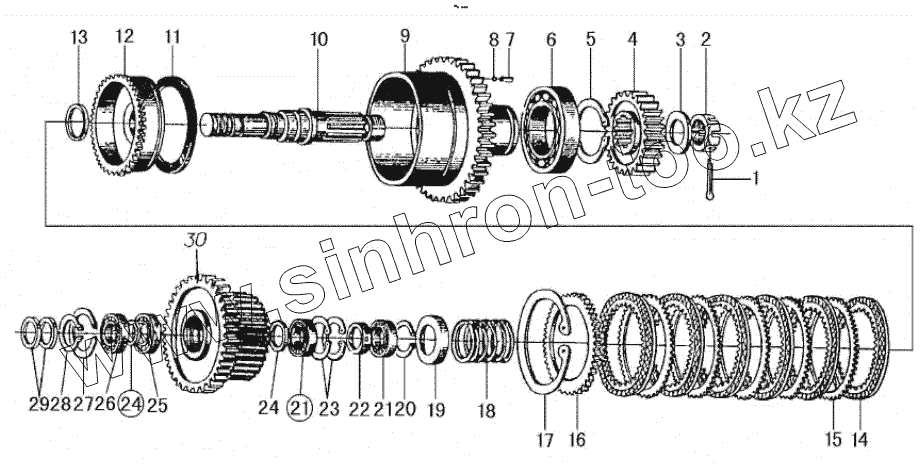

Каталог запасных частей к технике: SEM652B. Clutch (II, IV)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | B080210670 | Split pin | |
| 2 | Z510210400 | Nut | |
| 3 | Z510210390 | Clamping plate | |
| 4 | Z510210090 | Gear | |
| 5 | B070250001 | Snap ring | |
| 6 | B120320001 | Bearing | |
| 7 | Z510210520 | Check valve seat | |
| 8 | B120710500 | Steel ball | |
| 9 | Z510210620 | Gear sleeve | |
| 10 | Z510210100 | Clutch shaft | |
| 11 | Z510210450 | Piston outer seal ring | |
| 12 | Z510210440 | Piston | |
| 13 | Z510210310 | Seal ring | |
| 14 | Z510210560 | Clutch driving disc | |
| 15 | Z510210460 | Clutch driven disc | |
| 16 | Z510210470 | Clamping plate | |
| 17 | B070150001 | Snap ring | |
| 18 | Z510210480 | Spring | |
| 19 | Z510210490 | Spring retainer | |
| 20 | B070255002 | Snap ring | |
| 21 | B120124018 | Bearing | |
| 22 | Z510210500 | Spacer | |
| 23 | B070158003 | Snap ring | |
| 24 | Z510210250 | Gasket | |
| 25 | B120134023 | Bearing | |
| 26 | B121134023 | Bearing | |
| 27 | B120639000 | Lock ring | |
| 28 | B070214002 | Snap ring | |
| 29 | Z510210240 | Seal ring | |
| 30 | Z510210610 | Gear |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
