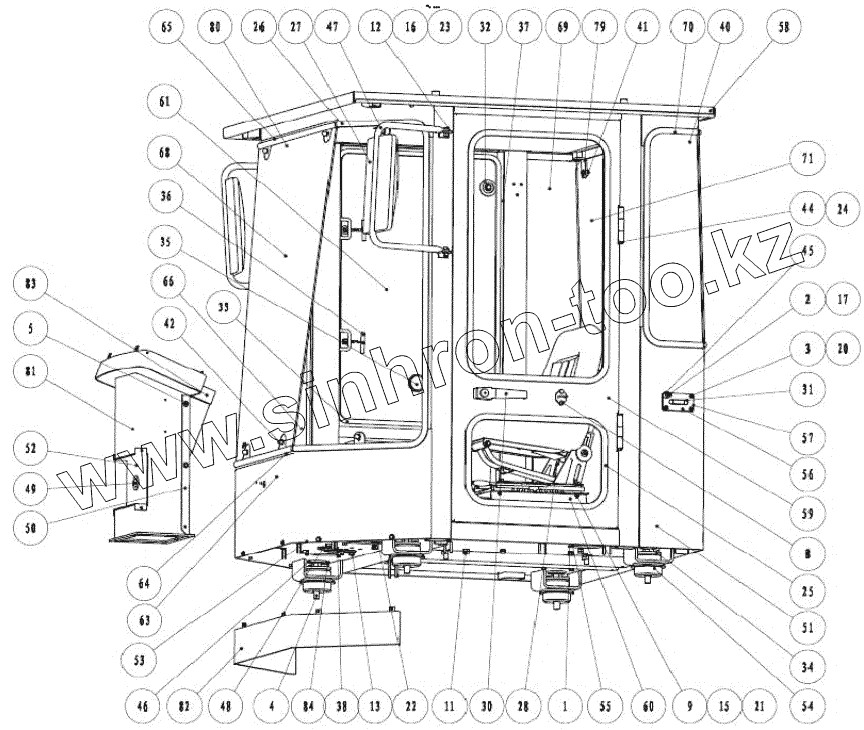

Каталог запасных частей к технике: SEM652B. Cab assembly

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
8
9
11
12
13
15
16
17
20
21
22
23
24
25
26
27
28
30
31
32
34
35
35
36
37
38
40
41
42
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
63
64
65
66
68
69
70
71
79
80
81
82
83
84
Позиция на иллюстрации Заводской номер детали Название детали
NZ5B0530780010 NZ5B0530780010 Left door assembly
NZ5B0530010000 NZ5B0530010000 Cab assembly
1 B010210510 Screw
2 B010210620 Screw
3 B010710610 Screw
4 B040810003 Bolt
5 B040910612 Bolt
8 B040910816 Bolt
9 B040910820 Bolt
11 B040911012 Bolt
12 B040911025 Bolt
13 B040911225 Bolt
15 B050330807 Nut
16 B050331008 Nut
17 B060110602 Lock washer
20 B060410602 Washer
21 B060410802 Washer
22 B060411203 Washer
23 B060411002 Washer
24 B080210224 Pin
25 033192000 Sealing
26 033199000 Sealing
27 W110000370 Rearview mirror
28 W100000030B Seat
29 W110022310 Fire extinguisher
30 W110022600 Left lock
31 W110022620 Lock
32 W110250710 Gemel attachment
33 Z010201030 Door seal
34 Z010202130 Gasket
35 Z1200901900 Handle
36 Z1200902000 Side door hook assembly
37 Z140100110 Gemel
38 Z320050080 Grommet
39 Z330040031 Door below glass
40 Z330040951 Gasket
41 Z330040972 Gasket
42 Z330040980 Nut
43 Z330041150 Door upper glass
44 Z330041170 hinge shaft
45 Z330041290 Shock absorber
46 Z3A00403300 Rubber cover iii
47 Z3A00413200 Blacket of rearview mirror
48 Z3A00422100 Steering column grommet
49 Z3A00422300 Gear lever seal sleeve
50 Z3A00422600 Pedestal cover
51 Z3A00422800 Condition cover
52 Z3A00423600 Cover
53 Z3A00429000 Hose cover
54 Z3B01400400 Marc_30 Shock absorber
55 Z510060050 Fueifill assembiу
56 Z550043570 Cover plate
57 Z550043580 Shock absorber
58 Z5B05300100 Cab assembly
59 Z5B05307800 Left door assembly
60 Z5B05308400 Seat bracket
61 Z5B05308800 Window glass
62 Z5B05308900 Glass clamp
63 Z5B05309000 Glass clamp
64 Z5B05309100 Glass clamp
65 Z5B05309200 Glass clamp
66 Z5B05309500 Right front side glass
67 Z5B05309600 Left front side glass
68 Z5B05309700 Front glass
69 Z5B05309800 Right rear side glass
70 Z5B05309900 Left rear side glass
71 Z5B05310000 Rear glass
72 Z5B05310100 Ceiling sponge
73 Z5B05310200 Rear sponge
74 Z5B05310300 Front side sponge
75 Z5B05310400 Front sponge
76 Z5B05310500 Left rear side sponge
77 Z5B05310600 Right rear side sponge
78 Z5B05310700 Right door lower glass
79 Z5B05310800 Glass clamp
80 Z5B05310900 Glass clamp
81 Z5B05311400 Console bracket assembly
82 Z5B05311700 Skirt assembly
83 Z5B05312100 Cover
84 Z5B70800100 Rubber floor
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
