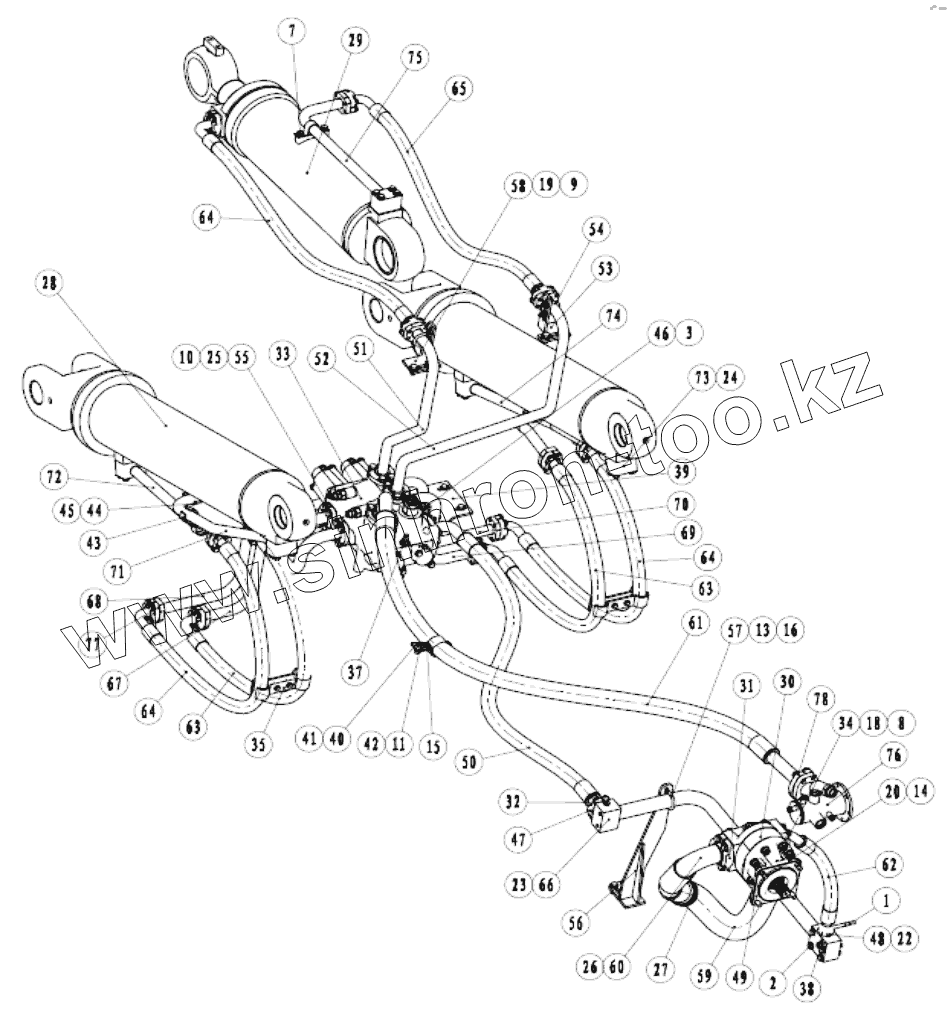

Каталог запасных частей к технике: SEM650B. WORKING DEVICE HYDRAULIC SYSTEM
1
2
3
7
8
9
10
14
15
16
18
19
20
22
23
24
25
26
27
28
29
30
31
32
33
34
35
37
38
39
40
41
42
43
43
44
45
46
47
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
63
64
64
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | B040810020 | Bolt | |
| 2 | B040811065 | Bolt | |
| 3 | B040811250 | Bolt | |
| 7 | B040911020 | Bolt | |
| 8 | B040911030 | Bolt | |
| 9 | B040911225 | Bolt | |
| 10 | B040911235 | Bolt | |
| 14 | B050331211 | Nut | |
| 15 | B060310601 | Washer | |
| 16 | B060330802 | Washer | |
| 18 | B060461002 | Washer | |
| 19 | B060461203 | Washer | |
| 20 | B100111235 | Stud | |
| 21 | B160120112 | O- ring | |
| 22 | B160130300 | O-ring | |
| 23 | B160130329 | O-ring | |
| 24 | B160130335 | O- ring | |
| 25 | B160130375 | O-ring | |
| 26 | B160130560 | O-ring | |
| 27 | B190120800 | Clip | |
| 28 | W051500002 | Lift cylinder | |
| 29 | W054300000B | Tilt cylinder | |
| 30 | W066900000B | Implement cylinder | |
| 31 | W150000290A | Split flange | |
| 32 | W152200000 | Pressure tap | |
| 33 | W271100000B | Working valve | |
| 34 | Z520180060 | Split flange | |
| 35 | Z520190070 | Clip | |
| 37 | Z520520490 | Bolt | |
| 38 | Z520520920 | Connetion fitting | |
| 39 | Z520521760 | Plate | |
| 40 | Z520522600 | Clip | |
| 41 | Z520522500 | Clip | |
| 42 | Z520522600 | Pin | |
| 43 | Z520522610 | Clip | |
| 44 | Z5205226200 | Upper clip | |
| 45 | Z5205226300 | Lower clip | |
| 46 | Z5205229100 | Clip | |
| 47 | Z5301905900 | Split flange | |
| 48 | Z5A20001600 | Connection fitting | |
| 49 | Z5A20202700 | Gasket | |
| 50 | Z5B01900100 | High pressure hose assembly | |
| 51 | Z5B01900300 | Working valve left tilt tube | |
| 52 | Z5B01900600 | Working valve right tilt tube | |
| 53 | Z5B01900800 | Bracket | |
| 54 | Z5B01900900 | U bolt | |
| 55 | Z5B01901000 | Split flange | |
| 56 | Z5B019011 | Tube bracket | |
| 57 | Z5B019015 | U bolt | |
| 58 | Z5B019016 | Bracket | |
| 59 | Z5B20000100 | Implement pump suction hose | |
| 60 | Z5B20000200 | Implement pump sucting adapter | |
| 61 | Z5B20000900 | High pressure hose assembly | |
| 62 | Z5B20001100 | High pressure hose assembly | |
| 63 | Z5B20001300 | High pressure hose assembly | |
| 64 | Z5B20001500 | High pressure hose assembly | |
| 65 | Z5B20002100 | High pressure hose assembly | |
| 66 | Z5B20003200 | Tube assembly | |
| 67 | Z5B20003400 | Implement vlave big chamber joint tube | |
| 68 | Z5B20004200 | Implement vlave small chamber joint tube | |
| 69 | Z5B20004700 | Joint tube i | |
| 70 | Z5B20004900 | Joint tube ii | |
| 71 | Z5B20005100 | Left lift cylinder big chamber joint tube | |
| 72 | Z5B20005400 | Left lift cylinder small chamber joint tube | |
| 73 | Z5B20005600 | Right lift cylinder big chamber joint tube | |
| 74 | Z5B20005800 | Right lift cylinder small chamber joint tube | |
| 75 | Z5B20006400 | Tilt cylinder big chamber joint tube | |
| 76 | Z5B20006700 | Hydraulic fuel return fitting assembly | |
| 77 | Z610200060 | Split flange | |
| 78 | Z610200090 | Split flange |
