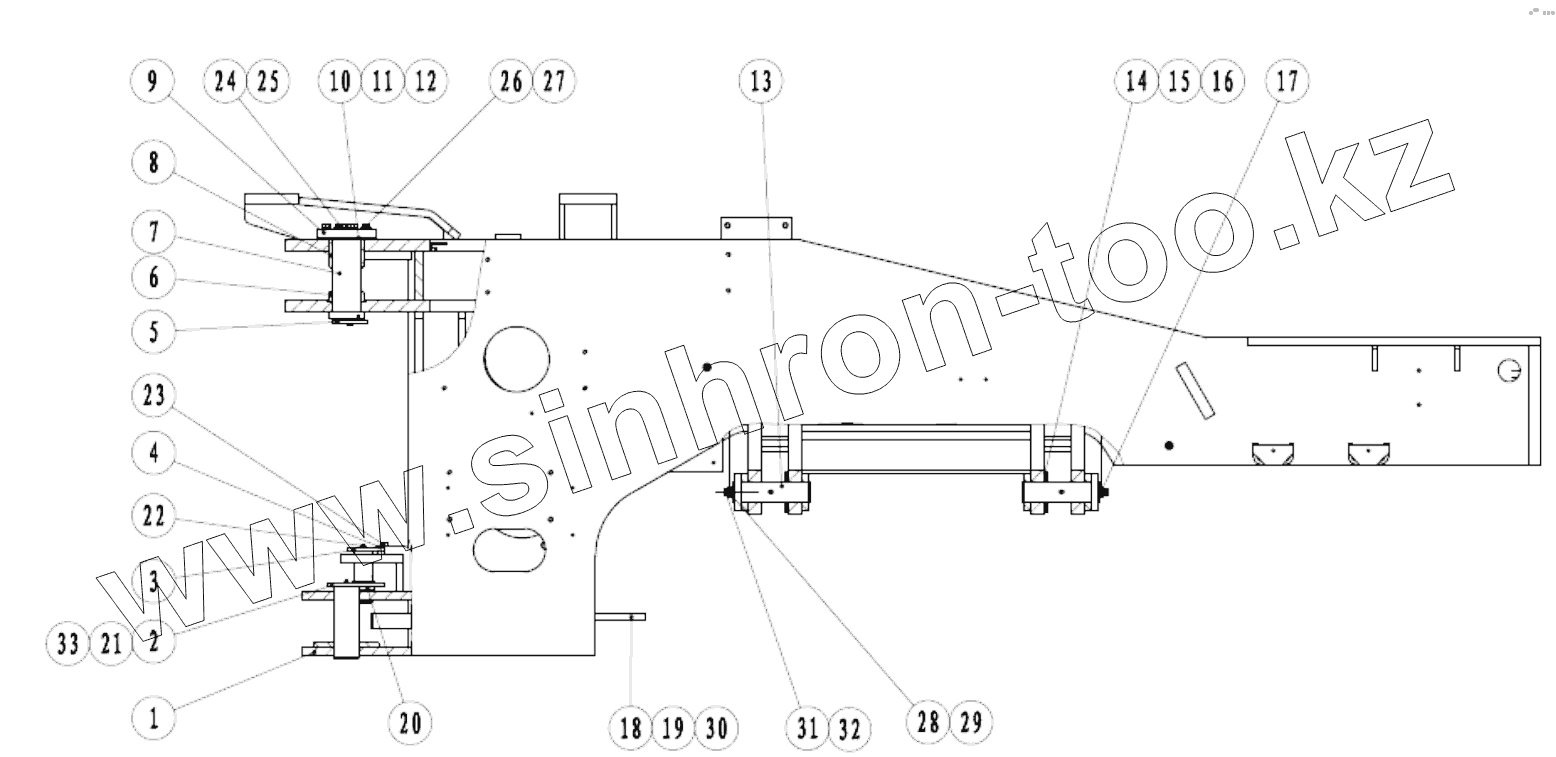

Каталог запасных частей к технике: SEM650B. REAR FRAME ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z5B00300100 | 650b rear frame assembly | |
| 2 | Z520030591 | Lower joint pin | |
| 3 | Z520030621 | Steering cylinder rear pin assembly | |
| 4 | Z640020100 | Washer | |
| 5 | Z640030030 | Joint plate | |
| 6 | Z520031200 | Lower spacer | |
| 7 | Z520031220 | Upper joint pin | |
| 8 | Z520031210 | Upper spacer | |
| 9 | Z520031230 | Upper joint plate | |
| 10 | Z640030070 | Adjusting washer i | |
| 11 | Z640030080 | Adjusting washer ii | |
| 12 | Z640030090 | Adjusting washer iii | |
| 13 | Z520030791 | Oscillate frame pin assembly | |
| 14 | Z310010070 | Adjustment shim | |
| 15 | Z310010110 | Adjustment shim | |
| 16 | Z310010120 | Adjustment shim | |
| 17 | Z520030690 | Oscillate frame front pin lubrication tube | |
| 18 | Z5B00301000 | Safety rod | |
| 19 | Z310020020 | Pin | |
| 20 | Z5B052052 | Support gasket | |
| 21 | Z520020890 | Washer | |
| 22 | B150101000 | Oil cup | |
| 23 | B040911225 | Bolt | |
| 24 | B040811680 | Bolt | |
| 25 | B060411603 | Washer | |
| 26 | B040811250 | Bolt | |
| 27 | B060411203 | Washer | |
| 28 | B040912040 | Bolt | |
| 29 | B060412004 | Washer | |
| 30 | B080210016 | Pin | |
| 31 | B041200002 | Bolt | |
| 32 | B060811002 | Washer | |
| 33 | B040911625 | Bolt |
