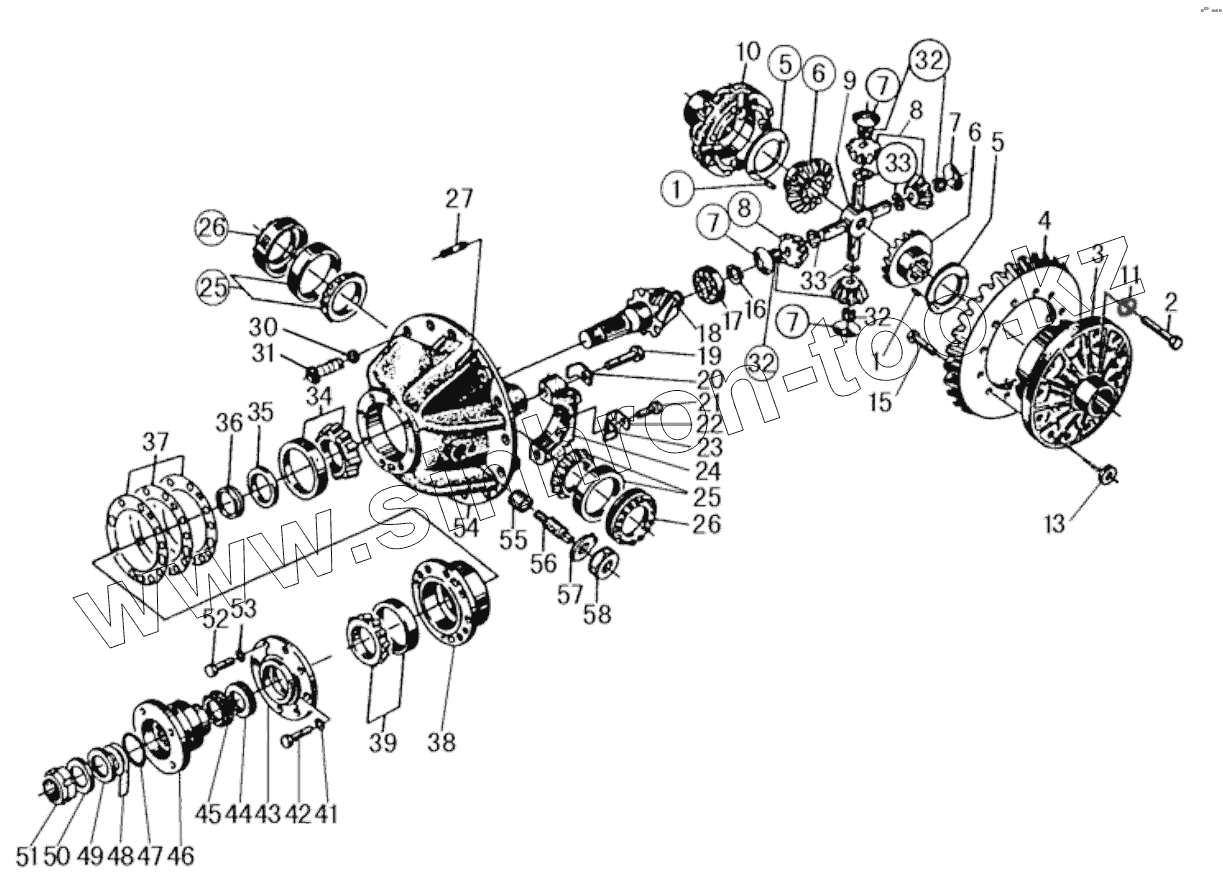

Каталог запасных частей к технике: SEM650B. MAIN REDUCER & DIFFERENTIAL
NZ62059005020
Z5201001700
Z620590030
Z610240760
Z610240760
Z610240770
1
1
2
3
4
5
5
6
6
7
7
7
7
8
8
9
10
11
13
15
16
17
18
19
20
21
22
23
24
25
25
26
26
27
30
31
32
32
32
32
32
32
32
32
33
33
34
35
36
37
38
39
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| NZ62059005020 | NZ62059005020 | Differential assembly | |
| Z5201001700 | Z5201001700 | Main reducer assembly of rear axle | |
| Z620590030 | Z620590030 | Main reducer assembly of front axle | |
| Z610240760 | Z610240760 | Axle shaft gear washer | |
| Z610240770 | Z610240770 | Connect bolt on differential frame | |
| 1 | Z610240650 | Pin | |
| 2 | B041061685 | Bolt | |
| 3 | NZ62059005011 | Differential case | |
| 4 | Z620590070 | Spiral bevel driven gear | |
| 5 | Z620590120 | Spiral bevel driven gear | |
| 6 | Z610240690 | Axle shaft gear | |
| 7 | Z620590081 | Planet gear washer | |
| 8 | Z610240640 | Planet gear | |
| 9 | Z610240730 | Cardan shaft | |
| 10 | Z620590061 | Right differential case | |
| 11 | B060461603 | Washer | |
| 13 | Z620590110 | Nut | |
| 15 | Z620590100 | Bolt | |
| 16 | B070214002 | Snap ring | |
| 17 | B120330004 | Bearing | |
| 18 | Z610240590 | Spiral bevel driving gear | |
| 19 | Z610241040 | Spiral bevel driving gear | |
| 20 | B060112206 | Washer | |
| 21 | B040911020 | Bolt | |
| 22 | B060111003 | Lock washer | |
| 23 | Z610240720 | Lock plate | |
| 24 | Z610240710 | Differential frame cove | |
| 25 | W110002730 | Bearing | |
| 26 | Z610240700 | Differential nut | |
| 27 | Z640060060 | Pin | |
| 30 | B060411403 | Washer | |
| 31 | B040861450 | Bolt | |
| 32 | Z620590090 | Bush | |
| 32 | Z6205900901 | Bush | |
| 33 | Z610240670 | Spacer | |
| 34 | B120400017 | Bearing | |
| 35 | Z610240570 | Bearing sleeve | |
| 36 | Z610240560 | Adjusting washer | |
| 37 | Z610240580 | Adjusting washer | |
| 38 | Z610240470 | Bearing seat | |
| 39 | B120400016 | Bearing | |
| 41 | B060111203 | Lock washer | |
| 42 | B041011255 | Bolt | |
| 43 | Z610240480 | End cover | |
| 44 | B160240004 | Seal ring | |
| 45 | B160220004 | Seal ring | |
| 46 | Z620590270 | Flange | |
| 47 | B160130560 | O-ring | |
| 48 | Z610240501 | Adjusting washer | |
| 49 | Z610240491 | Apron | |
| 50 | Z610240520 | Washer | |
| 51 | Z610240510 | Lock nut | |
| 52 | B041011450 | Bolt | |
| 53 | B060111404 | Washer | |
| 54 | NZ63050008000 | Main reducer case | |
| 55 | Z610240980 | Copper pin | |
| 56 | Z610240970 | Bolt | |
| 57 | Z610240790 | Lock washer | |
| 58 | Z610240780 | Nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
