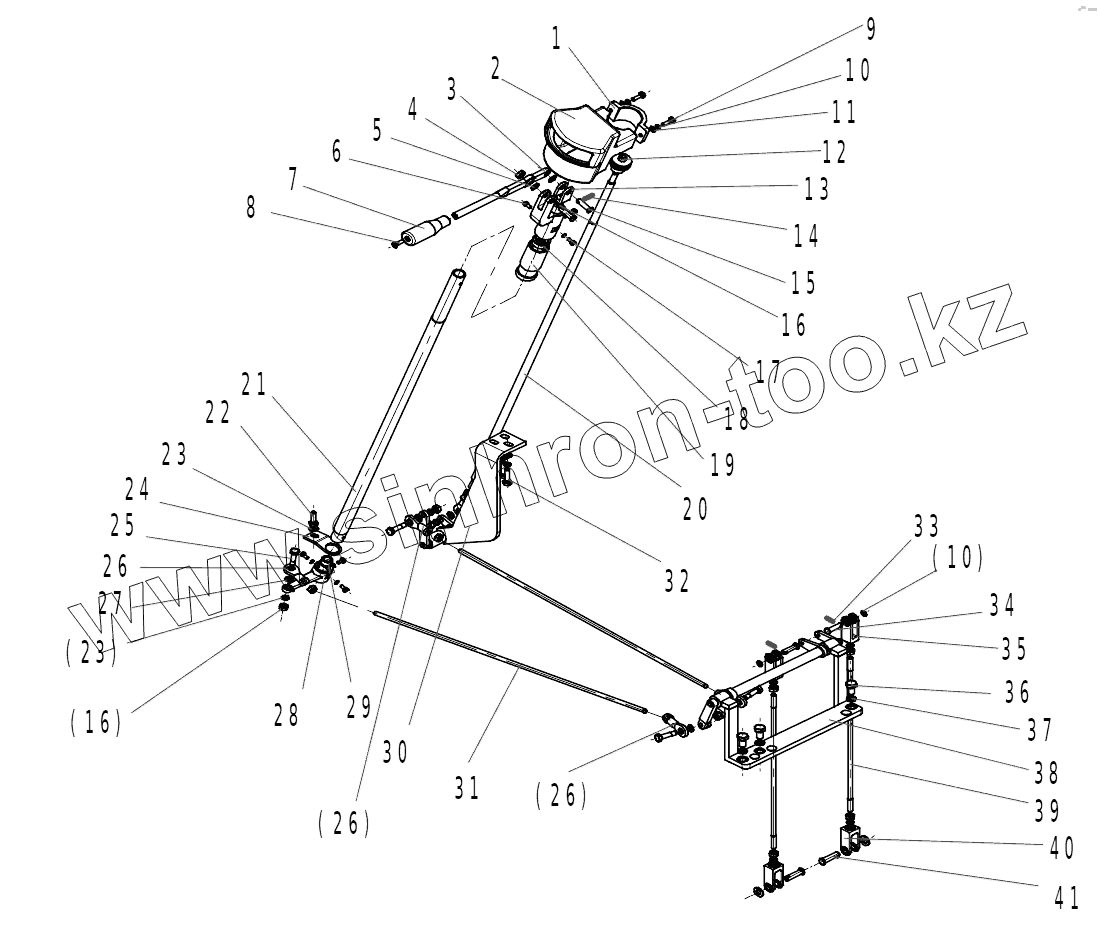

Каталог запасных частей к технике: SEM650B. GEARSHIFT CONTROL MECHANISM (ONE)
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
23
24
25
26
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z5A00703100 | Clip cover | |
| 2 | Z5A00702400 | Control | |
| 3 | Z5A00702501 | Handle | |
| 4 | B120520808 | Bearing | |
| 5 | B060410802 | Washer | |
| 6 | B040910510 | Bolt | |
| 7 | Z5A00701600 | Handle | |
| 8 | B010810620 | Screw | |
| 9 | B040910620 | Bolt | |
| 10 | B060410602 | Washer | |
| 11 | B060110602 | Lock washer | |
| 12 | Z5A00703200 | Seal cover | |
| 13 | Z5A00703000 | Yoke | |
| 14 | B080210009 | Cotter pin | |
| 15 | B080330830 | Pin | |
| 16 | B050330807 | Nut | |
| 17 | B060110501 | Lock washer | |
| 18 | Z5A00700200 | Sleeve | |
| 19 | Z5A00700100 | Sleeve | |
| 20 | Z5A00700300 | Shift pole | |
| 21 | Z5A00700400 | F/r pole | |
| 22 | B040910825 | Bolt | |
| 23 | B060110802 | Lock washer | |
| 24 | Z320070020 | Set plate | |
| 25 | Z320070040 | Bearing bolt | |
| 26 | B120910808 | Bearing si8e | |
| 27 | Z320070050 | Washer | |
| 28 | Z5A00700501 | Rocker | |
| 29 | Z320070060 | Aim sleeve | |
| 30 | Z5A00701800 | Bracket | |
| 31 | Z5A00703300 | Connecting rod | |
| 32 | B040910830 | Bole | |
| 33 | B080210220 | Cotter pin | |
| 34 | B080310630 | Pin | |
| 35 | Z510080100 | Jointing yoke | |
| 36 | B040911020 | Bolt | |
| 37 | B060111003 | Lock washer | |
| 38 | Z520070040 | Bracket assembly | |
| 39 | Z520070020 | Pole | |
| 40 | Z420070030 | Yoke head | |
| 41 | Z420070020 | Pin |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
