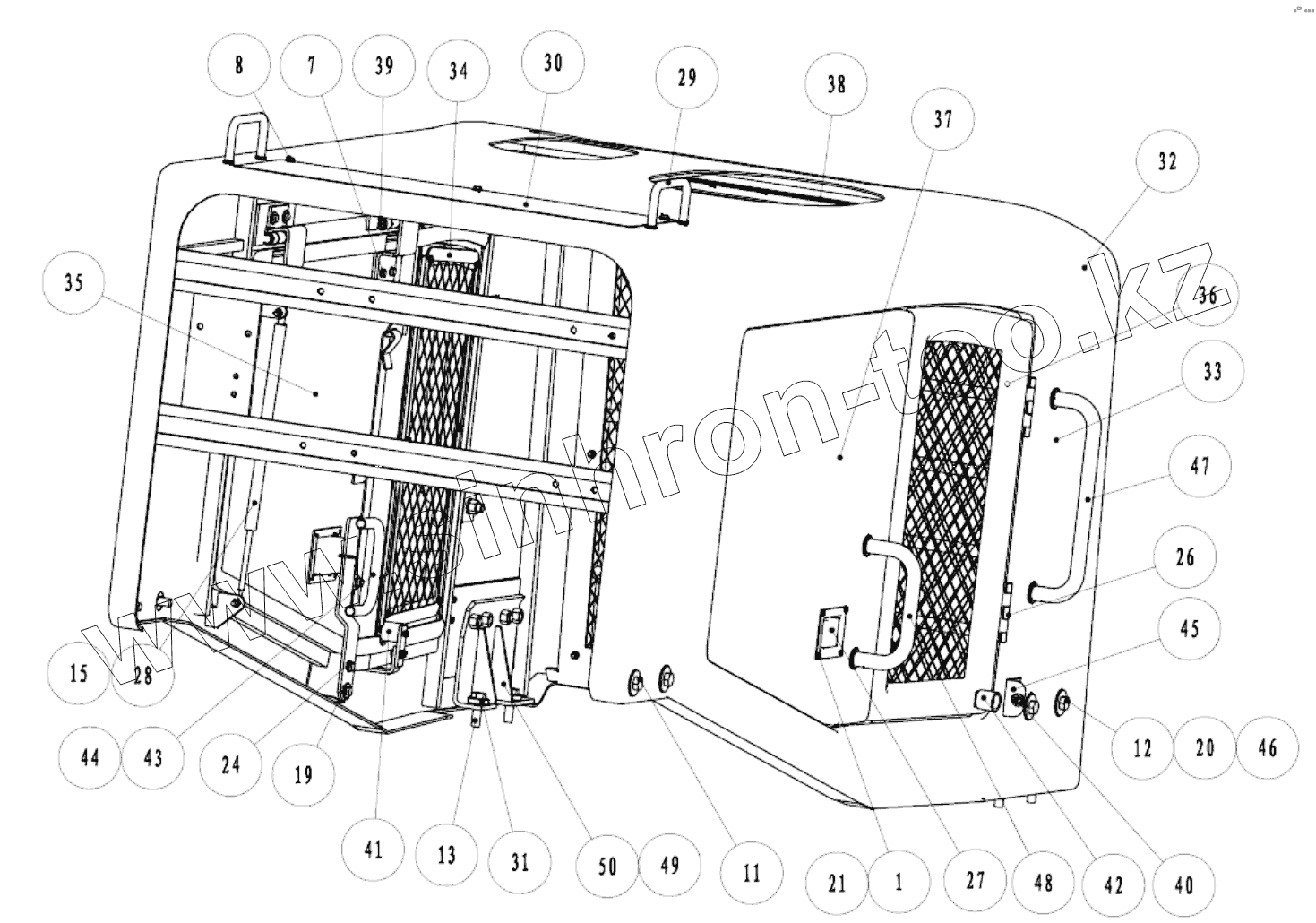

Каталог запасных частей к технике: SEM650B. ENGINE HOOD ASSEMBLY
NZ6B512001000 0
NZ6B012001000 0
1
7
8
11
12
13
15
19
20
24
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| NZ6B512001000 0 | NZ6B512001000 0 | 60 engine hood assembly | |
| NZ6B012001000 0 | NZ6B012001000 0 | 60 engine hood assembly | |
| 1 | B010810516 | Bolt | |
| 7 | B040910820 | Bolt | |
| 8 | B040910822 | Bolt | |
| 10 | B040911020 | Bolt | |
| 11 | B040911635 | Bolt | |
| 12 | B040911640 | Bolt | |
| 13 | B040911655 | Bolt | |
| 14 | B050330605 | Nut | |
| 15 | B060330807 | Nut | |
| 19 | B060331003 | Washer | |
| 20 | B060331602 | Washer | |
| 24 | B060411002 | Washer | |
| 26 | B240110001 | Hinge | |
| 27 | W110002390 | Lock | |
| 28 | W380000151B | Cylinder | |
| 29 | Z3B01202500 | Handle | |
| 30 | Z522070230 | Front cover | |
| 31 | Z5B513010 | Washer | |
| 32 | FIBERGLASS ENGINE HOOD ASSEMBLY | Fiberglass engine hood assembly | |
| 33 | Z6B01201200 | Rear grill assembly | |
| 34 | Z6B01202000 | Rear right side door assembly | |
| 35 | Z6B01202100 | Right side door assembly | |
| 36 | Z6B01202200 | Rear left side door assembly | |
| 37 | Z6B01202300 | Left side door assembly | |
| 38 | Z6B01203100 | Upper grill assembly | |
| 39 | Z6B01203800 | Hinge assembly | |
| 40 | Z6B012054 | Plug | |
| 41 | Z6B012056 | Mounting connecting assembly | |
| 42 | Z6B012057 | Rubber seat assembly | |
| 43 | Z6B012060 | Left handle assembly | |
| 44 | Z6B012061 | Right handle assembly | |
| 45 | Z6B012065 | Plate i | |
| 46 | Z6B012074 | Mounting seat | |
| 47 | Z6B012075 | Rear handle assembly | |
| 48 | Z6B012077 | Front hanle assembly | |
| 49 | Z6B501007 | Left side bracket assembly | |
| 50 | Z6B501011 | Right side bracket assembly |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
