Каталог запасных частей к технике: SEM650B. ELECTRIC SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
52
53
54
55
56
57

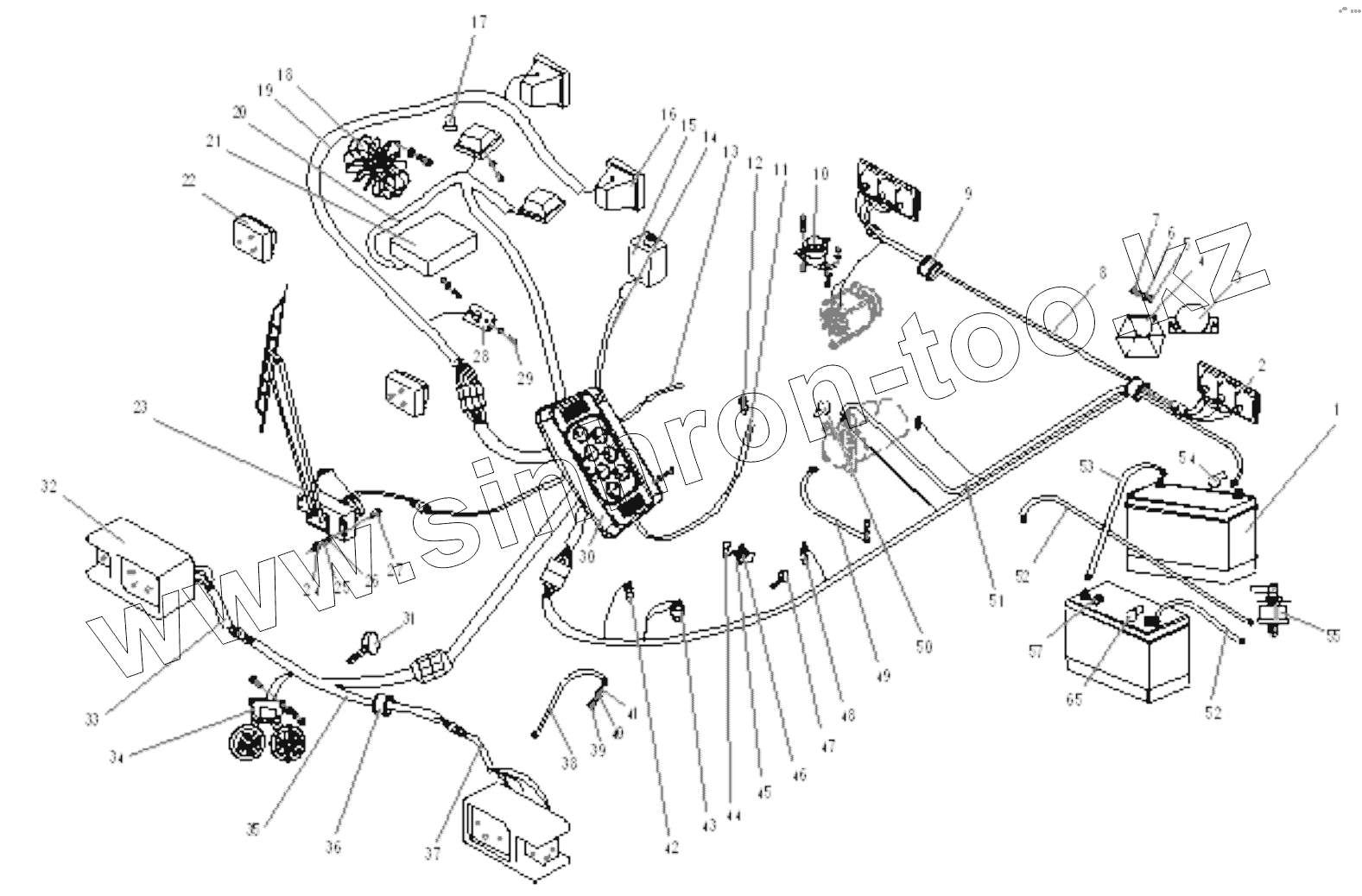

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | W110024670 | Battery | |
| 2 | W370000320A | Rear combined lamp | |
| 3 | W370000010A | Alarm | |
| 4 | Z5A02102900 | Alarm box | |
| 5 | B060410602 | Washer | |
| 6 | B060110602 | Lock washer | |
| 7 | B040910620 | Bolt | |
| 8 | Z5B02100100 | Harness on rear frame | |
| 9 | Z5A02102200 | Cover for harness | |
| 10 | W110024070 | Main power switch | |
| 11 | Z420210040 | Oil pipe for oil pressure meter | |
| 12 | Z320210190 | Oil pipe joint for oil pressure meter | |
| 13 | Z5A02100400 | Harness for pilot valve | |
| 14 | Z5A02100700 | Harness for washer | |
| 15 | W370000040A | Washer | |
| 16 | W370000330A | Rear lamp | |
| 17 | W110009990 | Beacon | |
| 18 | W370000160B | Fan | |
| 19 | Z3A02101600 | Harness on ceiling | |
| 20 | Z5A02100500 | Harness for radio | |
| 21 | W370000030A | Radio | |
| 22 | W370000420A | Anti-fog lamp | |
| 23 | W370000340A | Wiper | |
| 24 | B050330807 | Nut | |
| 25 | B060410802 | Washer | |
| 26 | B060110802 | Lock washer | |
| 27 | B040910820 | Bolt | |
| 28 | W370000020A | Ceiling lamp | |
| 29 | B010210616 | Bolt | |
| 30 | W370200000A | Dash panel | |
| 31 | W370000370A | Clip | |
| 32 | W370000310A | Front combined lamp | |
| 33 | Z5A02102500 | Harness for front lamp | |
| 34 | W110022050 | Horn | |
| 35 | Z5A02100100 | Harness on front frame | |
| 36 | Z320210020 | Cover for harness | |
| 37 | Z5A02102400 | Harness for front lamp | |
| 38 | Z520210320 | Battery cable | |
| 39 | B040911020 | Bolt | |
| 40 | B060411002 | Washer | |
| 41 | B060111003 | Lock washer | |
| 42 | W110023910 | Switch of pressure | |
| 43 | W370400000 | Pressure switch for brake indicate | |
| 44 | Z520210310 | Plank for reversing light | |
| 45 | Z520210300 | Fixation for reversing light | |
| 46 | W110022970 | Rear lamp switch | |
| 47 | W11001370 | Clip | |
| 48 | W370000070A | Sensing plug for temperature | |
| 49 | Z520210330 | Battery cable | |
| 50 | W370000070 | Cover | |
| 51 | Z5A02102000 | Battery cable | |
| 52 | Z3A02101800 | Battery cable | |
| 53 | Z520210340 | Battery cable | |
| 54 | W110024960 | Cover for positive terminal | |
| 55 | W110025560 | Disconnected switch | |
| 56 | W110024970 | Cover for negative terminal | |
| 57 | W110024810 | Battery terminal clamp |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
