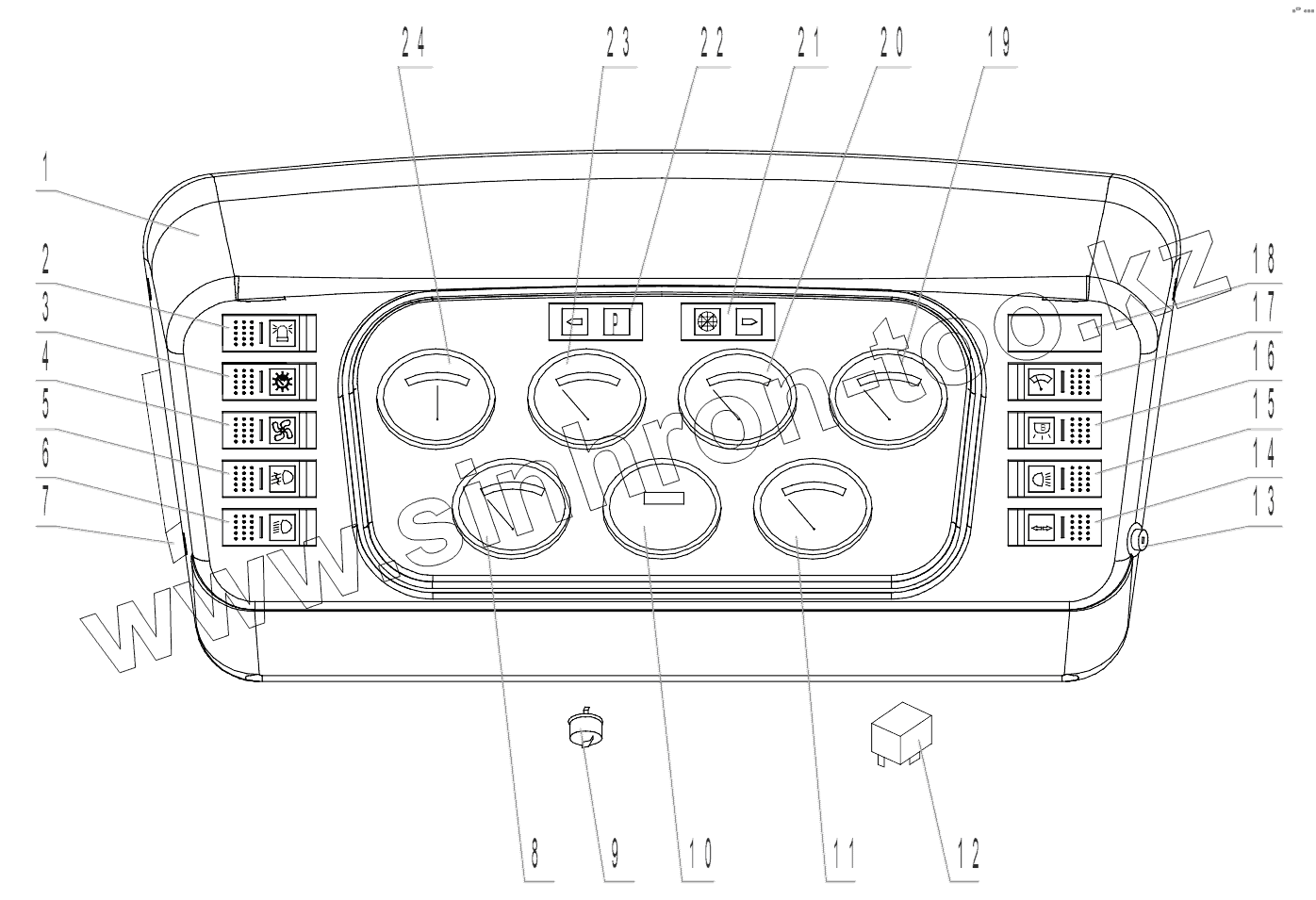

Каталог запасных частей к технике: SEM650B. DASH PANEL ASSEMBLY
W110023950
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| W110023950 | W110023950 | Oil pressure hose | |
| 1 | W370200000A | Dash panel | |
| 2 | W110023660 | Beacon switch | |
| 3 | W110000640 | Panel lamp switch | |
| 4 | W110000710 | Fan switch | |
| 5 | W110000670 | Anti-fog lamp switch | |
| 6 | W110000760 | Front lamp switch | |
| 7 | W370200010A | Fuse box | |
| 8 | W110002810 | Enging coolant thermometer | |
| 9 | W110001200 | Steering flasher | |
| 10 | W110023670 | Hourmeter | |
| 11 | W110002830 | Oil thermomter | |
| 12 | W110030400 | Start relay | |
| 13 | W370200040A | Electric lock | |
| 14 | W110006780 | Steering switch | |
| 15 | W110004720 | Rear lamp switch | |
| 16 | W110000650 | Ceiling lamp switch | |
| 17 | W110000730 | Wiper switch | |
| 18 | W110007470 | Cover | |
| 19 | W110002780 | Air pressure | |
| 20 | W110023650 | Oil pressure | |
| 21 | W370200020A | Steering indicating light | |
| 22 | W370200030A | Steering indicating light | |
| 23 | W110009000 | Enging oil pressure | |
| 24 | W370000080A | Valtage |
