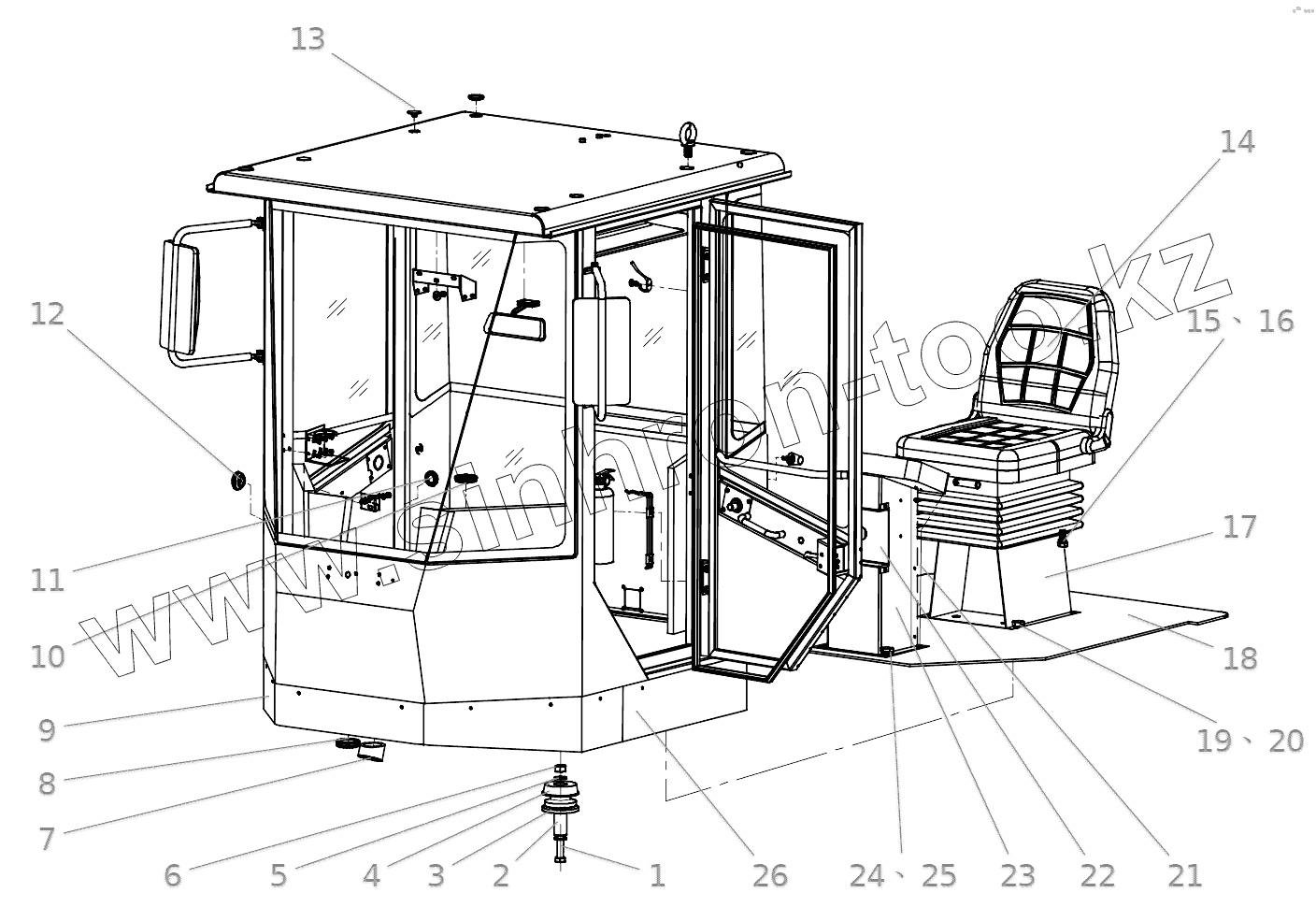

Каталог запасных частей к технике: SEM650B. CAB ASSEMBLY (TWO)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
21
24
25
26
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | B040912130 | Bolt м20х130 | |
| 2 | Z3A00420000 | Lining | |
| 3 | Z3A00420100 | Flat washer | |
| 4 | W105000000A | Cab mount | |
| 5 | B060412003 | Washer | |
| 6 | B050332018 | Nut | |
| 7 | Z3A00422100 | Steering column grommet | |
| 8 | Z320050080 | Grommet | |
| 9 | Z3A00400100 | Front guard | |
| 10 | Z3A00403300 | Rubber cover iii | |
| 11 | Z3A00401800 | Rubber cover | |
| 12 | Z3A00415600 | Rubber cover iv | |
| 13 | Z3A00401100 | Rubber cover i | |
| 14 | W100000030B | Seat | |
| (14) | W102000000A | Seat | |
| 15 | B060310802 | Washer | |
| 16 | B040910816 | Bolt | |
| 17 | Z3A00404400 | Seat support | |
| 18 | Z3A00422000 | Floormat | |
| 19 | B060311003 | Flat washer | |
| 20 | B040911025 | Bolt | |
| 21 | Z3A00422600 | Pedestal cover | |
| 21 | Z3A00423600 | Cover | |
| 21 | Z3A00421600 | Pedestal | |
| 24 | B060411203 | Washer | |
| 25 | B040911230 | Bolt | |
| 26 | Z3A00401900 | Side guard |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
