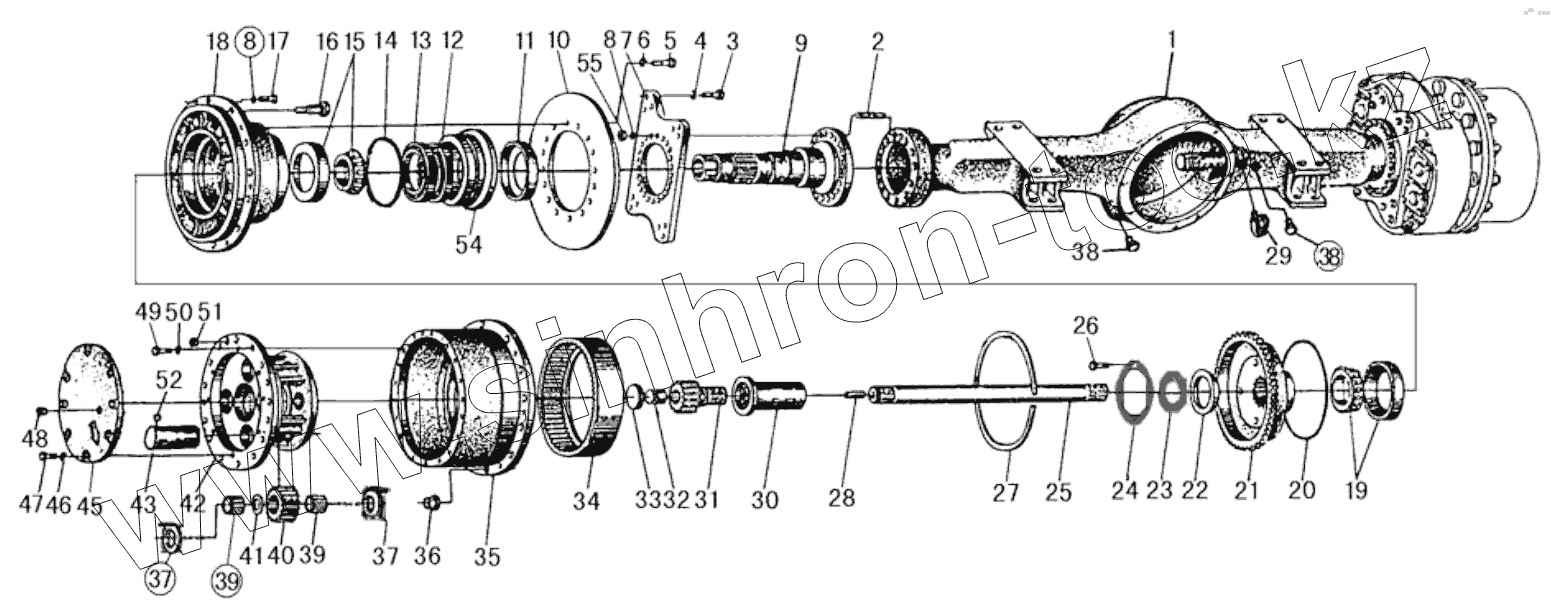

Каталог запасных частей к технике: SEM650B. AXLE ASSEMBLY FRONT

Тип техники

Марка

Модель

Схема

B050462017

Z62059090

1

2

3

4

5

6

7

8

8

9

10

11

12

14

15

16

17

18

19

20

21

22

22

22

22

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

36

37

37

38

38

39

39

40

41

42

43

45

46

47

48

49

50

51

52

Позиция на иллюстрации	Заводской номер детали		Название детали
B050462017	B050462017		Nut
Z62059090	Z62059090		Seal retainer
1	Z620590140		Axle case
2	Z620590230		Bolt
3	B040912055		Bolt
4	B060112005		Washer
5	B041691645		Bolt
6	Z6205903800		Plate
7	Z610240380		Support for brake pliers
8	B060462003		Washer
9	Z620590160		Spindle
10	Z610240351		Brake disc
11	Z6205903900		Dust ring
12	W044100550		Seal ring
14	B160141751		O-ring
15	B120400033		Bearing
16	B050412218		Nut
17	Z610240020		Rim bolt
18	Z610240340		Hub
19	B120400015		Bearing 2007128e
20	B160153870		O-ring
21	Z620590150		Gear ring carrier
22	Z620590190		Adjust washer
22	Z620590220		Adjust washer
22	Z620590210		Adjust washer
22	Z620590180		Adjust washer
22	Z620590200		Adjust washer
23	Z620590240		Lock nut
24	Z620590250		Lock ring
25	Z610240320		Shaft
26	B040960816		Bolt
27	Z610240300		Snap ring
28	Z610240210		Screw
29	Z620590310		Breather assembly
30	Z610240200		Joint sleeve
31	Z610240241		Sun gear
32	Z610240230		Adjusting column
33	Z610240220		Spacer
34	Z610240110		Gear ring
35	Z610240090		Mid-segment
36	Z610240020		Rim bolt
36	Z610241080		Rim bolt
37	Z620590260		Planet gear spacer
38	Z640060320		Thread plug
39	Z610240170		Needle
40	Z610240121		Planet gear
41	Z610240160		Partition harness
42	Z620590170		Planet gear frame
43	Z610240151		Planet gear shaft
45	NZ61024014000		End cover
46	B060111404		Washer
47	B041111430		Bolt
48	B110500304		Plug
49	Z610240290		Bolt
50	B060511603		Washer
51	B110500102		Plug
52	B120710953		Steal ball

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
