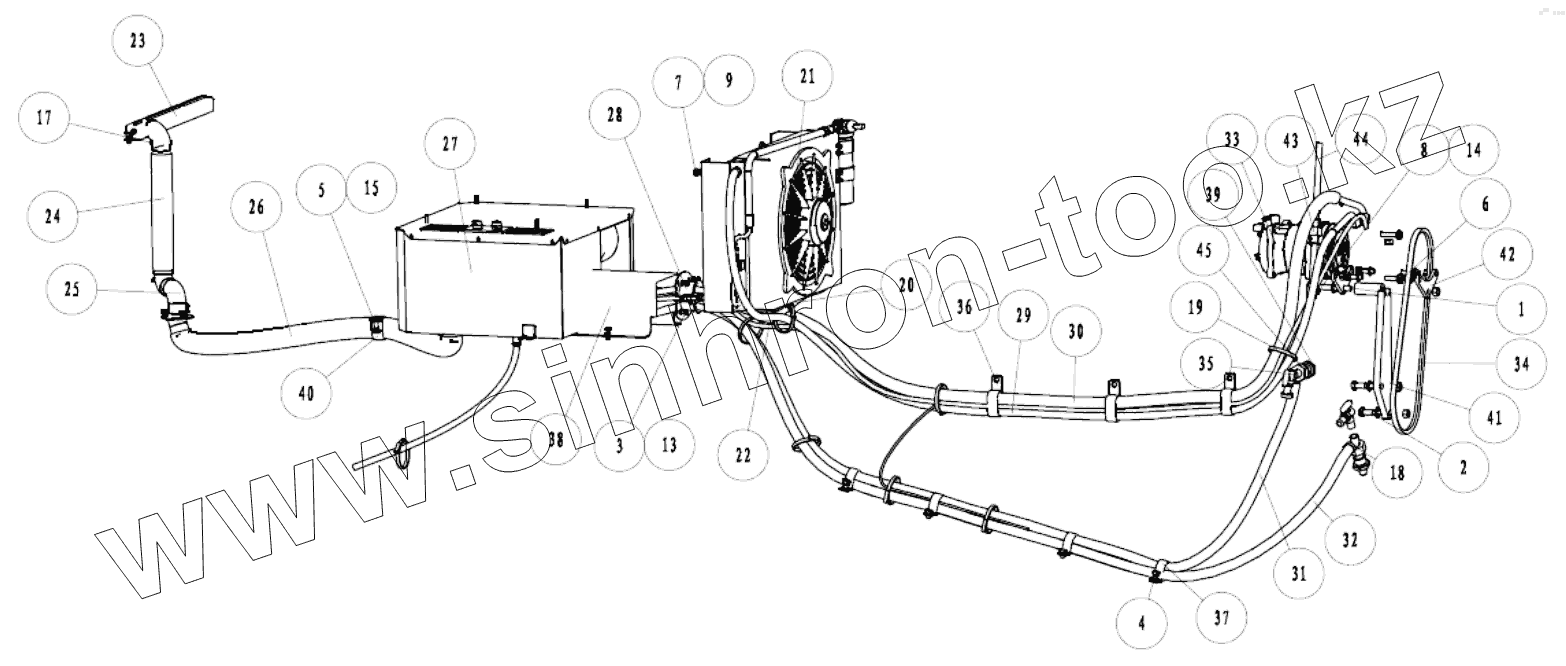

Каталог запасных частей к технике: SEM650B. AIR CONDITIONER SYSTEM (WD615)
1
2
3
4
5
6
7
8
9
13
14
15
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | B040810010 | Bolt | |
| 2 | B040811255 | Bolt | |
| 3 | B040910612 | Bolt | |
| 4 | B040911012 | Bolt | |
| 5 | B040911025 | Bolt | |
| 6 | B040911035 | Bolt | |
| 7 | B040911045 | Bolt | |
| 8 | B050331008 | Nut | |
| 9 | B050331008 | Nut | |
| 13 | B060410602 | Washer | |
| 14 | B060410802 | Washer | |
| 15 | B060411002 | Washer | |
| 16 | B060411203 | Washer | |
| 17 | B190110500 | Hose clamp | |
| 18 | B190120250 | Hose clamp | |
| 19 | W110001370 | Clip | |
| 20 | W300300020A | Hose | |
| 21 | W300400010B | Condenser | |
| 22 | W300900400B | Wiring harness | |
| 23 | W370000010B | Defrosting louver | |
| 24 | W370000020B | Inner defrosting | |
| 25 | W370000030B | Coupler | |
| 26 | W370000040B | Outer defrosting tube | |
| 27 | W370000050B | Evaporator | |
| 28 | W370000070B | Tube bracket | |
| 29 | W370000080B | Compressor to condition tube | |
| 30 | W370000090B | Evaporator to compressor tube | |
| 31 | W370000100B | Warm tube | |
| 32 | W370000110B | Cool tube | |
| 33 | W370000120B | Compressor | |
| 34 | W370000130B | Compressor belt | |
| 35 | W370000140B | Manul water valve | |
| 36 | W3A02700700 | Clip | |
| 37 | Z520180870 | Clip | |
| 38 | Z5A02700600 | Coupler cover | |
| 39 | Z5A02700700 | Inlet coupler | |
| 40 | Z5A02700900 | Clip | |
| 41 | Z5B02700100 | Compressor bracket | |
| 42 | Z5B02700400 | Compressor plate | |
| 43 | Z5B02700500 | Compressor joint | |
| 44 | Z5B02700600 | Compressor adjusting bolt | |
| 45 | Z5B02700700 | Coupling |
