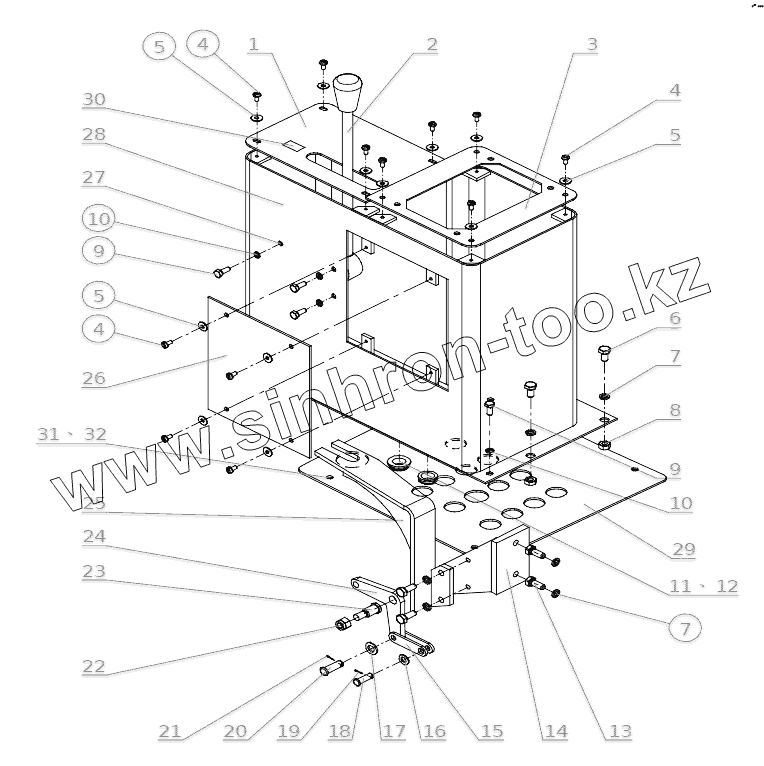

Каталог запасных частей к технике: SEM650B. 50 PILOT CONTROL MECHANISM ASSEMBLY
1
2
3
4
4
4
5
5
5
6
7
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z5B70100100 | Cover | |
| 2 | W102400000B | High-low control | |
| 3 | Z3A00500403 | Pilot valve cover | |
| 4 | B010210612 | Screw | |
| 5 | B060310601 | Washer | |
| 6 | B040911020 | Bolt | |
| 7 | B060111003 | Lock washer | |
| 8 | B050331008 | Nut | |
| 9 | B040910820 | Bolt | |
| 10 | B060110802 | Lock washer | |
| 11 | Z3A00422400 | Seal mat | |
| 12 | Z3A00422500 | Seal mat | |
| 13 | B040911025 | Bolt | |
| 14 | Z320840031 | Bracket | |
| 15 | Z320840040 | Connecting plate | |
| 16 | B060211002 | Washer | |
| 17 | B060211203 | Washer | |
| 18 | B080311030 | Shaft pin | |
| 19 | B080210007 | Retainer pin | |
| 20 | B080311235 | Shaft pin | |
| 21 | B080210420 | Retainer pin | |
| 22 | B050211210 | Nut | |
| 23 | Z420090080 | Shaft pin | |
| 24 | Z320840120 | Bend arm | |
| 25 | Z320840021 | Bracket | |
| 26 | Z3A00500701 | Right cover | |
| 27 | B050330807 | Nut | |
| 28 | Z3A00500103 | Pilot valve frame | |
| 29 | Z5B70100200 | Seal cover | |
| 30 | W110007470 | Cover | |
| 31 | B040910620 | Bolt | |
| 32 | B060410602 | Washer |
