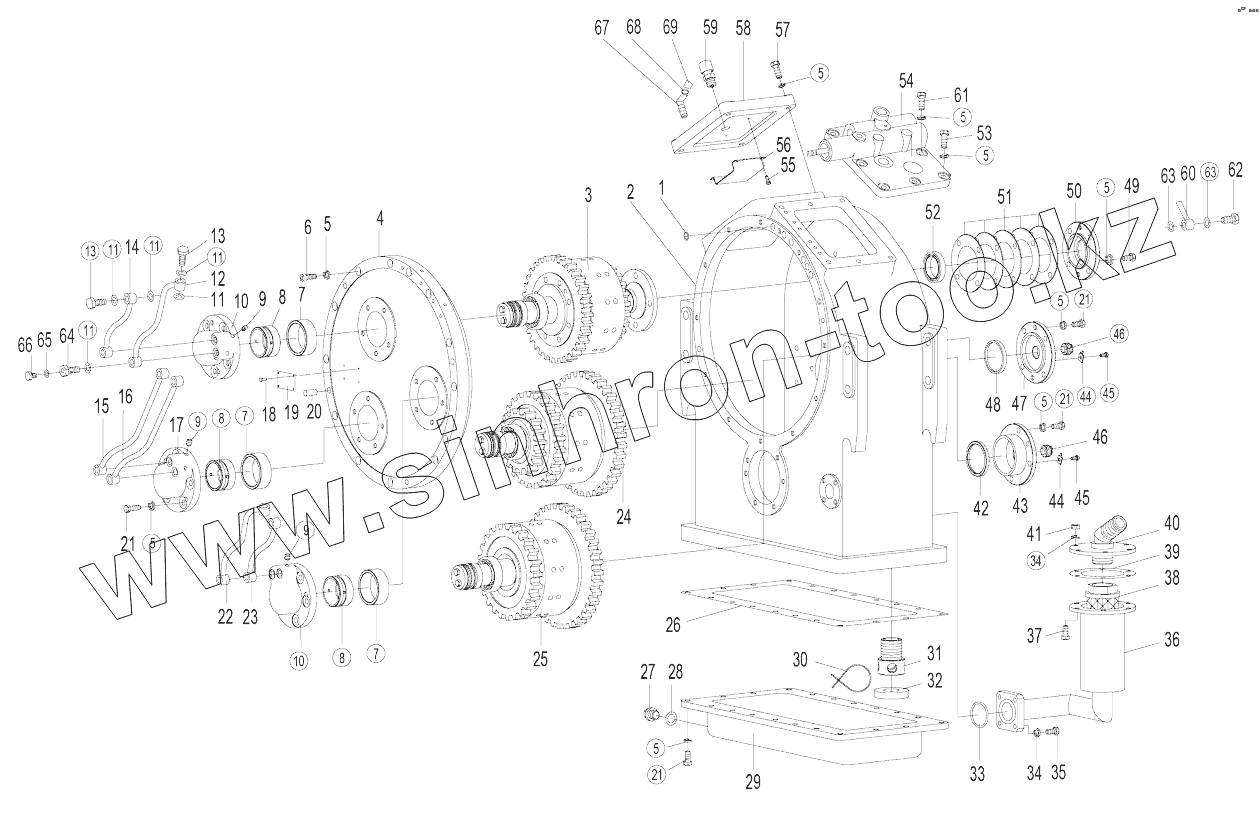

Каталог запасных частей к технике: SEM639C. Gear box
1
2
3
4
5
5
5
5
5
5
5
5
5
6
7
7
7
8
8
8
9
9
9
10
10
11
11
11
11
11
12
13
13
14
15
16
17
18
19
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
35
36
37
38
39
40
41
42
43
44
44
45
45
46
46
47
48
49
50
51
51
51
51
51
52
53
54
55
56
57
58
59
60
61
62
63
63
64
65
66
67
68
69
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | B160120085 | O ring | |
| 2 | Z3204700102 | Housing | |
| 3 | Z320470720 | Clutch | |
| 4 | Z320470031 | Large end cover | |
| 5 | B060111003 | Lock washer | |
| 6 | B010411030 | Screw | |
| 7 | Z320470040 | Sleeve | |
| 8 | Z320470060 | Sleeve | |
| 9 | B110400108 | Thread plug | |
| 10 | NZ32047005100 | Oil inlet cover | |
| 11 | B060811203 | Compound seal | |
| 12 | Z320471530 | st gear vitta | |
| 13 | Z320471500 | Hollow bolt | |
| 14 | Z320471510 | Wbricating vitta | |
| 15 | Z320471550 | st gear vitta | |
| 16 | Z320471570 | Wbricating vitta | |
| 17 | NZ32047007100 | Inlet cover | |
| 18 | B090110205 | Rivet | |
| 19 | Plate | Plate | |
| 20 | B080121240 | Pin | |
| 21 | B040911030 | Bolt | |
| 22 | Z320471590 | Wbricating vitta | |
| 23 | Z320471610 | Reveres gear vitta | |
| 24 | Z320470460 | Clutch | |
| 25 | Z320470770 | Clutch | |
| 26 | Z320470190 | Paper gasket | |
| 27 | Z200020720 | Screw | |
| 28 | B160120224 | O ring | |
| 29 | Z320470180 | Oil pan | |
| 30 | Slackwire2x120 | Slack wire | |
| 31 | Z320470400 | Suction tube | |
| 32 | Z320470390 | Magnet | |
| 33 | B160130425 | O ring | |
| 34 | B060110802 | Lock washer | |
| 35 | B040910835 | Bolt | |
| 36 | W031600000 | Oil filter | |
| 37 | B040910825 | Bolt | |
| 38 | Z320470910 | Element | |
| 39 | Spacer | Spacer | |
| 40 | Adaptersay | Adapter say | |
| 41 | B050330807 | Nut | |
| 42 | Z3204702401 | Adjusting spacer | |
| 43 | Z3204702301 | End cover Middle shaft | |
| 44 | Z320470210 | Lock plate | |
| 45 | B040910606 | Bolt | |
| 46 | Z320470220 | Adjusting screw | |
| 47 | Z3204703201 | End cover reverse | |
| 48 | Z3204703301 | Adjusting spacer | |
| 49 | Z320471420 | Bolt | |
| 50 | Z320470261 | End cover, input shaft | |
| 51 | Z320470271 | Shim | |
| 51 | Z320470281 | Shim | |
| 51 | Z320470291 | Shim | |
| 51 | Z320470301 | Shim | |
| 51 | Z320470311 | Shim | |
| 52 | B160210036 | Oil seal | |
| 53 | B040911050 | Bolt | |
| 54 | Z320471140 | Gear control valve | |
| 55 | B010210410 | Screw | |
| 56 | Z320470410 | Cover | |
| 57 | B040911035 | Bolt | |
| 58 | Z320470422 | Transmission cover | |
| 59 | Z320471040 | Breath tool | |
| 60 | Z3204716701 | Low pressure hose | |
| 61 | B040811055 | Bolt | |
| 62 | B041200002 | Bolt | |
| 63 | B060811002 | Washer | |
| 64 | Z320471700 | Bolt | |
| 65 | B110601010 | Plug | |
| 66 | B060901002 | Washer | |
| 67 | Z321260060 | Connector | |
| 68 | B190120250 | Hose clamp | |
| 69 | Z3B302001 | Hose |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
