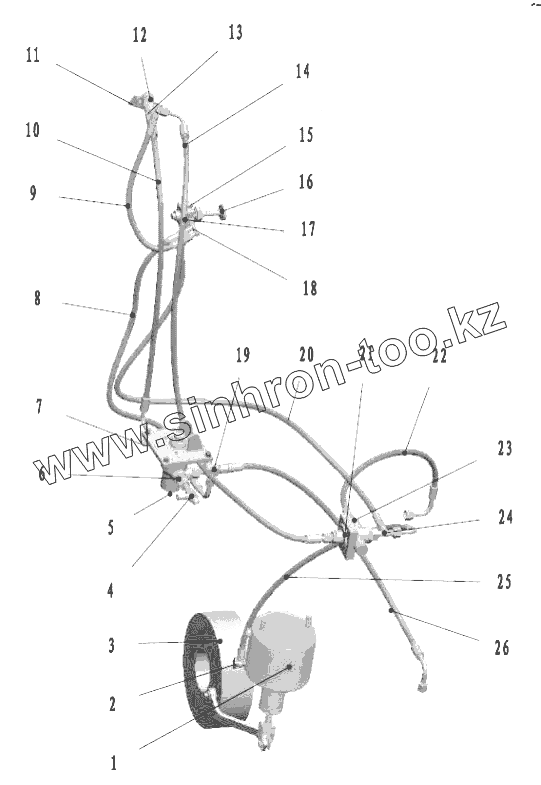

Каталог запасных частей к технике: SEM639C. Braking cab assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | W080900000 | Braking chamber | |
| 2 | Z510100690 | Hollow bolt | |
| 3 | Z310340431 | Braking assembly | |
| 4 | Z5101008600 | T-connection fitting | |
| 5 | W110000100 | Air brake valve | |
| 6 | Z310340020 | Separator Fitting | |
| 7 | Z420220130 | T-connection fitting | |
| 8 | Z3B371002 | Brake hose assembly | |
| 9 | Z3B022016 | BarometerHose assembly | |
| 10 | Z520220300 | Brake hose | |
| 11 | Z520220280 | Switch valveNameplate | |
| 12 | W110020910 | Switch valve | |
| 13 | Z520220270 | Fitting | |
| 14 | Z5A02201300 | Brake hose | |
| 15 | Z320220060 | Unpowered braking valve Plug | |
| 16 | W110000090 | Unpowered braking valve | |
| 17 | Z310340060 | Connection fitting | |
| 18 | Z320220260 | T-connection fitting | |
| 19 | Z5B02200900 | Four-way adapter | |
| 20 | Z310340830 | Unpowered braking valve hose | |
| 21 | W110000140 | Air control valve | |
| 22 | Z520220220 | Brake hose | |
| 23 | Z310340050 | Air control valveFitting | |
| 24 | Z310340790 | T-connection fitting | |
| 25 | Z3B376008 | Brake hose assembly | |
| 26 | Z3B02200300 | Brake hose |
