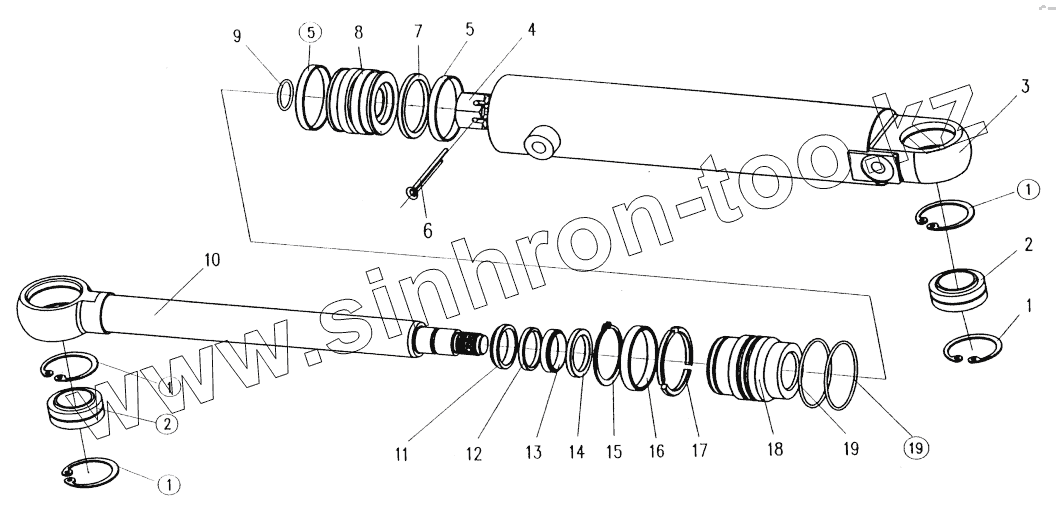

Каталог запасных частей к технике: SEM639B. Steering cylinder W050600000B
1
1
1
1
2
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| W050600000B | W050600000B | Steering cylinder | |
| 1 | Snap ring 62 | Snap ring | |
| 2 | B120524028 | Joint bearing | |
| 3 | Cylinder block | Cylinder block | |
| 4 | Slot nut M30x2 | Slot nut | |
| 5 | Support ring | Support ring | |
| 6 | Split pin 5x50 | Split pin | |
| 7 | Combined slide ring | Combined slide ring | |
| 8 | Piston | Piston | |
| 9 | “O-ring 32x3.1 | O-ring | |
| 10 | Piston rod | Piston rod | |
| 11 | Dust ring d45xD55x10 | Dust ring | |
| 12 | Snap ring d45xD53x2 | Snap ring | |
| 13 | Seal ring of parker | Seal ring of parker | |
| 14 | Combined slide ring | Combined slide ring | |
| 15 | Snap ring 72 | Snap ring | |
| 16 | Snap ring | Snap ring | |
| 17 | Clip for hole | Clip for hole | |
| 18 | Guide sleeve | Guide sleeve | |
| 19 | “O-ring 80x3.1 | O-ring |
