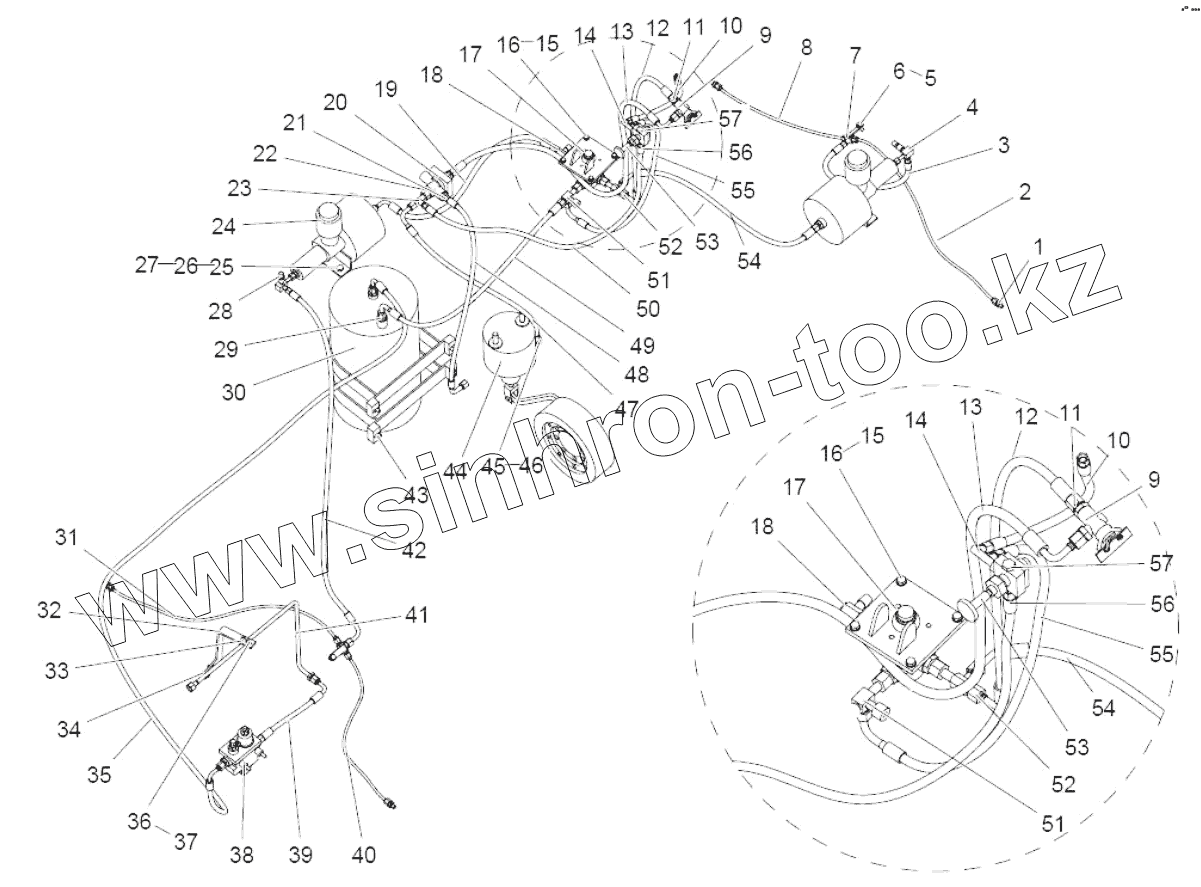

Каталог запасных частей к технике: SEM639B. Brake system assembly Z3B377000
Z3B377000
Z3B377000
1
2
3
4
5
6
7
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
51
52
52
53
53
54
54
55
55
56
56
57
57
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| Z3B377000 | Z3B377000 | Brake system assembly | |
| 1 | Z320220020 | Fitting | |
| 2 | Z520220130 | Brake hose | |
| 3 | Z3A02200400 | Brake hose | |
| 4 | Z5202209100 | T-connection fitting | |
| 5 | B060411002 | Washer | |
| 6 | B040911020 | Bolt | |
| 7 | Z3212702100 | T-connection fitting | |
| 8 | Z330220050 | Brake hose II | |
| 9 | W110020910 | Switch valve | |
| 10 | Z3B022016 | BarometerHose assembly | |
| 11 | Z520220270 | Fitting | |
| 12 | Z520220300 | Brake hose | |
| 13 | Z5A02201300 | Brake hose | |
| 14 | Z320220260 | T-connection fitting | |
| 15 | B060410802 | Washer | |
| 16 | B040910820 | Bolt | |
| 17 | W110000100 | Air brake valve | |
| 18 | Z5101008600 | T-connection fitting | |
| 19 | Z1B02200500 | Rake hose | |
| 20 | W110000140 | Air control valve | |
| 21 | Z310340050 | Air control valveFitting | |
| 22 | B060811403 | Washer | |
| 23 | Z310340790 | T-connection fitting | |
| 24 | W062100000 | Air pressure booster | |
| 25 | B040911230 | Bolt | |
| 26 | B050331211 | Nut | |
| 27 | B060411203 | Washer | |
| 28 | W152200000 | Pressure tap | |
| 29 | Z310340020 | Separator Fitting | |
| 30 | W082900000B | Air-tank | |
| 31 | Z320540030 | Tube | |
| 32 | Z3B02200900 | Bracket | |
| 33 | Z310530100 | U bolt | |
| 34 | B040910620 | Bolt | |
| 35 | Z3B390006 | Braking hose assembly | |
| 36 | B050330605 | Nut | |
| 37 | B060410602 | Washer | |
| 38 | W110000160 | Fuel water separator valve | |
| 39 | Z3B02200500 | Brake hose assembly | |
| 40 | Z330220030 | Brake hose | |
| 41 | Z3B02200700 | Air compressor outlet | |
| 42 | Z3B371001 | Brake hose assembly | |
| 43 | B040911040 | Bolt | |
| 44 | W080900000 | Braking chamber | |
| 45 | B060811203 | Compound seal | |
| 46 | Z510100690 | Hollow bolt | |
| 47 | Z3B376008 | Brake hose assembly | |
| 48 | Z520220220 | Brake hose | |
| 49 | Z3B02200300 | Brake hose | |
| 50 | Z310340830 | Unpowered braking valve hose | |
| 51 | Z5B02200900 | Four-way adapter | |
| 52 | Z420220130 | T-connection fitting | |
| 53 | W110000090 | Unpowered braking valve | |
| 54 | Z5B336014 | Brake hose | |
| 55 | Z3B371002 | Brake hose assembly | |
| 56 | Z310340060 | Connection fitting | |
| 57 | Z320220060 | Unpowered braking valve Plug |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
