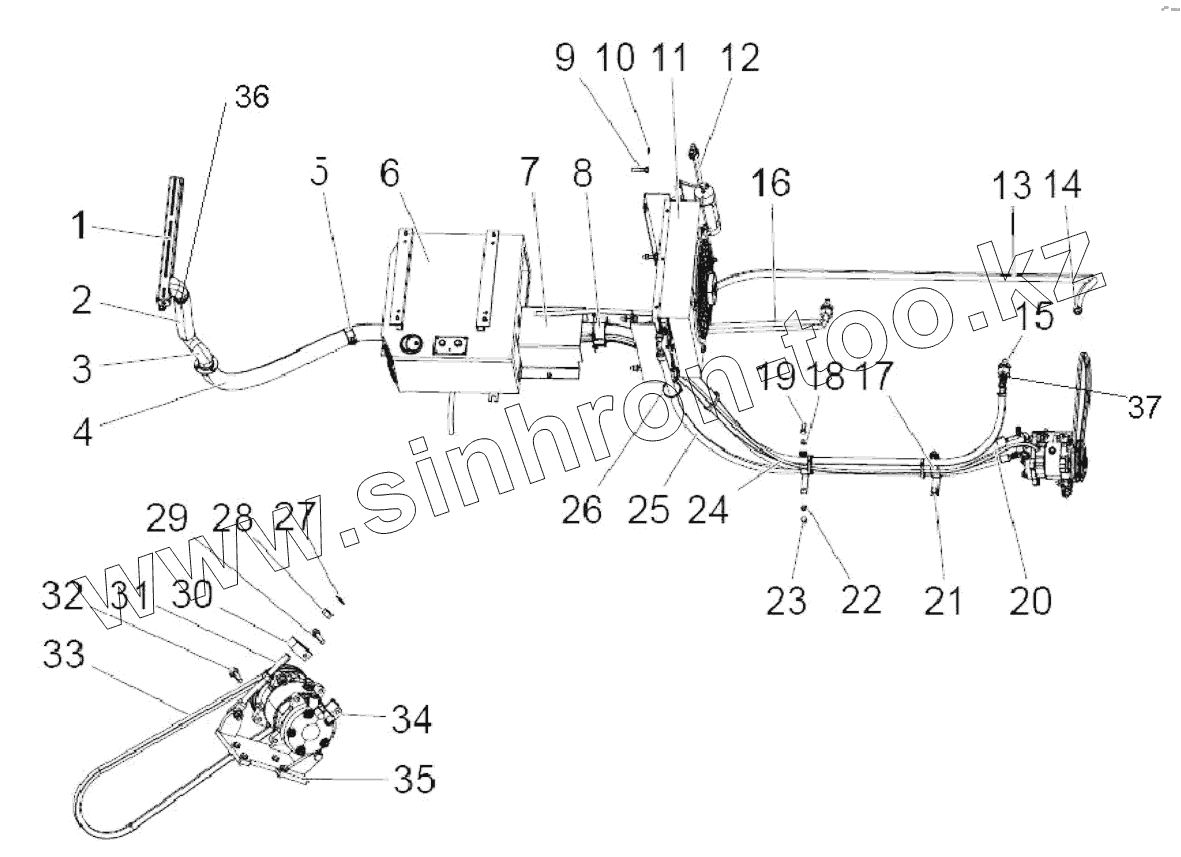

Каталог запасных частей к технике: SEM639B. Air conditioning system assembly Z3B721000
Z3B721000
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| Z3B721000 | Z3B721000 | Air conditioning system assembly | |
| 1 | W48000097 | Defroster | |
| 2 | W48000098 | Inner defrosting | |
| 3 | W48000099 | Coupler | |
| 4 | W48000100 | Outer defrosting tube | |
| 5 | Z5A02700900 | Clip | |
| 6 | W48003001 | Evaporator | |
| 7 | Z5A02700600 | Coupler cover | |
| 8 | W48000101 | Tube bracket assembly | |
| 9 | B040911045 | Bolt | |
| 10 | B060331003 | Washer | |
| 11 | W48000116 | Condenser | |
| 12 | W48000113 | Hose assembly | |
| 13 | W48000090 | Warm water PipeI | |
| 14 | B190120250 | Hose clamp | |
| 15 | Z329010070 | Connection fitting | |
| 16 | W48000112 | Pompeii | |
| 17 | Z3A02700700 | Clip | |
| 18 | B050331008 | Nut | |
| 19 | B040911025 | Bolt | |
| 20 | W48000106 | To compressor tube | |
| 21 | Z3A02700500 | Tube bracketed | |
| 22 | B060411002 | Washer | |
| 23 | B040911020 | Bolt | |
| 24 | W46000092 | HVAC harness | |
| 25 | W48000104 | Cool high pressure hose | |
| 26 | W370000370A | Clip | |
| 27 | B060411203 | Washer | |
| 28 | B050331211 | Nut | |
| 29 | B040911040 | Bolt | |
| 30 | Z420270020 | Retaining plate | |
| 31 | Z3B02700500 | Compressor adjusting rod | |
| 32 | B040911035 | Bolt | |
| 33 | W48000103 | Compressor belt | |
| 34 | W300600900B | Compressor | |
| 35 | Z3B02700100 | Compressor bracket | |
| 36 | NB19011050000 | Hose clamp | |
| 37 | W300601200B | Manul water Valve |
