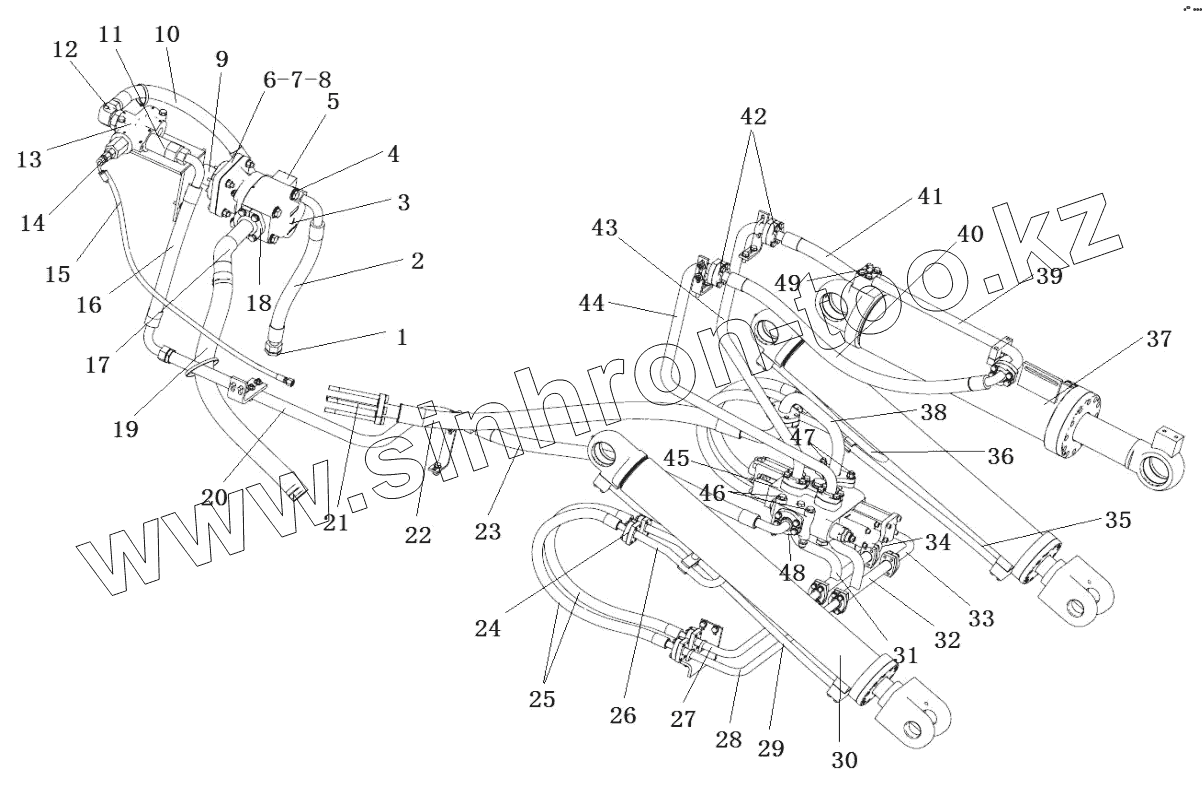

Каталог запасных частей к технике: SEM636D. Working device hydraulic system
1
2
3
4
5
5
5
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
18
19
20
21
22
22
23
24
25
26
27
28
29
30
30
31
31
32
33
34
35
36
37
38
38
39
39
40
41
42
43
43
44
45
46
47
48
49
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | W42000297 | Plug | |
| 2 | Z3B266001 | High pressure hose assembly | |
| 3 | W42201000 | Pump | |
| 4 | 5190416 | Pump joint | |
| 5 | Z3B266003 | Manifold | |
| 5 | B160130375 | O-ring | |
| 6 | Z3B20010300 | Pump Joint plate | |
| 7 | Z310260030 | Washer | |
| 8 | Z5A20202700 | Gasket | |
| 9 | Z3B20000100 | Oil pump connecting sleeve | |
| 10 | Z3D019005 | High pressure hose assembly | |
| 11 | Z3D019007 | Fitting | |
| 12 | W272400000A | Fitting | |
| 13 | W270500000B | Priority valve | |
| 14 | Z5A20101000 | Adapter | |
| 14 | B160120090 | O-ring | |
| 15 | Z5B261020 | 6.4 high pressure hose assembly | |
| 16 | Z3B20003500 | Hose assembly | |
| 17 | Z3B20004300 | Oil input connector | |
| 18 | W150000290A | Split flange | |
| 18 | B160130560 | O-ring | |
| 19 | Z3B249001 | Lower pressure hose | |
| 20 | Z3B20004600 | Implement valve Pipe | |
| 21 | Z520520490 | Bolt | |
| 22 | Z3B249011 | High pressure hoseassembly | |
| 22 | Z610200090 | Split flange | |
| 23 | Z3B200346 | High pressure hose as. | |
| 24 | Z610200100 | Split flange | |
| 25 | Z3A20006700 | Lift cylinderhigh pressure oil pipe | |
| 26 | Z3B20008800 | Right Lift cylinder Pipe | |
| 27 | Z3B20008500 | Connector | |
| 28 | Z3B20008200 | Connector | |
| 29 | Z3B20014000 | Right Lift cylinder Pipe | |
| 30 | W050500002 | Lift cylinder | |
| 30 | B160130236 | O-ring | |
| 31 | Z3B200330 | Connector | |
| 31 | B160130224 | O-ring | |
| 32 | Z3B200334 | Connector | |
| 33 | Z3B20008400 | Connector | |
| 34 | Z3B20008300 | Connector | |
| 35 | Z3B20008900 | Lift cylinder Pipe | |
| 36 | Z3B20008700 | left Lift cylinder Pipe | |
| 37 | W42323000 | Steering cylinder | |
| 38 | B160130425 | O ring | |
| 38 | Z3B200327 | Oil back joint assembly | |
| 39 | Z3D019010 | Connector | |
| 39 | B160130280 | O-ring | |
| 40 | Z3B20006900 | High pressure hoseassembly | |
| 41 | Z3B20007100 | High pressure hose ass. | |
| 42 | Z610200060 | Split flange | |
| 43 | Z3B200340 | Pipe assembly | |
| 43 | B160130329 | O-ring | |
| 44 | Z3B200343 | Pipe AS | |
| 45 | W42055000 | Implement dispensing valve | |
| 46 | Z310100010 | Implement valve Bolt | |
| 47 | Z310100110 | Valve fixing bolt | |
| 48 | Z610200080 | Split flange | |
| 49 | W152200000 | Pressure tap |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
