Каталог запасных частей к технике: SEM636D. Pilot hydraulic system
1
1
2
2
2
2
3
4
5
6
7
7
8
9
10
11
12
12
12
12
12
12
12
12
13
14
15
16
17
18
19
20
20
20
21
21

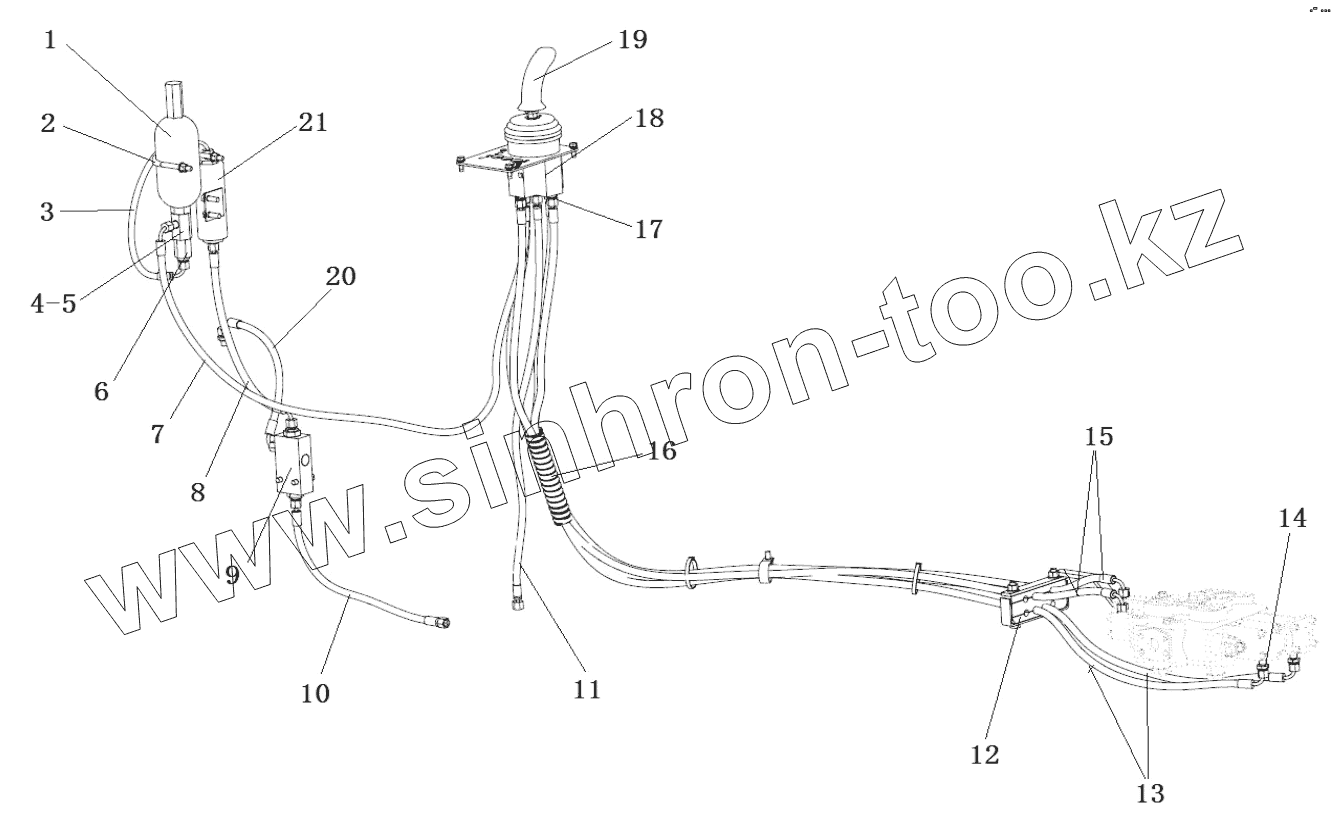

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | W110021000 | Accumulator | |
| 1 | B160120265 | O-ring | |
| 2 | B500151013 | Lock nut | |
| 2 | Z520520930 | U bolt | |
| 3 | Z5A20000100 | Pilot hose | |
| 4 | W152200000 | Pressure tap | |
| 5 | Z5B031019 | Tee connection assembly | |
| 6 | W272400010B | Check valve | |
| 7 | Z3A20001600 | Joint | |
| 7 | Z5B031015 | Pilot hose assembly | |
| 8 | Z5B250003 | Pipe | |
| 9 | W42054000 | Selection valve | |
| 10 | Z3B204013 | Hose | |
| 11 | Z1B213001 | Pipe | |
| 12 | Z3D209001 | Support | |
| 12 | Z520520810 | Sleeve | |
| 12 | Z520520800 | Bracket | |
| 12 | Z3B251003 | Pilot pipe clamp | |
| 13 | Z520520950 | Hose | |
| 14 | Z520520920 | Connetion fitting | |
| 15 | 5209943 | Pipe | |
| 16 | Z5A052008 | Hose cover | |
| 17 | Z3A20004500 | Joint | |
| 18 | W271400000A | Pilot valve | |
| 19 | W42133000 | Handle assemble | |
| 20 | B160120112 | O- ring | |
| 20 | Z3D209004 | Pipe | |
| 20 | Z6B01800500 | Connection fitting | |
| 21 | W110015500A | Pressure filter | |
| 21 | W110015510A | Filter |
