Каталог запасных частей к технике: SEM636D. Cab

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

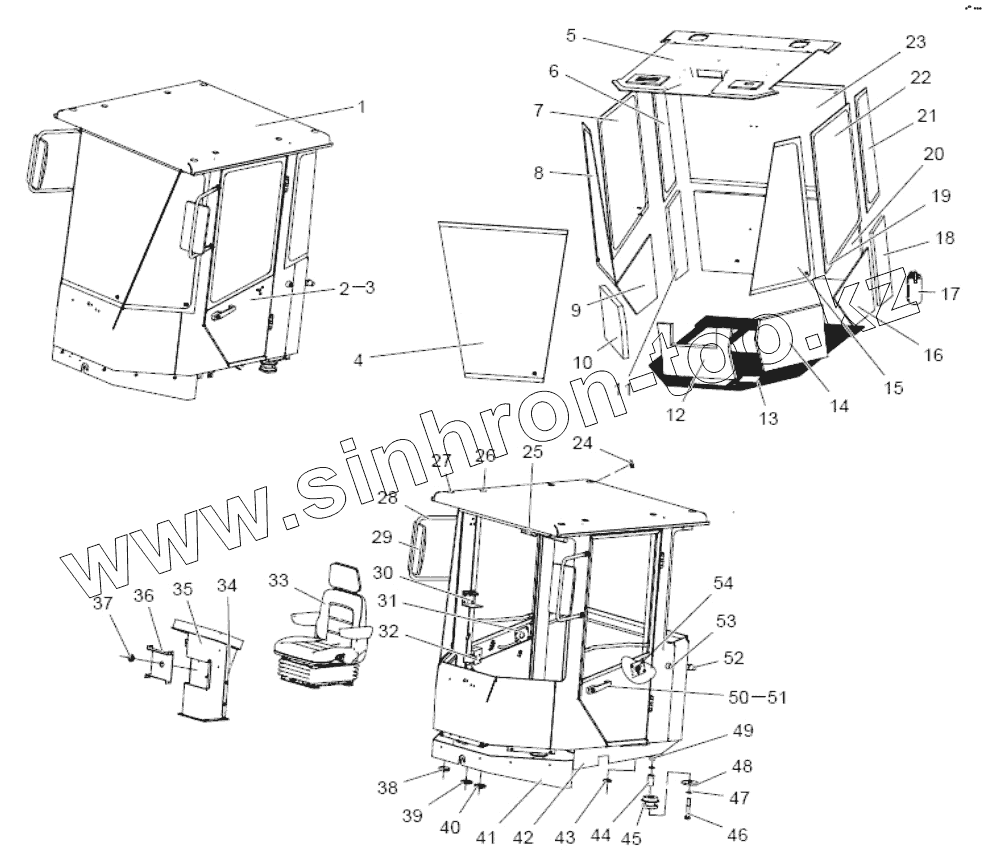

Позиция на иллюстрации Заводской номер детали Название детали
1 NZ3A0040020030 Cab assembly
2 NZ3A0040260010 Left hand door group
3 NZ3A0040200010 Right hangd door group
4 Z3A00400500 Front glass
5 Z3A00404200 Headliner
6 Z3A00425400 Rears right glass
7 Z3A00404100 Right door glass
8 Z3A00425300 Right&front glass
9 Z3A00403800 Right door foam
10 Z3A00403100 Front&right foam
11 Z3A00403400 Right&rear foam
12 Z3A00403000 Front foam
13 Z5B729001 Rubber floor
14 Z3A00402700 Front &left foam
15 Z3A00400400 Left&front glass
16 Z3A00401300 Left door foam
17 W110022310 Fire extinguisher
18 Z3A00403600 Left&rear foam
19 Z010201030 Door seal
20 Z3A00403500 Rear foam
21 Z3A00400700 Left&rear glass
22 Z3A00404300 Left door glass
23 Z3A00400600 Rear glass
24 Z3A00402400 Seal sleeve
25 W101400000A Inner mirror
26 Z3A00401100 Rubber cover i
27 Z3A00401800 Rubber cover
28 Z3A00413200 Blacket of rearview mirror
29 W110000370 Rearview mirror
30 W101800000A Cup hold
31 Z3A00425900 Cover
32 Z3A00425600 Latch blacket
33 W102000000A Seat
34 Z3A00422600 Pedestal cover
35 Z3A00421600 Pedestal
36 Z3A00423600 Cover
37 Z3A00422300 Gear lever seal sleeve
38 Z3A00403300 Rubber cover iii
39 Z320050080 Grommet
40 Z3A00422100 Steering column grommet
41 Z3A00400100 Front guard
42 Z3A00401900 Side guard
43 Z3A00402100 Seal sleeve II
44 Z3A00420000 Lining
45 W105000000A Cab mount
46 B040810037 Bolt
47 B060412003 Washer
48 Z3A00420100 Flat washer
49 B050332018 Nut
50 W110022600 Left lock
51 W110022610 Right lock
52 Z3A00403900 Buffer
53 W102200000A Door hold back
54 Z3A00429400 Left door lock cover plate
