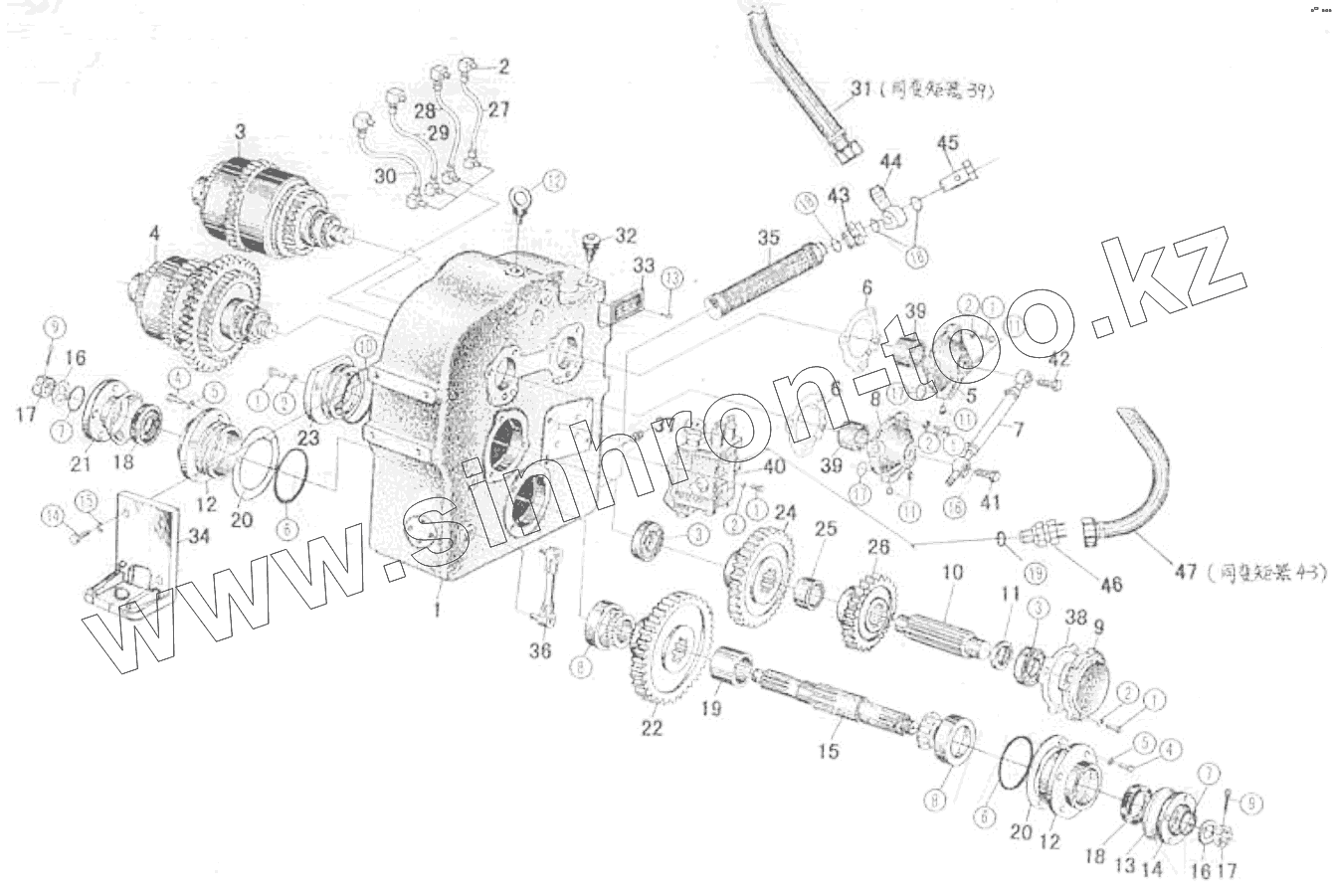

Каталог запасных частей к технике: SEM616B. Transmission Assembly
1
2
3
4
5
6
6
7
8
9
10
11
12
12
13
14
15
16
16
17
17
18
18
19
20
20
21
22
23
24
25
26
27
28
29
30
32
33
34
35
36
37
38
39
39
40
41
42
43
44
45
46
47
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | W030100400 | Gearbox housing | |
| 2 | W030100540 | Right angle adapter | |
| 3 | W030100010 | Forward clutch shaft assembly | |
| 4 | W030100020 | Reverse clutch shaft assembly | |
| 5 | W030100415 | Oil inlet cap assembly | |
| 6 | W030103160 | Inlet cover gasket | |
| 7 | W030124600 | lubricating vitta assembly | |
| 8 | W030100416 | Oil inlet cap assembly | |
| 9 | W030100470 | Countershaft end cap | |
| 10 | W030100300 | Countershaft | |
| 11 | W030103180 | Retainer | |
| 12 | W030100810 | Bearing carrier | |
| 13 | W030100490 | dust boot | |
| 14 | W030100150 | Front output flange | |
| 15 | W030100380 | Output shaft | |
| 16 | W030103040 | Washer | |
| 17 | W030103050 | Hex nut | |
| 18 | B160240045 | Sealing | |
| 19 | W030100360 | Spacer sleeve | |
| 20 | W030103140 | Adjustment shim | |
| 21 | W030100770 | Rear output flange | |
| 22 | W030100260 | Output gear | |
| 23 | W030100230 | Countershaft end cap | |
| 24 | W030100320 | Countershaft bull gear | |
| 25 | W030100412 | Spacer ring | |
| 26 | W030100300 | Countershaft | |
| 27 | W030100840 | Clutch oil line | |
| 28 | W030100850 | Clutch oil line | |
| 29 | W030100860 | Clutch oil line | |
| 30 | W030100870 | Clutch oil line | |
| 32 | Z610240990 | Respirator assembly | |
| 33 | W030125200 | Gearbox namelabel | |
| 34 | W030103060 | Gearbox support | |
| 35 | W030100530 | Oil screen | |
| 36 | W110001540 | Oil indicator | |
| 37 | W030125400 | Magnetic oil plug | |
| 38 | W030103160 | Inlet cover gasket | |
| 39 | W030100120 | Sleeve | |
| 40 | W110000771 | Gear box control valve | |
| 41 | W030125500 | Hollow bolt | |
| 42 | W030125600 | Hollow bolt | |
| 43 | W030125700 | Pipe adapter | |
| 44 | W030125800 | Ball adapter | |
| 45 | W030125900 | Hollow bolt | |
| 46 | W030126000 | Gear box control valve connection fitting | |
| 47 | W030126100 | High pressure oil pipe assembly | |
| (1) | B040911030 | Bolt | |
| (2) | B060111003 | Lock washer | |
| (3) | B120134023 | Bearing | |
| (4) | B040911030 | Bolt | |
| (5) | B060111203 | Lock washer | |
| (6) | B160131030 | O-ring | |
| (7) | W030126200 | O-ring | |
| (8) | W030100520 | Bearing | |
| (9) | B080210021 | cotter pin | |
| (10) | B160120978 | O-ring | |
| (11) | W030102030 | plug | |
| (12) | W030126300 | eye bolt | |
| (13) | W030126400 | Rivet | |
| (14) | B040912040 | Bolt | |
| (15) | B060112005 | Washer | |
| (16) | W030126500 | Combine gasket | |
| (17) | B160120106 | O-ring | |
| (18) | W030126600 | Combine gasket | |
| (19) | W030126700 | Combine gasket |
